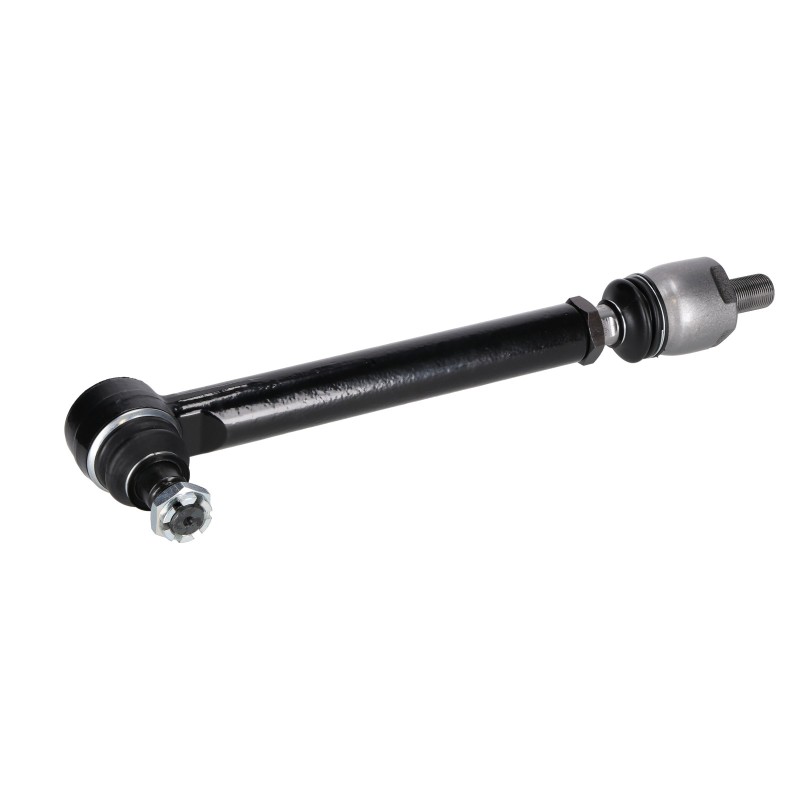

Link trackrod suitable for the JCB 3CX backhoe loader
GX-AFTER

Link trackrod suitable for the JCB 3CX backhoe loader

Catalog number:SKX860122G Nr OEM:126/02253 Manufacturer:GX-AFTER
Add a review

Steering Tie Rod 440mm (Thread M24) suitable for JCB 3CX - 126/02253

Technical Specification and Compatibility

Robust 126/02253 steering rod from the GX-AFTER offer. This is a complete linkage component (Tie Rod type), designed for JCB 3CX backhoe loaders. It features a total length of 440 mm and a solid M24x1.5 adjustment thread. This part is responsible for transmitting force from the cylinder to the wheel knuckles, ensuring maneuvering precision.

Part Number: 126/02253
Alternative Numbers: 335/Y6895, 126/01946
Type: Steering Rod / Tie Rod
Total Length: 440 mm
Tube Diameter (Shaft): 36 mm
Threads: M24x1.5
Cone Dimensions: 23.50 mm / 26.50 mm

GX-AFTER is the smart choice for your machine. We provide premium class replacements that combine material durability with manufacturing precision, guaranteeing safety and long service life of the undercarriage system.

Features of GX-AFTER 126/02253 Rod

Optimal Geometry: The 440 mm length is dedicated to specific JCB axle configurations, ensuring the correct toe-in adjustment range.
Precise Cones: 23.5/26.5 mm ends guarantee perfect, play-free seating in the knuckle and cylinder sockets.
Structural Stiffness: The 36 mm diameter tube is resistant to compressive and bending forces occurring during work in difficult terrain.
Adjustment Thread: M24x1.5 thread allows for smooth and precise wheel alignment correction, crucial for reducing tire wear.

Application in JCB machinery

Brand Machine Model
JCB 3CX (check 440mm length)

Steering rods in JCB machines come in many lengths. Verification of the old part dimension is necessary before ordering.

Related Parts and Hardware

To install the rod, castle nuts with split pins or self-locking nuts are required (depending on version). When replacing the rod, it is also worth checking the condition of the steering cylinder seals.

⚠️ Safety Warning

Play in steering rods causes the machine to "wander" on the road, creating a huge danger in traffic. Rod breakage while driving means total loss of steering control. Regularly check the condition of joints.

Part Role in the Machine and Failure Diagnostics

Rod 126/02253 is the actuating element of the steering system, transferring movement from the hydraulic cylinder to the wheel knuckle.

  • › Knocking when turning (wear of ball studs in ends).
  • › Incorrect wheel alignment (uneven tire tread wear).
  • › Delayed response to steering wheel movement (dead zone).
  • › Mechanical damage (bending) after hitting an obstacle.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Length Measurement: This rod is 440 mm. JCB machines also use other lengths (e.g., 355mm, 395mm). Measure the old component from the center of the head to the end of the thread or total length.
  2. Socket Cleaning: Cones in the knuckle and cylinder must be clean and dry (no grease) so the cone seats correctly and doesn't rotate during tightening.
  3. Alignment: After replacing the rod, verify and adjust the front wheel toe-in.

Frequently Asked Questions (FAQ)

What wrench is needed for M24 thread?

Usually, the nut on M24x1.5 thread requires a 30mm, 32mm, or 36mm wrench, depending on the nut standard. It's worth having a set of large open-end wrenches.

Is the rod adjustable?

Yes, the rod has a threaded end, which allows for precise length adjustment to set the toe-in.

Is it left or right handed?

In many JCB models, these rods are used symmetrically on both sides, but it depends on the specific axle and cylinder type. Check in the catalog by VIN number.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX860122G
126/02253
4.10 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
TELESCOPIC HANDLER
OEM NUMBERS
126/02253 / 335/Y6895 / 126/01946

Specific References

MPN
126/02253
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Link trackrod suitable for the JCB 3CX backhoe loader

Catalog number: SKX860122G
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

227.55 zł

net price
185,00 zł
Available in large quantity Temporarily unavailable
185,00 zł
net price

227.55 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 19 points, it gives you 7.60 zł
  • Lowest price from 30 days before the discount: 227.55 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    TELESCOPIC HANDLER
    OEM NUMBERS
    126/02253 / 335/Y6895 / 126/01946
