Joint ball track rod suitable for JCB 3CX
GOLDEN EAGLE

Joint ball track rod suitable for JCB 3CX

Catalog number:SKX860328G Nr OEM:331/14861 Manufacturer:GOLDEN EAGLE
Add a review

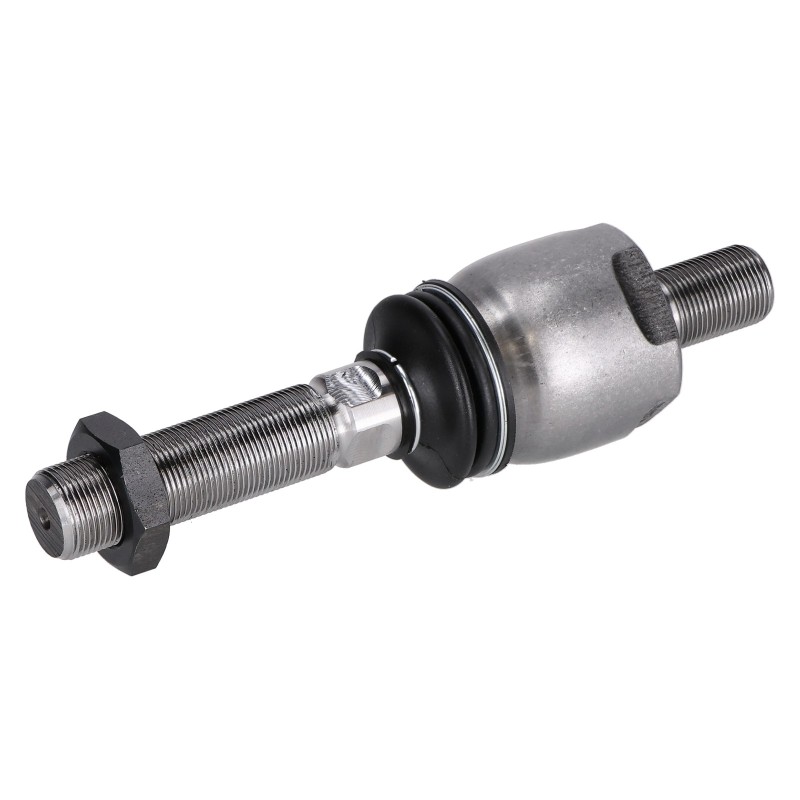

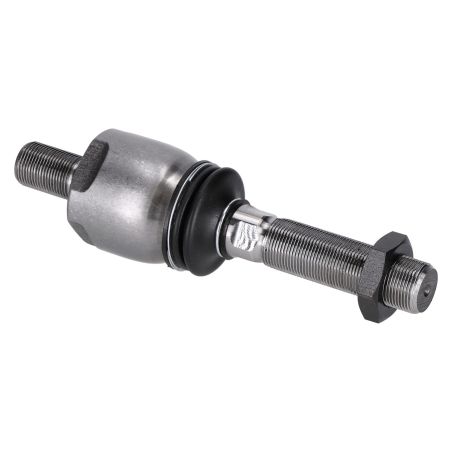

Steering Rod End (Axial Joint) M24/M22 suitable for JCB 3CX - 331/14861

Technical Specification and Compatibility

Precision 331/14861 axial joint (inner tie rod) by GX-AFTER (manufacturer: Golden Eagle). This is a specialized steering component, screwed directly into the steering cylinder rod. Dedicated to JCB 3CX backhoe loaders. It features two external threads: M24x1.5 (cylinder side) and M22x1.5 (outer rod side). The total length of the component is 210 mm.

Part Number: 331/14861
Component Type: Axial Joint / Inner Tie Rod
Total Length: 210 mm
Thread 1 (Cylinder side): M24x1.5 (External)
Thread 2 (Rod side): M22x1.5 (External)
Manufacturer: GX-AFTER (Golden Eagle)

GX-AFTER (Golden Eagle) stands for top quality in suspension and steering components. The use of forged housings and hardened joint balls ensures exceptional resistance to wear and play, even under intensive use in difficult terrain.

Features of 331/14861 Product

Dual Threading: Precisely cut M24 and M22 threads ensure a secure connection to the cylinder and the rest of the rod, eliminating the risk of stripping.
Ball Joint: The internal ball joint allows the steering system to work freely in multiple planes, compensating for suspension movements.
Material Strength: Heat-treated alloy steel guarantees resistance to tensile and compressive forces acting on the steering system.
Protection: Corrosion-protected surface, which is crucial for a component working low to the ground.

Application in JCB machinery

Machine Type Model
Backhoe Loaders 3CX (models with double-acting steering cylinder in the axle)

Application depends on the type of drive axle. Be sure to check thread diameters (M24/M22) before purchasing.

Related Parts and Hardware

This component connects directly to the steering cylinder. On the other side, it screws into the rod tube or directly connects to the outer tie rod end. It is worth checking the condition of the rubber boots (gaiters) protecting this joint.

⚠️ Safety Warning

Play in the axial joint is difficult to detect without jacking up the machine, but leads to imprecise handling and tire destruction. Failure of this component results in total loss of steering control on one wheel.

Part Role in the Machine and Failure Diagnostics

This element is a direct extension of the cylinder rod, allowing angular movement of the steering rod relative to the rigid axle.

  • › Knocking inside the axle/cylinder area (ball joint play).
  • › Cylinder oil leak (often mistaken for play; seal damage may result from worn rod runout).
  • › Steering wheel play (cumulative system play).
  • › Damaged adjustment thread (alignment issues).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Thread Verification: This model has an unusual M24 and M22 combination. Ensure your outer tie rod end has an M22 internal thread and the cylinder has M24.
  2. Securing: The thread screwed into the cylinder (M24) should be secured with threadlocker (e.g., Loctite) to prevent loosening during operation.
  3. Lock Nut: After alignment, securely tighten the lock nut on the M22 thread.

Frequently Asked Questions (FAQ)

Is this an outer tie rod end?

No. This is an axial joint (inner tie rod) that goes directly into the cylinder. The outer tie rod end (at the wheel) is a different part.

What is the total length?

The total length of the component is 210 mm. This is a crucial dimension for part selection, as various cylinder versions exist.

Does it fit left and right sides?

Yes, typically steering cylinders in JCB axles have symmetrical outputs for rods, so the part fits both sides.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

GOLDEN EAGLE
SKX860328G
331/14861
1.36 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
331/14861

Specific References

MPN
331/14861
