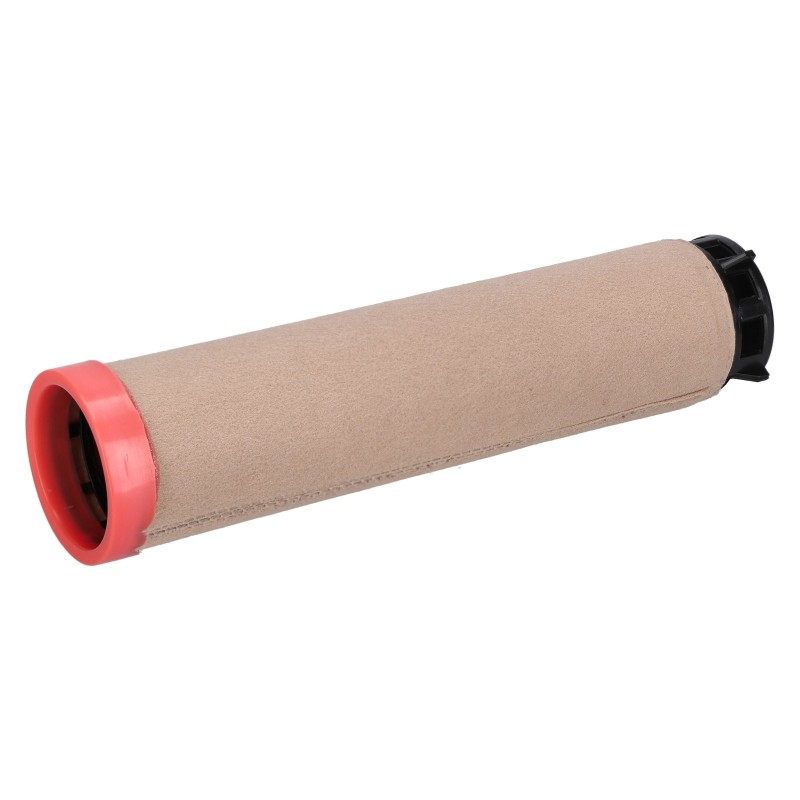

Precision 32/917805 inner air filter (safety element) by REDX. It is the second stage of filtration in the intake systems of JCB machines with Perkins and DieselMax engines. Installed inside the main filter (32/917804), it acts as the final barrier for contaminants, protecting the engine in case of outer filter failure or during its replacement.
REDX filters are designed to meet rigorous airflow and filtration efficiency standards required by modern diesel engines, ensuring their long and trouble-free operation.
| Machine Type | Models |
|---|---|
| Telehandlers (Loadall) | 535-125 HiViZ (USA), 535-140 HiViZ (USA), 5.5-21 / 555-210R, 5.5-26 / 555-260R, 506-23TC, 509-23TC, 510-42, 510-44S TC, 510-55 TC, 520 LE, 520S LE, 526, 526 LE, 526-56, 526S, 526S LE, 527-58 FS, 527-58, 528-70, 528S, 530, 530 FS PLUS, 530 SUPER, 530S XL, 531-70, 531-70 SWAY, 532, 532H, 532-60 (532X60), 532-70 (532X70AG), 533-105, 535, 535 FS SUPER, 535 TELEBAT, 535-125, 535-140, 535-60, 535-95, 536-60, 536-70, 536-95, 538-60, 538-70, 540-140, 540-170, 540-180R, 540-200, 540V140, 541-70, 542-70, 550-140, 550-170, 550-80, 560-80, 515-40 |
| Site Dumpers | 1T-1 Hydrostatic, 1T Electric, 1T-2S5, 3FTH, 3FTH-2S5, 3STH, 3STH-2S5, 6T-1, 6FT-2S5, 6ST-2S5, 7T-1, 7FT-2S5, 9T-1, 9FT-2S5 |
| Backhoe Loaders | 1CX, 1CX SERVO, 1CX HI FLOW, 1CX TRACKED, 2CX, 2CX AIRMASTER, 2CX LOADER, 2CXS, 2CX-SM, MIDI CX, 3CX COMPACT (10, 12), 3CX SERVO (14H5WA, 14L5WA), 3CX (NON SERVO), 4CX SERVO, 4CX (NON SERVO), 5CX SERVO, 5CX (NON SERVO) - detailed: 3CX 14H5WA, 3CX 14L5WA, 4CX 14H5WA, 5CX 15H5WA, Centremount, Sideshift |
| Wheel Loaders | 403, 403 Stage V, 403SV A, 406, 406 SV, 406 T4, 407, 407 SV, 407 T4, 409, 409 SV, 409 T4, TM180, TM220, TM310, TM320, TM420, TM WASTEMASTER |
| Military Products | 8018 CTSM, 436eM, 535-95, 541-70M, HMRTF, VM115 ADF |
| Rough Terrain Forklifts (RTFL) | 926 (2WD/4WD, Tier 2/4, SV), 930 (2WD/4WD, Tier 2/4, SV), 940 (2WD/4WD, Tier 2/4, SV), 945-4, 950-4WD |
| Wheeled Excavators | HYDRADIG 110W (Wastemaster, Triple Articulated Boom, T4 Final, SV), JS130 WHEELED, JS145 WHEELED, JS160 WHEELED, JS175 WHEELED, JS200 WHEELED, JS20 MH |
| Tracked Excavators (JS) | 140X, 150X, JS110, JS115, JS130, JS131, JS140, JS145, JS160, JS180, JS190, JS200, JS210, JS220, JS235, JS240, JS260, JS290, JS330, JS360, JS460, JS81, JZ140, JZ235, JZ70, JZ141 |
| Mini Excavators | 100C-1, 100C-2, 15C-1, 16C-1, 18Z-1, 19C-1, 25Z-1, 26C-1, 35Z, 36C-1, 37C, 48Z-1, 50Z-1, 51R-1, 55Z-1, 56Z-2, 57C-1, 60C-2, 65R-1, 67C-1, 85Z-1, 86C-1, 90Z-1, 8010, 8014, 8016, 8018, 8020, 8025, 8026, 8029, 8030, 8035, 8040, 8045, 8050, 8055, 8060, 8065, 8080, 8085 |
| Compaction Equipment (Vibromax VM) | JCB116, VM117, VM137, VM115, VM46, VM75, VMT860 |
| Generators & Lighting Towers | G50R, G55, G60RX, G61RX, G63, G65QX, G65X, G66QX, G80R, G80RX, G88, G90QX, G91QX |
| Engines (JCB) | Series 320/40xxx, 320/50xxx (Dressed Dieselmax, ecoMax) |
Filter fits a very wide range of machines. Dimensions: H 359mm, OD 88mm, ID 71.5mm. This is an inner element.
Filter 32/917805 is the inner (safety) filter. It always works with the outer (primary) filter number 32/917804. We recommend replacing both filters simultaneously in case of heavy safety element contamination.
The inner filter (safety) must not be cleaned or blown out. If it is dirty, it means the main filter has let contaminants through (is damaged or poorly installed). In this case, you must replace both filters with new ones immediately.
The safety filter protects the engine in emergency situations.
📞 Can't find the part you're looking for?
No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!
Because its main role is to secure the engine in case of failure (e.g., rupture) of the main filter. Under normal conditions, this filter remains clean for a very long time.
Absolutely not. The filter material in the safety filter is very dense and delicate. Attempting to wash or blow it out will destroy its structure, rendering it useless.
A diesel engine needs about 10,000 liters of air to burn 1 liter of fuel. In a dusty construction environment, without effective filters, the engine could suck in enough dust in an hour to seize up within a single day of work!
Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.
