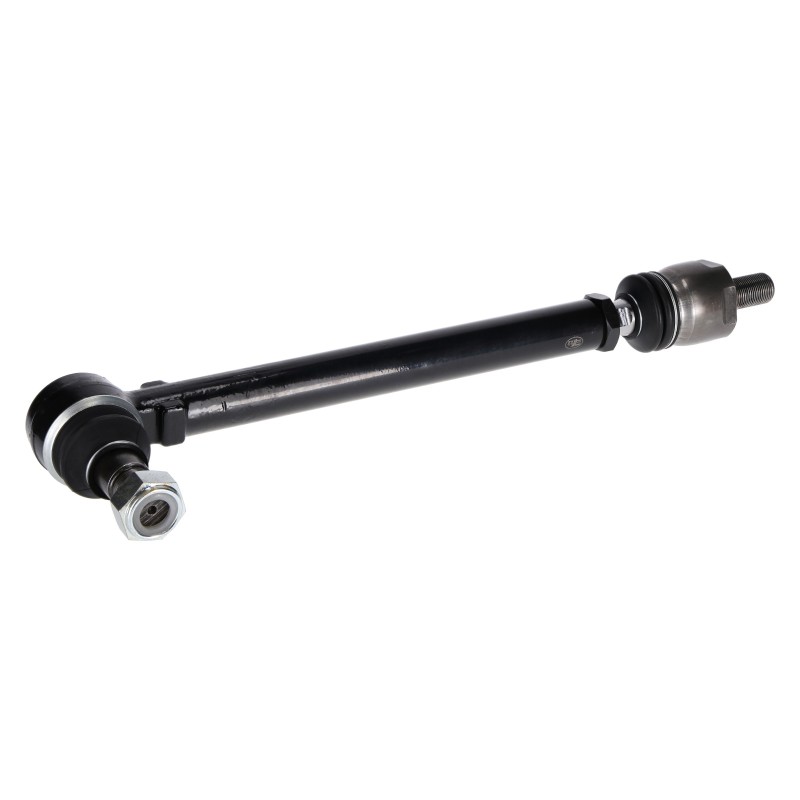

Link trackrod suitable for CAT TH220B / TH330B
TORS

Link trackrod suitable for CAT TH220B / TH330B

Catalog number:SKX860258T Nr OEM:209-7480 Manufacturer:TORS
Add a review

Steering Tie Rod (498mm / M24) suitable for CAT TH220B TH330B - 2097480

Technical Specification and Compatibility

Robust 2097480 steering tie rod from the TORS brand range. This is a connecting component (Tie Rod type), designed for Caterpillar (CAT) TH series telehandlers. The component features a total length of 498 mm and a solid M24x1.5 adjustment thread. The construction based on a 34 mm diameter tube ensures optimal rigidity while maintaining appropriate weight.

Part Number: 2097480
Alternative Number: 3207288
Type: Complete Steering Rod
Total Length: 498 mm
Tube Diameter (Shaft): 34 mm
Threads: M24x1.5
Cone Dimensions: 27.10 mm / 30.80 mm

TORS products guarantee reliability in steering and drive systems. Reinforced construction and precision manufacturing ensure safety and precise handling of heavy construction machinery.

Features of TORS 2097480 Rod

Dedicated Geometry: Length of 498 mm is strictly matched to the steering kinematics of CAT B and C series telehandlers.
Precise Cones: Cone dimensions (27.1/30.8 mm) guarantee secure, play-free seating in the knuckle and cylinder.
Durable Shaft: The 34 mm diameter tube made of alloy steel is resistant to bending forces occurring during work in rough terrain.
Thread Protection: M24x1.5 thread allows for smooth toe-in adjustment and secure locking with nuts.

Application in CAT machinery

Machine Type Models / Series
Telehandlers TH220B, TH330B, TH336C, TH337C, TH406C, TH407C, TH414C, TH417C, TH514C

The list above is for reference. It is crucial to verify the length (498 mm) and cone dimensions before purchasing.

Related Parts and Hardware

To install the rod, castle nuts with split pins or self-locking nuts are necessary for the ball joints. It is also worth checking the condition of the steering cylinder seals.

⚠️ Safety Warning

Play in the steering rods of a telehandler can lead to machine instability, especially when lifting loads at height. Regularly check the condition of the joints.

Part Role in the Machine and Failure Diagnostics

Rod 2097480 transmits motion from the hydraulic cylinder to the wheel knuckle, enabling precise maneuvering of the loader.

  • › Knocking when turning (worn ball joints).
  • › Uneven tire wear (incorrect alignment).
  • › Delayed response to steering wheel movement (dead zone).
  • › Mechanical tube bending after hitting an obstacle.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Length Measurement: This rod is 498 mm. CAT machines use various rod lengths depending on the axle. Measure the old component before ordering.
  2. Socket Cleanliness: Cones in the knuckle and cylinder must be clean and dry (no grease) before assembly to ensure proper locking.
  3. Alignment Adjustment: After every rod replacement, inspection and adjustment of the front wheel toe-in is necessary.

Frequently Asked Questions (FAQ)

Is the rod adjustable?

Yes, the rod has a threaded end (M24) that allows length adjustment to set the toe-in.

Why are two cone sizes listed?

Dimensions 27.10 mm and 30.80 mm refer to the cone diameters at the two ends of the rod (at the cylinder and knuckle). They may differ.

Does it fit left and right sides?

In most CAT telehandlers, the steering system is symmetrical, so the rod fits both sides. However, it is worth checking in the parts catalog.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX860258T
209-7480
4.58 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
TELESCOPIC HANDLER
OEM NUMBERS
2097480 / 3207288

Specific References

MPN
209-7480
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Link trackrod suitable for CAT TH220B / TH330B

Catalog number: SKX860258T
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21

Responsible person

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21
gross price

510.45 zł

net price
415,00 zł
Temporarily unavailable
415,00 zł
net price

510.45 zł

gross price
  • You will receive 42 points, it gives you 16.80 zł
  • Lowest price from 30 days before the discount: 510.45 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    MACHINE TYPE
    TELESCOPIC HANDLER
    OEM NUMBERS
    2097480 / 3207288
