Steering link suitable for MANITOU
TORS

Steering link suitable for MANITOU

Catalog number:219949T Nr OEM:219949 Manufacturer:TORS
Add a review

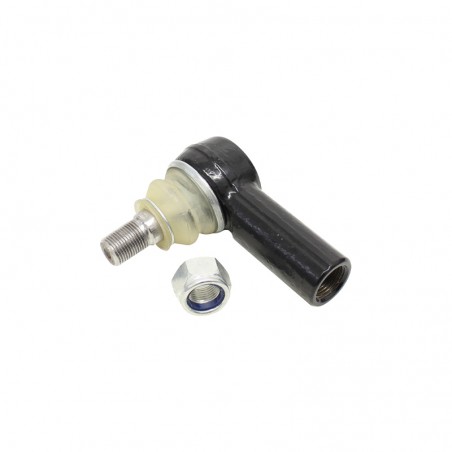

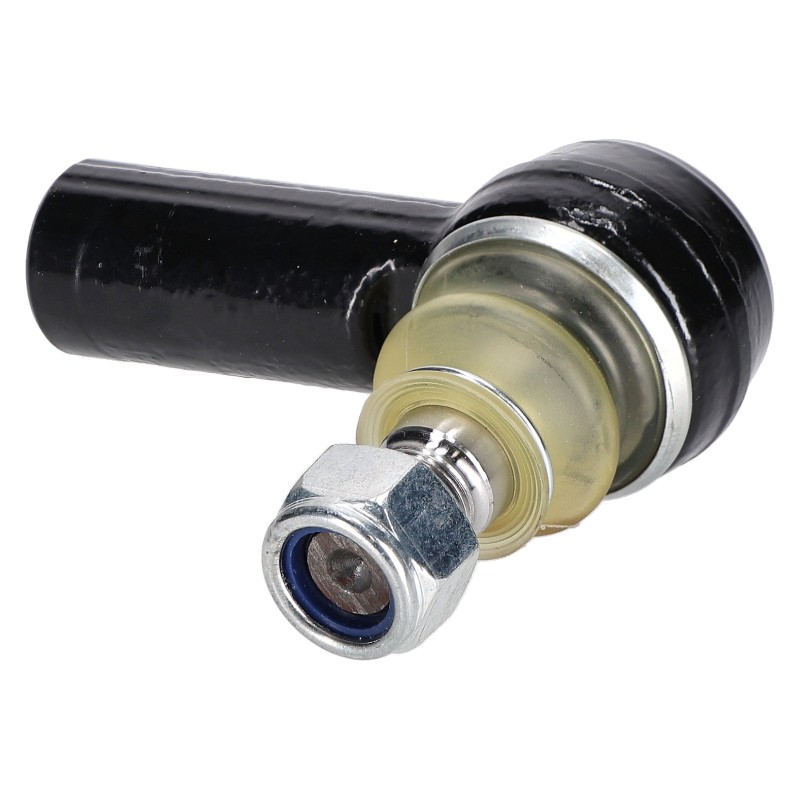

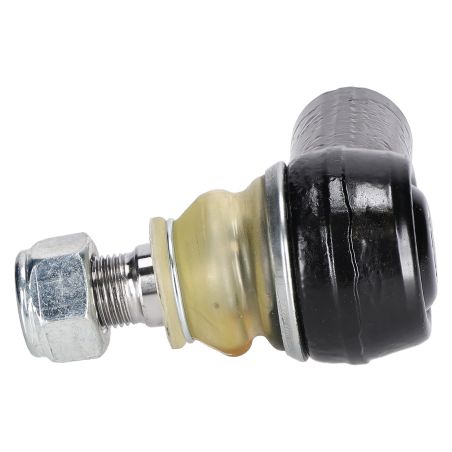

Steering Tie Rod End for Manitou (Knuckle side) - 219949

Technical Specification and Compatibility

Steering tie rod end with part number 219949 from the TORS offer. This is a component mounted on the wheel knuckle side in MANITOU machines (telehandlers, forklifts). The end features a specific W7/8"x14G (right-hand) inch thread and a precise mounting cone. The total length of the element is 94 mm.

Part Number: 219949
Component Type: Tie Rod End
Location: Steering Knuckle Side
Length: 94 mm
Thread: W7/8"x14G (Whitworth)
Thread Direction: Right Hand (RHT)
Cone Dimensions: 20.00 mm / 22.25 mm
Manufacturer: TORS

TORS steering components are synonymous with durability. The use of hardened ball studs and high-quality rubber boots ensures a long lifespan in difficult construction conditions (dust, mud, water).

Features of TORS 219949 End

Inch Thread: The unusual Whitworth thread (W7/8") is characteristic of some Manitou models. Precise thread manufacturing ensures easy assembly on the axial rod.
Precise Cone: Cone dimensions (20.00 mm at top / 22.25 mm at base) guarantee a perfect fit to the socket in the steering knuckle with no play.
Solid Construction: The 31 mm diameter body is resistant to cracks and deformation under torsional forces.
Joint Protection: A tight rubber boot keeps grease inside the joint, protecting it from external contaminants.

Application in MANITOU machinery

Brand Machine Type
MANITOU Telehandlers, Forklifts - models with inch thread

The end fits selected models. Before purchasing, be sure to check the thread type (W7/8" inch) and cone dimensions.

Related Parts and Hardware

The end works with the axial rod (often part number 224074 or similar). When replacing, we recommend checking the condition of the knuckle and using a new castle nut and cotter pin.

⚠️ Safety Warning

Play in the steering tie rod end causes unstable machine handling ("wandering") and accelerated tire wear. Shearing of the end while driving threatens a complete loss of steering control.

Part Role in the Machine and Failure Diagnostics

End 219949 is the element connecting the rod to the wheel hub.

  • › Knocking when turning (worn ball stud).
  • › Tire tread shearing (bad alignment).
  • › Delayed response to steering movement (play in the system).
  • › Cracked rubber boot (grease leak).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Thread Verification: This is an end with a W7/8" thread. Manitou machines also have ends with metric threads (e.g., M22, M24). Trying to screw in the wrong thread will destroy the rod.
  2. Cone Mounting: The socket in the knuckle must be clean and dry. Do not grease the cone – it must be seated "dry".
  3. Alignment: After replacing the end, wheel alignment must be re-adjusted by measuring the distance between the rims at the front and rear of the axle.

Technical FAQ and Trivia

Is this a left or right thread?

Model 219949 has a RIGHT (RHT) thread. In the steering system, there is usually a pair: one end with a right thread, the other with a left one, allowing for length adjustment by rotating the rod.

How to measure the cone?

Measure the cone diameter at the narrowest point (just by the stud thread) - it should be approx. 20 mm, and at the widest point (by the rubber) - it should be approx. 22.25 mm.

Steering mode trivia

Manitou telehandlers often operate in "Crab Steer" mode, where all wheels are turned in the same direction. For this mode to work correctly and not destroy tires, all steering rod ends must be free of play to maintain perfect geometry.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
219949T
219949
3.00 kg

Data sheet

SUITABLE FOR
MANITOU
MACHINE TYPE
FORKLIFT
TELESCOPIC HANDLER
OEM NUMBERS
219949

Specific References

MPN
219949
