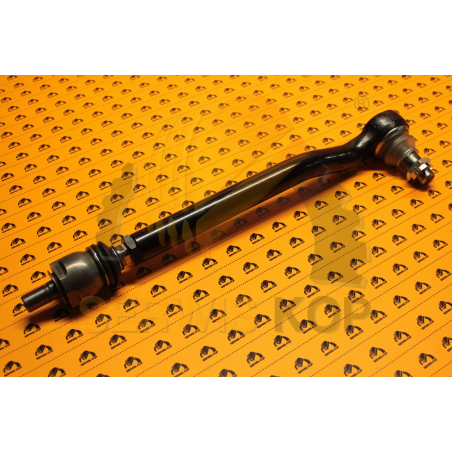

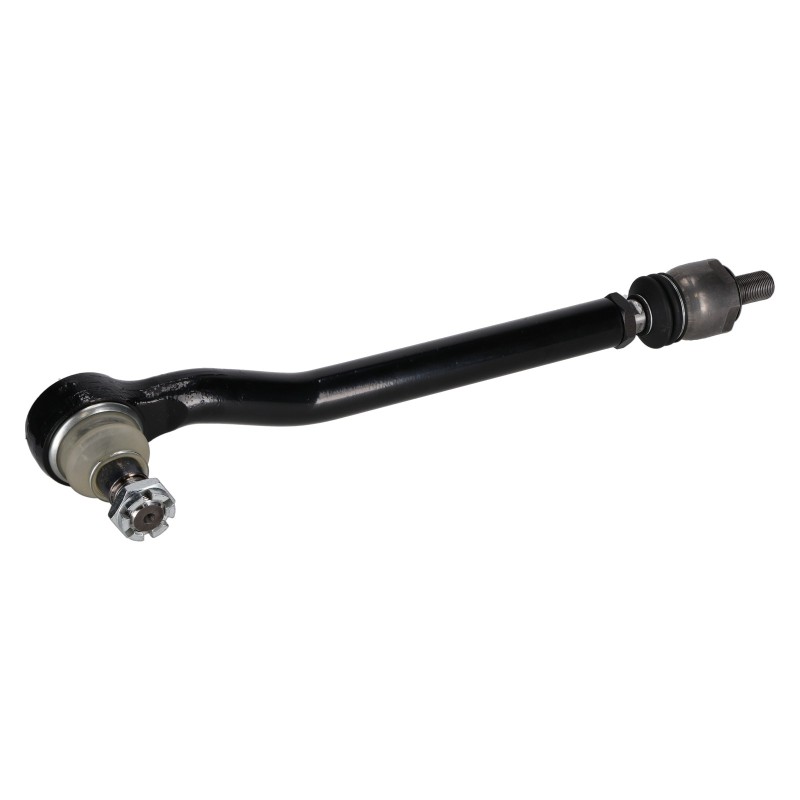

Complete steering tie rod with part number 601213 from the TORS offer. This is a massive control system component with a total length of 539.50 mm, designed for MANITOU machines (telehandlers and forklifts). The rod is distinguished by an increased shaft diameter (36 mm), which ensures exceptional resistance to bending when working in difficult terrain.
The TORS brand supplies Heavy Duty class chassis components. The solid shaft (36 mm) and precisely machined cones guarantee that the rod will withstand extreme loads occurring when turning wheels in place under load.
| Brand | Machine Type |
|---|---|
| MANITOU | Telehandlers, Forklifts |
The rod fits specific Manitou models requiring a length of 539.50 mm. Please verify dimensions carefully before purchasing.
When replacing the tie rod, it is worth checking the play on knuckles and the condition of the hydraulic cylinder. We also recommend using new safety nuts/cotter pins and lithium grease.
Driving with a damaged steering tie rod threatens loss of control over the machine. Breakage of the rod with a loaded telehandler can lead to the machine tipping over and poses a danger to the operator and bystanders.
Rod 601213 transfers cylinder movement to the steered wheels.
📞 Can't find the part you're looking for?
No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!
In rod 601213, the cone dimensions are 27.10 mm (at the base) and 30.30 mm (at the base of the second cone). Note that these values are very close to other models, so caliper measurement is key.
Model 601213 is typically a fixed-length rod of 539.50 mm. Geometry adjustment is done on another element of the system or by screwing in the ends, if the design allows.
The Manitou company was founded by Marcel Braud, who in 1958 had the idea to reverse the drive of an agricultural tractor and add a lifting mast. This innovative approach to adapting agricultural machinery for construction purposes is still visible in the company's DNA today.
Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.
Data sheet
Specific References
Manufacturer
Responsible person
See also similar products
Drazek dobrej jakosci, swietnie sie sprawdzil jako zamiennik. Fajna cena, szybka wysylka, ogolnie na plus ?






Steering link suitable for MANITOU machines
