Steering link suitable for MANITOU
TORS

Steering link suitable for MANITOU

Catalog number:601219T Nr OEM:601219 Manufacturer:TORS
Add a review

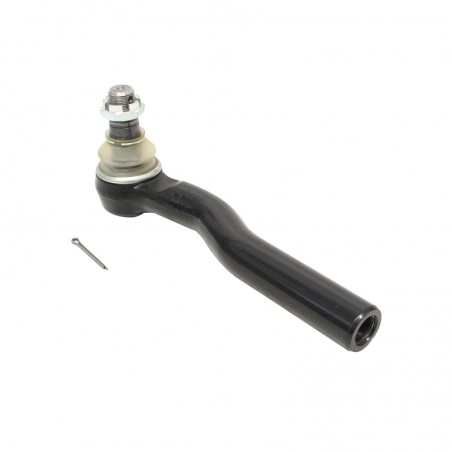

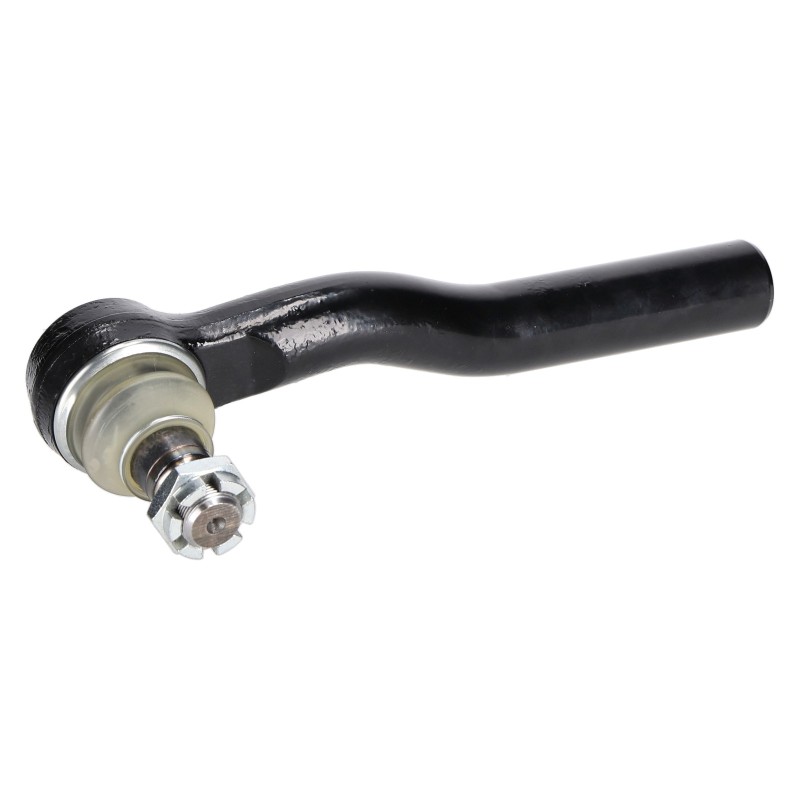

Complete Steering Tie Rod suitable for Manitou - 601219

Technical Specification and Compatibility

Complete steering tie rod with part number 601219 from the TORS offer. This is a steering system component designed for MANITOU machines (telehandlers, forklifts). The rod features a total length of 295.50 mm and a reinforced shaft with a diameter of 38 mm, ensuring resistance to extreme forces occurring while maneuvering the machine.

Part Number: 601219
Component Type: Steering Tie Rod
Total Length: 295.50 mm
Cone Dimensions: 27.10 mm / 30.30 mm
Rod Diameter: 38 mm
Thread: M24 x 1.5
Manufacturer: TORS

TORS brand products are characterized by the use of high-grade steel and precise machining of mounting cones. This ensures a perfect fit to Manitou knuckle sockets, eliminating the risk of play.

Features of TORS 601219 Tie Rod

Specific Length: The 295.50 mm dimension is strictly defined for a given axle geometry. Using a rod of a different length will prevent correct wheel alignment.
Thick Shaft: The 38 mm diameter makes this rod very resistant to bending, which can happen when a wheel hits an obstacle on a construction site.
Joint Sealing: High-quality rubber boots protect the interior of the ball studs from water, mud, and sand, maintaining lubrication for a long time.
Ready to Install: The element is supplied as a complete subassembly, which speeds up replacement and minimizes machine downtime.

Application in MANITOU machinery

Brand Machine Type
MANITOU Telehandlers, Forklifts

The rod fits selected Manitou models. We recommend verifying the length (295.50 mm) and cone dimensions before purchasing.

Related Parts and Hardware

Replacing the rod is a perfect opportunity to check for play in the knuckles and the condition of the steering cylinder. New lock nuts and pin grease may be needed for assembly.

⚠️ Safety Warning

A worn steering rod causes imprecise handling and machine "wandering" on the road. Breakage of this element while working with a heavy load can lead to loss of stability and the loader tipping over.

Part Role in the Machine and Failure Diagnostics

Rod 601219 connects the steering system with the wheels.

  • › Metallic knocking (ball joint play).
  • › Tire scrubbing (bad alignment).
  • › Delayed response to steering movement.
  • › Visible damage to rubber boots.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verification: Note the length of 295.50 mm. Manitou often has very similar rods differing slightly in length or thread direction.
  2. Mounting: Cones must be mounted dry and clean. Grease on the cone surface can cause it to be pressed in too deep and crack the socket.
  3. Alignment: If after replacing the rod the tires squeal or wear unevenly, adjust the alignment immediately.

Technical FAQ and Trivia

What are the cone dimensions?

In model 601219, the cone dimensions are 27.10 mm (at the base) and 30.30 mm (at the base of the second cone). This is a key parameter to check.

Is the rod adjustable?

This model (601219) is a fixed-length rod of 295.50 mm. In some systems, alignment adjustment is done on the cylinder or another part of the system.

MLT Series Trivia

Manitou MLT (Manitou Loader Telescopic) loaders are among the most popular machines in agriculture in Europe. Their steering systems must be extremely resistant to mud and dust, hence the use of reinforced seals in rods like this one.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
601219T
601219
3.35 kg

Data sheet

SUITABLE FOR
MANITOU
MACHINE TYPE
FORKLIFT
TELESCOPIC HANDLER
OEM NUMBERS
601219

Specific References

MPN
601219
