Steering link suitable for MANITOU
TORS

Steering link suitable for MANITOU

Catalog number:601211T Nr OEM:601211 Manufacturer:TORS
Add a review

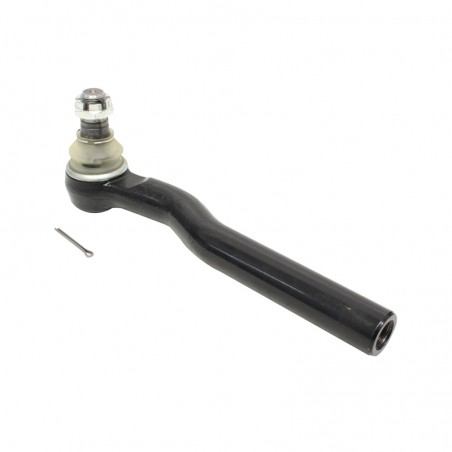

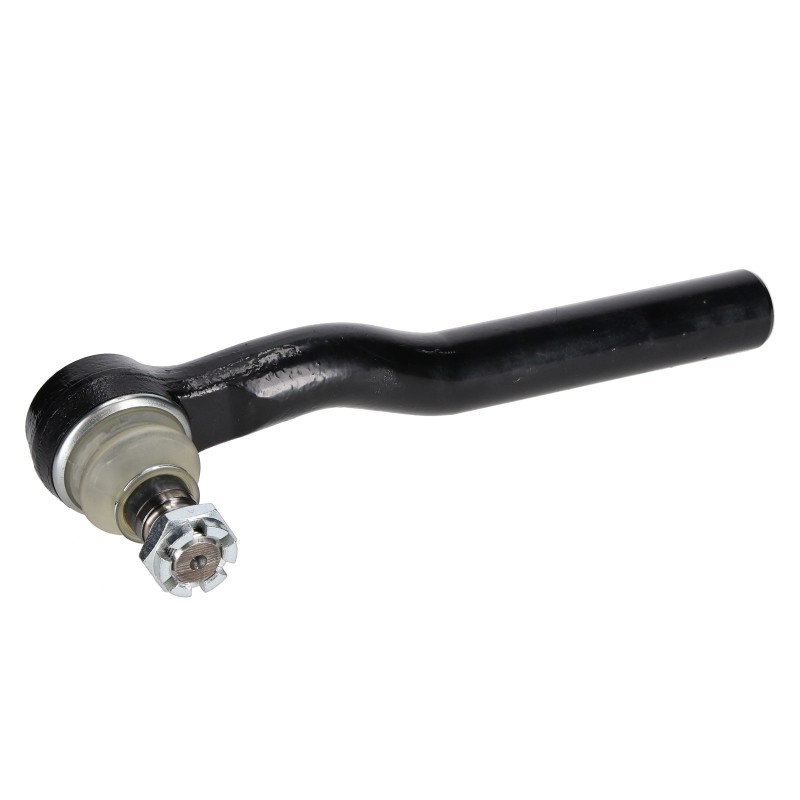

Steering Tie Rod suitable for Manitou - 601211

Technical Specification and Compatibility

Steering tie rod with part number 601211 from the TORS offer. This is a key steering system component, designed for MANITOU machines (telehandlers, forklifts). The tie rod connects the steering knuckle to the steering cylinder, allowing precise maneuvering of the machine. Made of high-quality steel, resistant to high compressive and tensile forces.

Part Number: 601211
Component Type: Steering Tie Rod
Total Length: 337.50 mm
Cone Dimensions: 27.00 mm / 30.50 mm
Tube/Rod Diameter: 38 mm
Thread: M24 x 1.5
Manufacturer: TORS

The TORS brand specializes in suspension and steering components for heavy machinery. The reinforced ball joint design in this tie rod ensures longer life even when working in difficult terrain.

Features of TORS 601211 Tie Rod

Precision Manufacturing: Perfectly calibrated cones (27mm / 30.5mm) guarantee secure seating in the steering knuckle and cylinder, eliminating mounting play.
Massive Build: The 38 mm rod diameter ensures resistance to bending that may occur when the wheel hits an obstacle.
Joint Protection: High-quality rubber boots protect the interior of the ball joints from sand, mud, and water, which is crucial for lubrication durability.
Ready to Install: The tie rod is supplied as a complete subassembly, ready to screw in, reducing machine downtime.

Application in MANITOU machinery

Brand Machine Type
MANITOU Telehandlers, Forklifts

Before purchasing, please verify the dimensions (length, cones), as there are many variants of tie rods in Manitou machines.

Related Parts and Hardware

When replacing the steering tie rod, we recommend checking the condition of the steering cylinder and knuckles. It is also worth getting fresh castle nuts and cotter pins (if required for the model) and pin grease.

⚠️ Safety Warning

A worn steering tie rod (play in joints) causes imprecise machine handling and wheel wandering. A tie rod break while driving can lead to a complete loss of vehicle control and a dangerous accident.

Part Role in the Machine and Failure Diagnostics

Rod 601211 transfers force from the steering system to the wheels.

  • › Knocking when turning (worn ball joints).
  • › Uneven tire wear (poor geometry caused by play).
  • › Delayed response to steering wheel movement.
  • › Damaged rubber boots (grease leak, sand ingress).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Alignment: After replacing the steering tie rod, be sure to check and adjust the wheel alignment. Even a minimal difference in the length of the new rod will affect the geometry.
  2. Tightening: Mounting cones must be clean and dry before tightening. Use a torque wrench according to the machine manufacturer's recommendations.
  3. Greasing: If the joints have grease nipples, grease them with fresh grease immediately after installation until grease starts to come out from under the rubber.

Technical FAQ and Trivia

How to measure the rod cone?

Measure the cone diameter at the widest point (at the base) and at the narrowest (at the thread). In this model, these are 27.00 mm and 30.50 mm respectively. These dimensions must match exactly.

Does the rod have length adjustment?

This specific model (601211) is a fixed length rod of 337.50 mm. Alignment adjustment is usually done on another element of the system or by screwing in the ends (if the rod is dismountable).

Manitou Trivia

The Manitou company was founded by Marcel Braud, who in 1958 came up with the idea to reverse the drive system in an agricultural tractor and add a lifting mast. This is how the first rough terrain forklift was created, which gave rise to the entire range of machines that this rod fits!

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
601211T
601211
3.72 kg

Data sheet

SUITABLE FOR
MANITOU
MACHINE TYPE
FORKLIFT
TELESCOPIC HANDLER
OEM NUMBERS
601211

Specific References

MPN
601211
