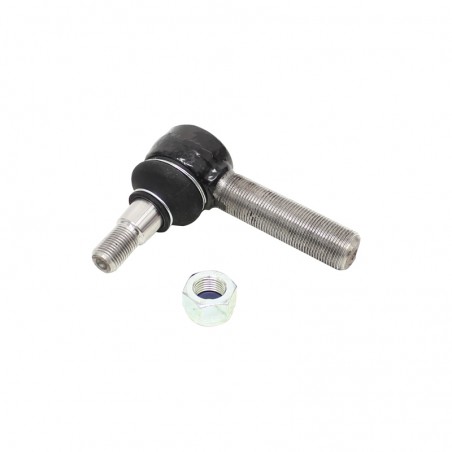

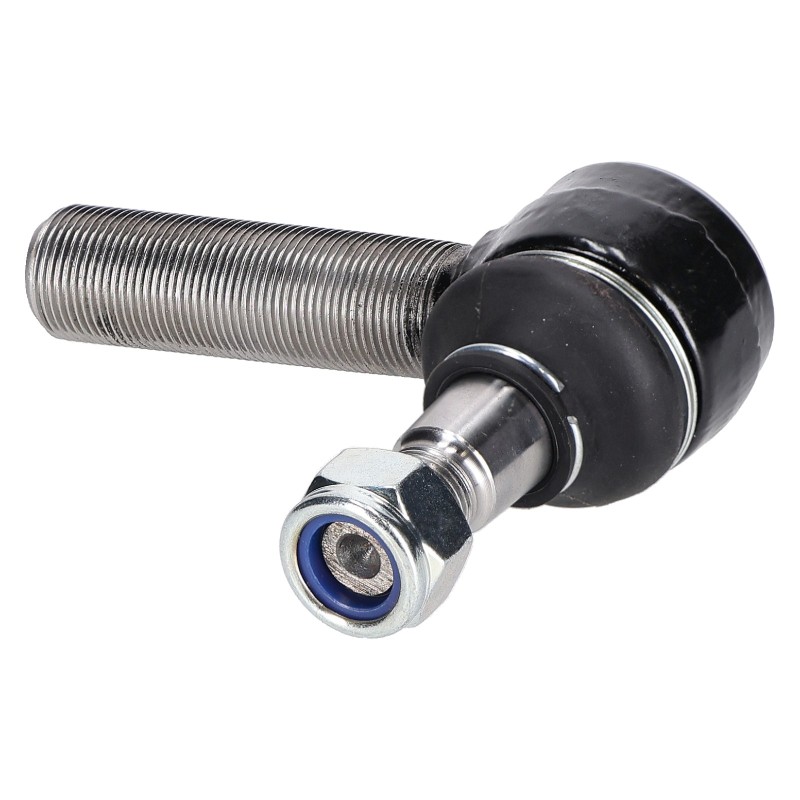

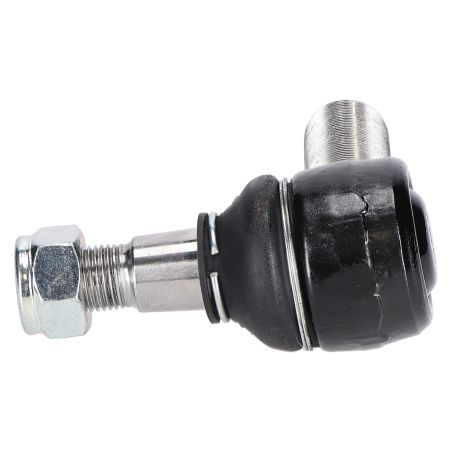

Steering link LEFT suitable for MANITOU
TORS

Steering link LEFT suitable for MANITOU

Catalog number:163504T Nr OEM:163504 Manufacturer:TORS
Add a review

Steering Tie Rod End Left M22x1.5 suitable for Manitou - 163504

Technical Specification and Compatibility

Left steering tie rod end with part number 163504 from the TORS offer. It is a component mounted on the steering knuckle side, designed for steering systems of MANITOU machines. The end features a metric M22x1.5 LEFT (LHT) thread and a precise mounting cone. The total length of the element is 101.50 mm.

Part Number: 163504
Component Type: Tie Rod End
Location: Knuckle Side
Length: 101.50 mm
Thread: M22 x 1.5
Thread Direction: Left Hand (LHT)
Cone Dimensions: 18.20 mm / 20.50 mm
Manufacturer: TORS

TORS components guarantee safety. The reinforced ball stud socket and high-quality rubber boot ensure long operation even in difficult terrain conditions, protecting the joint from seizing.

Features of TORS 163504 End

Left Thread: The use of a left-hand thread is crucial for the alignment adjustment system (paired with a right-hand end). It allows changing the rod length by rotating it.
Precise Cone: Dimensions 18.20 mm (top) and 20.50 mm (bottom) guarantee a perfect fit to the knuckles in specific Manitou models.
Tightness: Flexible rubber boot effectively keeps grease inside the joint and prevents sand from entering.
Durability: Forged body made of high-grade steel resists cracks and shear forces occurring when turning wheels in place.

Application in MANITOU machinery

Brand Machine Type
MANITOU Telehandlers, Forklifts

End fits selected models. Before purchasing, please check the thread type (left) and cone dimensions.

Related Parts and Hardware

This end works with the axial rod and the opposite end with a right thread. When replacing, we recommend using a new lock nut and cone fixing nut.

⚠️ Safety Warning

A worn tie rod end (play) causes imprecise steering and machine "wandering". Joint failure during driving threatens a complete loss of vehicle control. Check steering system play regularly.

Part Role in the Machine and Failure Diagnostics

End 163504 connects the steering rod to the wheel knuckle.

  • › Metallic knocking (worn ball stud).
  • › Tire tread shearing (bad alignment).
  • › Delayed response to steering movement (play in the system).
  • › Cracked rubber boot (grease leak).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Thread Direction: This end has a LEFT thread. Attempting to screw it into a rod with a right thread will damage the parts. Verify the thread direction on the old part.
  2. Cone Mounting: The socket in the knuckle must be clean and dry. Do not grease the cone – it must be seated "dry".
  3. Alignment: After replacement, wheel alignment must be re-adjusted by measuring the distance between the rims at the front and rear of the axle.

Technical FAQ and Trivia

How to identify left thread?

A left-hand thread tightens counter-clockwise (to the left). Often there is an "L" mark on the end housing or notches on the edges of the hexagon.

How to measure the cone?

Measure the cone diameter at the narrowest point (just by the stud thread) - it should be approx. 18.2 mm, and at the widest point (by the rubber) - it should be approx. 20.5 mm.

"Crab walk" trivia

Manitou telehandlers often operate in "crab steer" mode (chód kraba), where all wheels are turned in the same direction, allowing diagonal movement. For this mode to work correctly and not destroy tires, all tie rod ends must be free of play to maintain perfect geometry.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
163504T
163504
0.00 kg

Data sheet

SUITABLE FOR
MANITOU
MACHINE TYPE
FORKLIFT
TELESCOPIC HANDLER
OEM NUMBERS
163504

Specific References

MPN
163504
