Steering link suitable for MANITOU
TORS

Steering link suitable for MANITOU

Catalog number:SKX861001T Nr OEM:601210 Manufacturer:TORS
Add a review

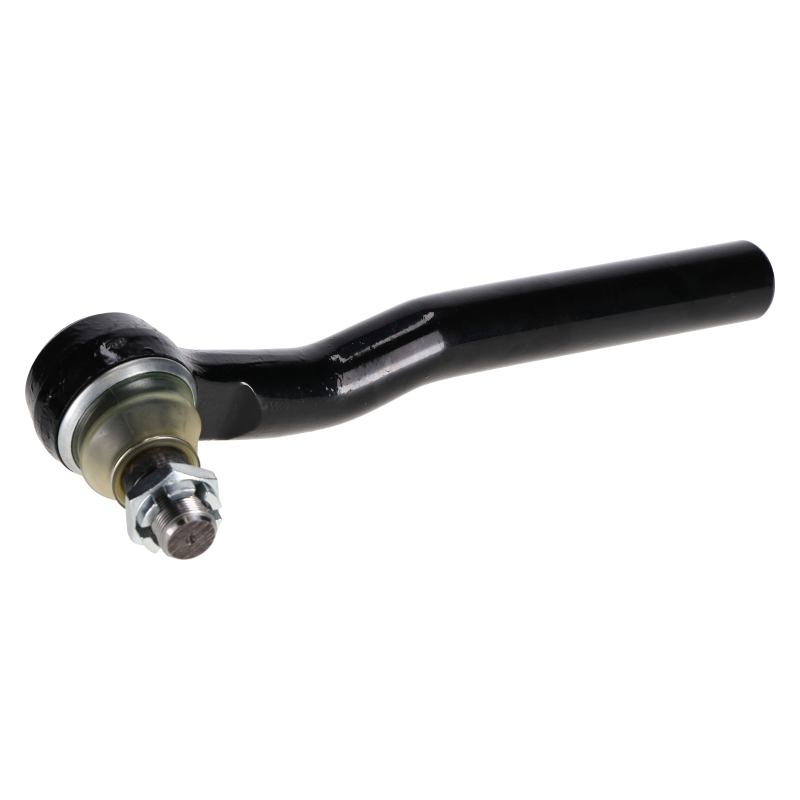

Steering Tie Rod suitable for Manitou - 601210

Technical Specification and Compatibility

Complete steering tie rod with part number 601210 from the TORS offer. This is a key steering system component, designed for MANITOU machines (telehandlers, forklifts). The tie rod features a solid rod with a diameter of 38 mm and precisely manufactured mounting cones, ensuring durability and machine handling safety in difficult terrain conditions.

Part Number: 601210
Component Type: Steering Tie Rod
Total Length: 337.50 mm
Cone Dimensions: 27.00 mm / 30.50 mm
Rod Diameter: 38 mm
Thread: M24 x 1.5
Manufacturer: TORS

TORS steering components are designed for heavy loads. The use of hardened ball studs and reinforced rubber boots minimizes the risk of play and the ingress of contaminants into the joint.

Features of TORS 601210 Tie Rod

Dimensioning: Precise cone dimensions (27mm/30.5mm) ensure a perfect fit to Manitou steering knuckles and cylinders, eliminating the need for modifications.
Durability: The thick shaft (38 mm) is resistant to bending, which is a common cause of failure when wheels hit obstacles on a construction site.
Sealing: Flexible rubber boots effectively retain grease inside the joint, protecting it from being washed out by water and mud.
M24x1.5 Thread: Standard thread pitch facilitates assembly and potential toe adjustment (if machine design allows on this element).

Application in MANITOU machinery

Brand Machine Type
MANITOU Telehandlers, Forklifts

The product fits selected Manitou models. We recommend verifying dimensions (length 337.5mm) before placing an order.

Related Parts and Hardware

Replacing the tie rod often involves checking the hydraulic steering cylinder. We also recommend getting appropriate pin grease and new securing cotter pins.

⚠️ Safety Warning

Play in the steering tie rod leads to unstable machine behavior, especially at higher transport speeds. A damaged joint can separate, resulting in a complete loss of steering control.

Part Role in the Machine and Failure Diagnostics

Rod 601210 is responsible for transferring the turning motion to the wheel knuckle.

  • › Suspension knocking (worn ball joints).
  • › Lack of steering precision (play in the rod).
  • › Uneven tire tread wear.
  • › Grease leakage from rubber boots.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Cone Mounting: The conical socket in the knuckle must be clean and dry. Do not grease the cone surface before mounting, this can lead to socket cracking when tightening.
  2. Alignment: After any intervention in the steering system, wheel alignment must be checked. Improper toe-in drastically accelerates tire wear.
  3. Lubrication: If the rod has grease nipples, grease it immediately after installation. Regular lubrication is key to joint longevity.

Technical FAQ and Trivia

What are the cone dimensions?

In this rod model (601210), the cones measure: smaller cone is 27.00 mm at the widest point, and the larger one is 30.50 mm. This should be measured carefully with a caliper on the old part.

What is the rod length?

The total length of the rod is 337.50 mm. It is a fixed-length rod, without adjustment on the bar itself.

Manitou Trivia

Many Manitou telehandlers feature three steering modes: front-wheel steer (for road travel), four-wheel steer in opposite directions (tight turning radius), and crab steer (both axles in the same direction). The efficiency of steering tie rods is crucial for the correct operation and synchronization of these modes.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX861001T
601210
3.74 kg

Data sheet

SUITABLE FOR
MANITOU
MACHINE TYPE
FORKLIFT
TELESCOPIC HANDLER
OEM NUMBERS
601210

Specific References

MPN
601210
