Link trackrod suitable for CAT 416C, 426C, 428C, 436C 438C, 442D
TORS

Link trackrod suitable for CAT 416C, 426C, 428C, 436C 438C, 442D

Catalog number:SKX860230T Nr OEM:110-0840 Manufacturer:TORS
Add a review

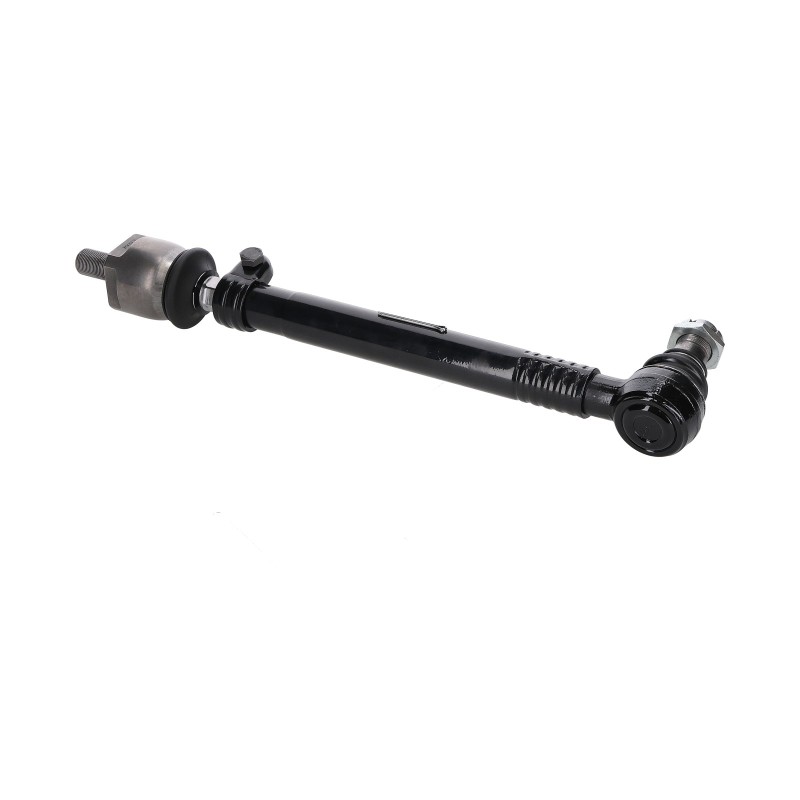

Steering Tie Rod (527mm) suitable for CAT 428C 438C - 1100840

Technical Specification and Compatibility

Robust 1100840 steering tie rod manufactured by the renowned brand TORS. This is a key steering component, dedicated to Caterpillar (CAT) backhoe loaders, mainly from the C series and selected B and D models. It features a specific total length of 527 mm and a reinforced tube with a diameter of 40 mm, ensuring high resistance to mechanical damage.

Part Number: 1100840
Type: Complete Steering Rod
Total Length: 527 mm
Tube Diameter (Shaft): 40 mm
Threads: M28x1.5
Cone Dimensions: 28.10 mm / 32.00 mm

TORS products guarantee reliability in steering systems. The use of thickened profiles and precise CNC machining of the ends ensures safe handling and long service life even in difficult construction terrain.

Features of TORS 1100840 Rod

Reinforced Construction: The 40 mm diameter tube is significantly more resistant to bending than standard rods, which is crucial when working in ruts.
Precise Cones: Cone dimensions (28.1/32.0 mm) guarantee a perfect fit with the knuckle and cylinder, eliminating the risk of assembly play.
Corrosion Protection: High-quality paint coating protects the component from water, salt, and mud.
Complete Set: The rod has integrated ball joints, allowing for quick and comprehensive system repair.

Application in machinery

Machine Type Models
Backhoe Loaders 416C, 426B, 426C, 428C, 436B, 436C, 438B, 438C, 438D, 442D

The model list is for reference. CAT machines use various rod lengths. It is essential to verify the 527 mm dimension.

Related Parts and Hardware

For proper rod installation, castle nuts and cotter pins (or self-locking nuts) are necessary to secure the ball joints. It is also worth checking the condition of the steering cylinder seals.

⚠️ Safety Warning

Operating a machine with play in the steering rods leads to loss of handling precision and wheel wandering, which is extremely dangerous when driving on public roads.

Part Role in the Machine and Failure Diagnostics

Rod 1100840 transfers force from the hydraulic cylinder to the wheel knuckle, enabling machine maneuvering.

  • › Knocking when turning (worn ball joints).
  • › Delayed wheel response to steering wheel movement (system play).
  • › Uneven tire wear (improper alignment).
  • › Mechanical bending of the rod tube.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Length Measurement: This rod is 527 mm. CAT machines also use 360mm, 479mm, 553mm rods. Measure the old part before buying!
  2. Socket Cleaning: Conical seats in the knuckle and cylinder must be clean and dry (no grease), so the cone seats correctly and doesn't rotate during tightening.
  3. Alignment: After every rod replacement, it is necessary to check and adjust the front wheel toe-in.

Frequently Asked Questions (FAQ)

Is the rod adjustable?

Yes, the rod has a threaded end (usually one), which allows for precise length adjustment to set the toe-in.

Does it fit left and right sides?

In older CAT models (B, C series), rods were often symmetrical, but this should be verified. In newer machines, left and right rods differ.

Why is the tube 40 mm?

It is a reinforced (Heavy Duty) version. The thicker tube provides greater rigidity and resistance to bending in rough terrain.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX860230T
110-0840
5.90 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
1100840 / 110-0840

Specific References

MPN
110-0840
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Link trackrod suitable for CAT 416C, 426C, 428C, 436C 438C, 442D

Catalog number: SKX860230T
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21

Responsible person

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21
gross price

510.45 zł

net price
415,00 zł
Available in large quantity Temporarily unavailable
415,00 zł
net price

510.45 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 42 points, it gives you 16.80 zł
  • Lowest price from 30 days before the discount: 510.45 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    1100840 / 110-0840
