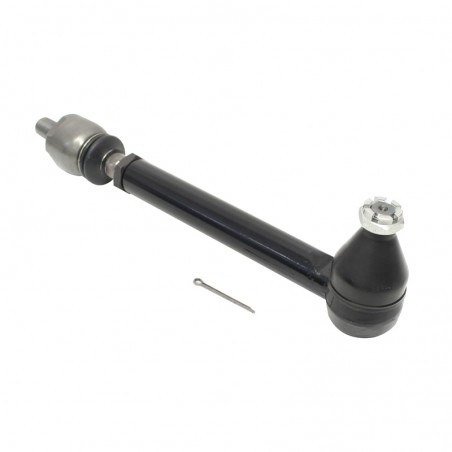

An essential component of the control system, the 9R9190 tie rod by TORS, is designed for the steering axles of CAT backhoe loaders. It serves as a key linkage between the steering mechanism (e.g., cylinder) and the front wheels. Its function is to precisely transmit steering inputs from the operator, allowing for rotational movement and ensuring proper control, stability, and wheel alignment. It is built to withstand the high stresses and forces generated during steering movements.
Steering system components from TORS are recognized as the most durable in their category. Product quality control, starting from raw material inspection, is carried out at all stages of production, right through to the final product. To maintain the highest quality, state-of-the-art inspection equipment and highly qualified staff are used during checks. Only the highest quality metal alloys are used in production, allowing the tie rods to be operated significantly longer than others available on the market.
| Brand | Type / Series / Model |
|---|---|
| CAT | 426, 416, 438, 428, 436, 426B, 428B, 416B |
The list above is for reference only. If you are unsure about the part's compatibility, please contact our experts.
For a complete repair, we recommend also checking the ball joints (tie rod ends) and kingpins that work with the tie rod.
Operating a machine with a damaged, bent, or corroded tie rod poses a critical safety hazard. A tie rod failure during driving or operation will lead to an immediate loss of steering control, which can result in a serious accident. These components are not suitable for welding or straightening.
The 9R9190 tie rod is a key linkage in the steering axle. Its job is to precisely transfer force from the steering mechanism (like a cylinder) to the wheel knuckle. This allows for rotational movement and the physical turning of the wheels, giving the operator control over the machine. Wear typically manifests as play in the joints.
📞 Can't find the part you're looking for?
No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!
The 9R9190 rod is often a transverse or symmetrical rod. However, you should always verify the part number in your machine, as some models may also have dedicated side rods (left and right). Before purchasing, confirm which component has failed.
Each tie rod part number (like 9R9190, 9R2843, etc.) corresponds to a different specification. They differ primarily in overall length, the type and size of the threads on the ends, and their geometry (shape). Installing the wrong rod is either impossible or risks being unable to set the wheel alignment.
This means the rod has the proper rigidity and precise joints to prevent uncontrolled wheel movements. Proper geometry (alignment) is crucial for driving stability and tire life, and a rigid rod without play is its foundation.
Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.
