Rod end suitable for CAT 14H - 1416137 / 9D5097
TORS

Rod end suitable for CAT 14H - 1416137 / 9D5097

Catalog number:141-6137 Nr OEM:141-6137 Manufacturer:TORS
Add a review

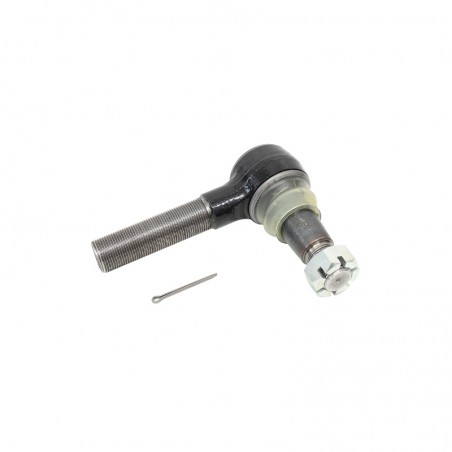

Left-Hand (LH) Tie Rod End TORS suitable for CAT - 1416137

Technical Specification and Compatibility

A critical steering system component, this Left-Hand (LH) tie rod end 1416137 (socket group) by TORS is specifically designed for CAT motor graders (e.g., 14H, 16H) to withstand extremely high torque and high impact loads. This left-hand "socket group" allows for differentiation in the tie rod's position relative to the steering arm, which is essential for precisely maneuvering heavy-wheeled machines.

Part Number: 1416137
Alternative Numbers: 8W4620 / 9D5097
Type: Left-Hand Tie Rod End (LH Socket Group)
Overall Length: 208.8 mm (8.22 in)
Overall Height: 154.7 mm
Thread Size (End 1 - Nut): 1-1/8-12
Thread Size (End 2 - Rod): 1-1/4-12

Steering system components from TORS are recognized as some of the most durable in their category. Product quality control, starting from raw material inspection, is carried out at all stages of production, right through to the final product. To maintain the highest quality, state-of-the-art inspection equipment and highly qualified staff are used during checks. Only the highest quality metal alloys are used in production, allowing the tie rods to be operated significantly longer than others available on the market.

Features of the 1416137 Tie Rod End

Designed for High Loads: Built to handle high torque and impact loads in motor graders.
Left-Hand (LH) Specification: Precision fit for the left side of the steering system.
TORS Reliability: Made from the highest quality metal alloys for maximum joint lifespan.
Robust Inch Threads: Heavy-duty threads (1-1/8-12 and 1-1/4-12) ensure a durable and secure connection in large machines.

Application in machinery

Brand Type / Series / Model
CAT MOTOR GRADER: 14G, 14H, 14H NA, 16G, 16H, 16H NA
CAT RIPPER SCARIFIER: 16G

The list above is for reference only. If you are unsure about the part's compatibility, please contact our experts or check your owner's manual.

Related Parts and Hardware

This product is the left-hand tie rod end. For a complete and professional steering system repair, we recommend also checking the condition of the right-hand (RH) tie rod end (part number 1416136) and the tie rod itself.

⚠️ Safety Warning

A tie rod end (socket group) is a safety-critical component. Its wear (excessive play) or failure leads to an immediate loss of control over the wheel, risking a serious accident. Never weld, recondition, or straighten worn or damaged tie rod ends.

Part Role in the Machine and Failure Diagnostics

The 1416137 tie rod end is a ball joint that connects the tie rod to the left-hand steering knuckle. It allows the wheel to turn while simultaneously moving up and down over uneven terrain, transferring immense steering forces. Wear on this component manifests as play in the joint.

  • › Excessive play in the steering wheel and machine "wandering".
  • › Knocking sounds from the left-hand knuckle area when turning.
  • › Accelerated and uneven tire wear (tread feathering/scalloping).
  • › Palpable play directly on the joint during a manual inspection.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Confirm Side and Threads: Ensure you are installing the left-hand (LH) end 1416137 and that the threads (1-1/8-12 and 1-1/4-12) match your rod and knuckle.
  2. Clean Taper and Thread: Thoroughly clean the tapered socket in the steering arm and the threads on the tie rod.
  3. Count Turns: When removing the old end, count the number of rotations it takes to unscrew it. This will help preset the alignment.
  4. Torque to Spec: Tighten the nut (1-1/8-12 thread) to the correct torque and secure it with a new cotter pin.
  5. Set Alignment: After replacing a tie rod end, a wheel alignment (toe-in) is absolutely necessary to prevent tire destruction.

Frequently Asked Questions (FAQ)

What is a "Socket Group"?

"Socket Group" is CAT's terminology for a complete ball joint assembly (tie rod end) designed to handle the high loads in motor grader steering systems.

Does this tie rod end fit the right side?

No. This product (1416137) is specifically designed as a Left-Hand (LH) end. The right-hand (RH) side has a different part number (1416136) and usually features an opposite-direction thread to allow for rod adjustment.

What is the difference between 1416137 and 9D5097?

Numbers 8W4620 and 9D5097 are older part numbers (superseded numbers) for the same left-hand tie rod end. Product 1416137 is the newest, current reference number and is their direct, 100% compatible replacement.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
141-6137
141-6137
3.15 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
MOTOR GRADER
OEM NUMBERS
1416137 / 141-6137 / 8W4620 / 9D5097

Specific References

MPN
141-6137
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Rod end suitable for CAT 14H - 1416137 / 9D5097

Catalog number: 141-6137
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21

Responsible person

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21
gross price

122.39 zł

net price
99,50 zł
Available in large quantity Temporarily unavailable
99,50 zł
net price

122.39 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 10 points, it gives you 4.00 zł
  • Lowest price from 30 days before the discount: 122.39 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    MACHINE TYPE
    MOTOR GRADER
    OEM NUMBERS
    1416137 / 141-6137 / 8W4620 / 9D5097
