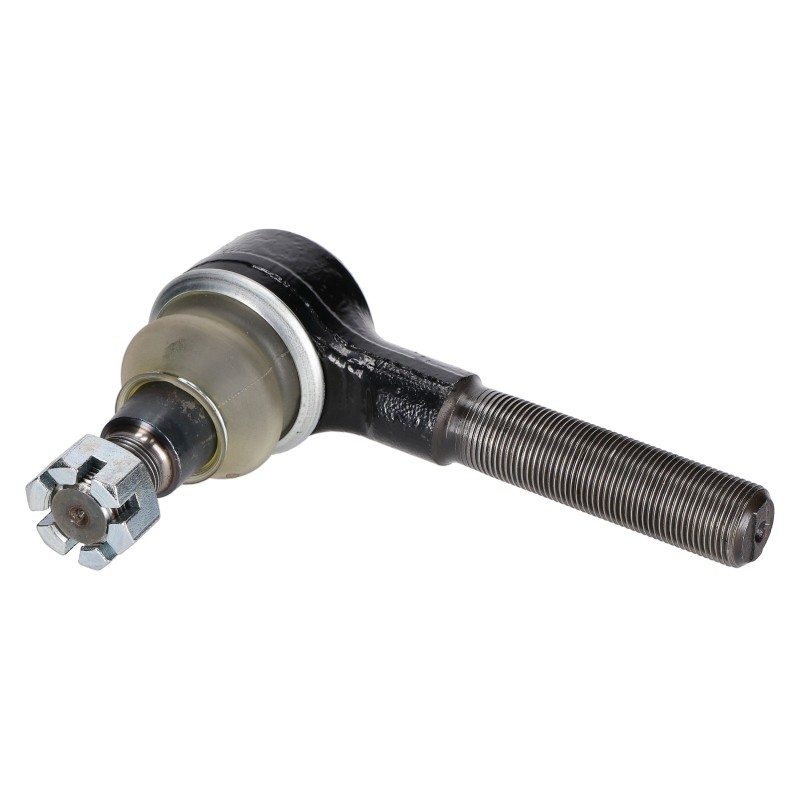

Rod end suitable for CAT / Right 40G 12H 120H 35H 140H 160H
TORS

Rod end suitable for CAT / Right 40G 12H 120H 35H 140H 160H

Catalog number:SKX860333T Nr OEM:131-3736 Manufacturer:TORS
Add a review

Right-Hand (RH/LH) Tie Rod End TORS suitable for CAT - 1313736

Technical Specification and Compatibility

An essential steering system component, this Right-Hand (RH) Left-hand (LH) tie rod end 1313736 (basic socket) by TORS is engineered to withstand incredible torque and high impact loads typical of CAT motor graders. This component connects to the bellcrank tie rods, providing crucial maneuverability for the machine. It features external shaft threads and a robust construction with a length of 211 mm, ensuring durability in the toughest conditions.

Part Number: 1313736
Alternative Numbers: 6G1780
Type: Right-Hand Tie Rod End (RH) / Basic Socket
Thread Feature: External shaft threads
Overall Length: 211 mm
Overall Height: 66 mm
Overall Width: 133.4 mm

Steering system components from TORS are recognized as some of the most durable in their category. Product quality control, starting from raw material inspection, is carried out at all stages of production, right through to the final product. To maintain the highest quality, state-of-the-art inspection equipment and highly qualified staff are used during checks. Only the highest quality metal alloys are used in production, allowing the tie rods to be operated significantly longer than others available on the market.

Features of the 1313736 Tie Rod End

Extreme Load Capacity: Designed to withstand high torque and severe impact loads.
Right-Hand (RH) Specification: Precision fit for the right side of CAT motor grader steering systems.
Ensures Maneuverability: As a basic socket, it connects to bellcranks, allowing the machine to steer.
Robust Construction: Dimensions (211 mm x 66 mm) guarantee the durability needed in heavy machinery.

Application in machinery

Brand Type / Series / Model
CAT MOTOR GRADER: 120, 120 GC, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 12G, 12H, 12H ES, 12H NA, 12K, 130G, 135H, 135H NA, 140, 140 GC, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 160, 160G, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA
CAT RIPPER SCARIFIER: 12G, 130G, 140G

The list above is for reference only. If you are unsure about the part's compatibility, please contact our experts or check your owner's manual.

Related Parts and Hardware

This product is the right-hand tie rod end (socket). For a complete and professional steering system repair, we recommend also checking the condition of the left-hand (LH) tie rod end (part number 1313738) and the tie rods themselves.

⚠️ Safety Warning

A tie rod end (socket) is a safety-critical component. Its wear (excessive play) or failure leads to an immediate loss of control over the wheel, risking a serious accident. Never weld, recondition, or straighten worn or damaged tie rod ends.

Part Role in the Machine and Failure Diagnostics

Basic steering sockets, like 1313736, are ball joints that connect the tie rods to the bellcranks or steering knuckles. They allow the wheel to steer while also moving up and down with the suspension. Failure manifests as excessive play in the steering system.

  • › Excessive play in the steering wheel and machine "wandering".
  • › Knocking sounds from the front axle (right side) when turning.
  • › Accelerated and uneven tire wear.
  • › Palpable play directly on the joint during a manual inspection.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Confirm Side: Ensure you are installing the right-hand (RH) end 1313736. The left side (1313738) is a different part.
  2. Clean Threads and Sockets: Thoroughly clean the threads on the tie rod and the mounting socket in the bellcrank/knuckle.
  3. Count Turns: When removing the old end, count the number of rotations. This helps in presetting the alignment.
  4. Torque to Spec: Tighten all nuts (on the external shaft threads) to the manufacturer's specified torque and secure them.
  5. Set Alignment: After replacing a tie rod end, a wheel alignment (toe-in) is absolutely necessary to prevent tire destruction.

Frequently Asked Questions (FAQ)

What is a "basic socket"?

This is CAT's terminology for a type of ball joint (tie rod end) that connects the tie rod to another suspension component, like a bellcrank, to provide maneuverability.

Does this tie rod end fit the left side?

No. This product (1313736) is specifically designed as a Right-Hand (RH) end. The left-hand (LH) side has a different part number (1313738) and may have a different design or thread.

What are the key dimensions to check?

You must verify the overall length (211 mm) and the mounting type (external shaft threads). This part is significantly different from other, shorter tie rod ends (like the 169 mm long 1313737).

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX860333T
131-3736
1.00 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
MOTOR GRADER
OEM NUMBERS
1313736 / 6G1780

Specific References

MPN
131-3736
Łączna ocena:
5,0
Kupiłeś ten produkt? Napisz recenzję dla innych!

2022-03-01

Zamienniki piewsza klasa!

Jestem bardzo zadowololny, nie tylko z produktu, ale też z super olbsługi. Szukałem tańszego zamiennika końcówki drążka do mojego cat, znajomy polecił Serwis Kop i uratował mi skórę. Dzięki barzdo!

Opinion:
(1 opinion)

Write a review

Rod end suitable for CAT / Right 40G 12H 120H 35H 140H 160H

Catalog number: SKX860333T
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21

Responsible person

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21
gross price

85.49 zł

net price
69,50 zł
Available in large quantity Temporarily unavailable
69,50 zł
net price

85.49 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 7 points, it gives you 2.80 zł
  • Lowest price from 30 days before the discount: 85.49 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    MACHINE TYPE
    MOTOR GRADER
    OEM NUMBERS
    1313736 / 6G1780
