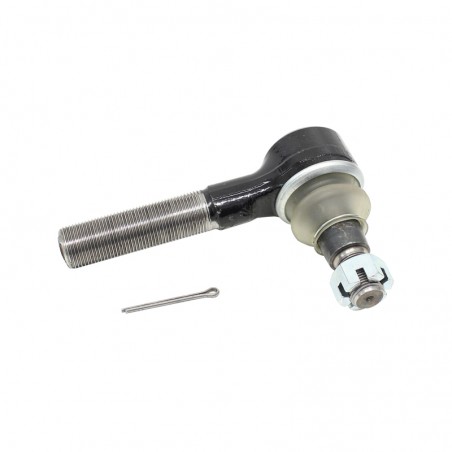

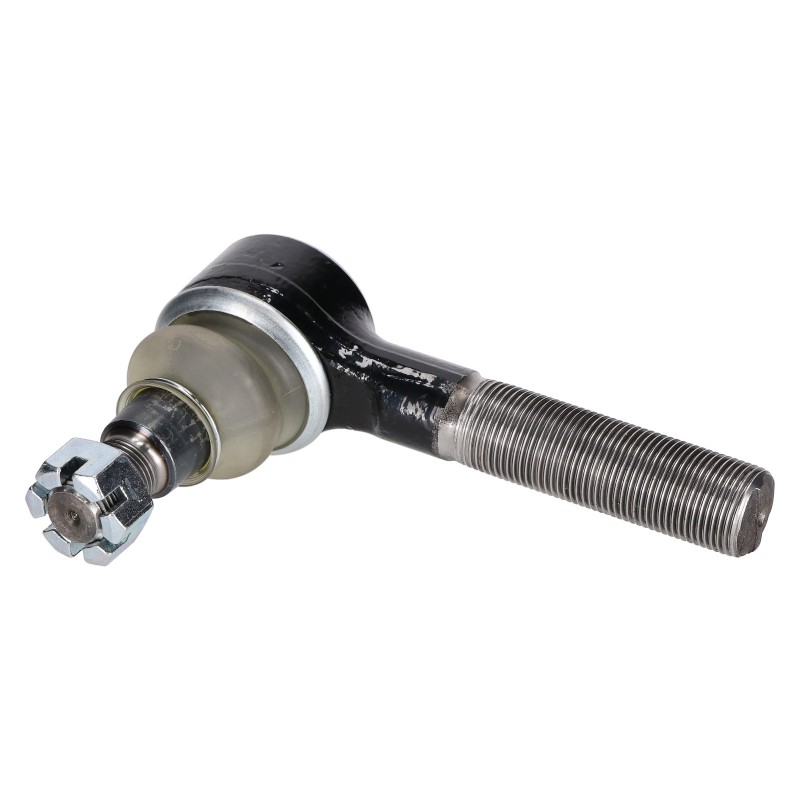

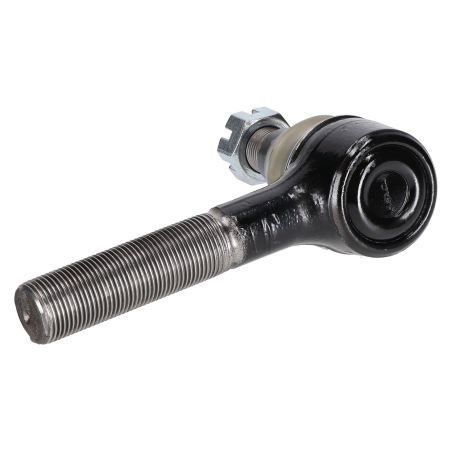

Rod end suitable for CAT / LEFT 12G 120G 130G 140G 12H 120H 35H 140H 160H
TORS

Rod end suitable for CAT / LEFT 12G 120G 130G 140G 12H 120H 35H 140H 160H

Catalog number:131-3738 Nr OEM:131-3738 Manufacturer:TORS
Add a review

Left-Hand (LH) Tie Rod End TORS suitable for CAT - 1313738

Technical Specification and Compatibility

An essential steering system component, this Left-Hand (LH) tie rod end 1313738 (socket assembly) by TORS is designed to operate under the toughest conditions, handling high torque and high impact loads in CAT motor graders. As a key joint, it allows for differentiation in the tie rod's position relative to the steering arm, aiding maneuverability. Precise threads (7/8-14 and 1-1/8-12) ensure a perfect fit and secure connection.

Part Number: 1313738
Alternative Numbers: 9D6524
Type: Left-Hand Tie Rod End (LH Socket Assembly)
Overall Length: 168.9 mm (6.65 in)
Thread Size (Taper End, for Nut): 7/8-14
Thread Size (Rod End): 1-1/8-12

Steering system components from TORS are recognized as some of the most durable in their category. Product quality control, starting from raw material inspection, is carried out at all stages of production, right through to the final product. To maintain the highest quality, state-of-the-art inspection equipment and highly qualified staff are used during checks. Only the highest quality metal alloys are used in production, allowing the tie rods to be operated significantly longer than others available on the market.

Features of the 1313738 Tie Rod End

High Load Capacity: Designed for high torque and impact loads typical of motor graders.
Left-Hand (LH) Specification: Precision fit for the left side of the steering system.
TORS Durability: Made from the highest quality metal alloys for maximum joint lifespan.
Precise Threads: Guarantees easy installation, correct geometry adjustment, and a secure connection.

Application in machinery

Brand Type / Series / Model
CAT MOTOR GRADER: 120, 120 GC, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 12G, 12H, 12H ES, 12H NA, 12K, 130G, 135H, 135H NA, 140, 140 GC, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 160, 160G, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA
CAT RIPPER SCARIFIER: 12G, 130G, 140G

The list above is for reference only. If you are unsure about the part's compatibility, please contact our experts or check your owner's manual.

Related Parts and Hardware

This product is the left-hand tie rod end. For a complete and professional steering system repair, we recommend also checking the condition of the right-hand (RH) tie rod end and the tie rod itself.

⚠️ Safety Warning

A tie rod end is a safety-critical component. Its wear (excessive play) or failure leads to an immediate loss of control over the wheel, risking a serious accident. Never weld, recondition, or straighten worn or damaged tie rod ends.

Part Role in the Machine and Failure Diagnostics

The tie rod end (socket assembly) is a ball joint that connects the tie rod to the steering knuckle. It allows the wheel to turn while simultaneously moving up and down over uneven terrain. Wear on this component is normal and manifests as play in the joint.

  • › Excessive play in the steering wheel and machine "wandering".
  • › Characteristic knocking sounds from the front axle when turning.
  • › Accelerated and uneven tire wear (tread feathering/scalloping).
  • › Palpable play directly on the joint during a manual inspection.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Confirm Side and Thread: Ensure you are installing the left-hand (LH) end 1313738. Left and right threads are often different (e.g., left-hand/right-hand threads).
  2. Count the Turns: When removing the old end, count the number of rotations it takes to unscrew it. This will help preset the alignment.
  3. Clean the Taper: Thoroughly clean the tapered socket in the steering arm of rust and debris.
  4. Torque and Pin: Tighten the castle nut (7/8-14 thread) to the correct torque and secure it with a new cotter pin.
  5. Set Alignment: After replacing a tie rod end, a wheel alignment (toe-in) is absolutely necessary to prevent tire destruction.

Frequently Asked Questions (FAQ)

What is a "Socket Assembly"?

"Socket Assembly" is the technical term used by CAT for a complete tie rod end, which is the ball joint including its housing and mounting taper.

Does this tie rod end fit the right side?

No. This product (1313738) is specifically designed as a Left-Hand (LH) end. The right-hand (RH) side has a different part number and usually features an opposite-direction thread to allow for rod adjustment.

What are the key dimensions to check?

The two most important dimensions are the threads: the thread that screws into the tie rod (in this case, 1-1/8-12) and the thread on the mounting taper that the nut goes on (here, 7/8-14). You should also confirm the overall length (168.9 mm).

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
131-3738
131-3738
1.80 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
MOTOR GRADER
OEM NUMBERS
9D6524 / 1313738

Specific References

MPN
131-3738
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Rod end suitable for CAT / LEFT 12G 120G 130G 140G 12H 120H 35H 140H 160H

Catalog number: 131-3738
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21

Responsible person

  • TORS HEAVY MACHINE INDUSTRY CO.
  • ATIKER SAN. SIT. C BLOK 40/U
  • 42050 FEVZI CAKMAK MH. ASLIM CD.
  • Turkey
  • [email protected]
  • +90 332 251 78 21
gross price

85.49 zł

net price
69,50 zł
Available in large quantity Temporarily unavailable
69,50 zł
net price

85.49 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 7 points, it gives you 2.80 zł
  • Lowest price from 30 days before the discount: 85.49 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    MACHINE TYPE
    MOTOR GRADER
    OEM NUMBERS
    9D6524 / 1313738
