Upper kingpost bushing - 95x83x81 suitable for JCB 3CX 4CX
CORESPEX

Upper kingpost bushing - 95x83x81 suitable for JCB 3CX 4CX

Catalog number:SKX1021175CX Nr OEM:808/00216 Manufacturer:CORESPEX
Add a review

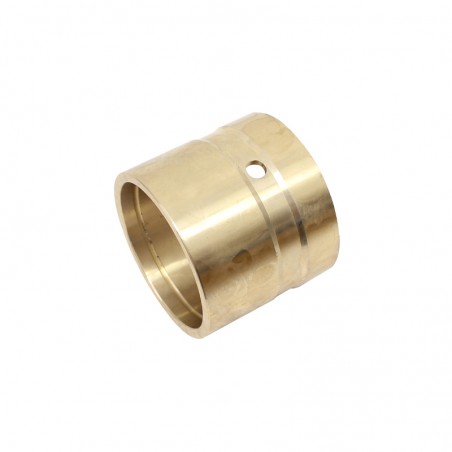

UPPER KINGPOST BRONZE BUSH SUITABLE FOR JCB 3CX, 4CX - 808/00216

Technical Specification and Compatibility

A high-quality slide bush, made of a special bronze alloy. It is a key component of the joint connecting the kingpost to the sideshift carriage at its upper mounting point. Its function is to provide smooth rotational movement for the kingpost pin and to bear the enormous forces generated during backhoe operation. It has internal grease channels for optimal lubricant distribution.

Part number: 808/00216
Manufacturer: NEXGEN
Height (mm): 81
Inner Diameter (mm): 83
Outer Diameter (mm): 95.1
Material: Bronze (with grease channels)

A NEXGEN brand product – a high-quality replacement that meets the highest standards of durability and performance.

Application in machines

Brand (Machine Type) Model
JCB (Backhoe Loaders) 3CX, 4CX (models up to serial number 405988)

The list above is for reference. It is crucial to ensure that your machine has the older sideshift type with a rack and pinion slew mechanism.

⚠️ Safety Warning

Replacing kingpost bushings requires the backhoe arm to be immobilized and secured. Always use the service lock and certified axle stands. Never rely solely on the machine's hydraulics. Use safety glasses and gloves.

Service Recommendation: Ensure Maximum Lifespan

For a complete joint refurbishment, always replace the upper and lower bushings together with new pins and seals. Regular greasing of the kingpost with high-quality HYPTRON grease with MoS2 additive drastically extends the life of all moving parts.

Part's Role in the Machine and Failure Diagnostics

Bushings are sacrificial components designed to wear out to protect much more expensive parts like the kingpost or the sideshift carriage. Ignoring worn bushings leads to play, which in turn damages the pin bores (causing them to become oval), ultimately requiring a very expensive re-boring repair.

Replace the bushings if you notice:

  • Excessive play (clunking) on the kingpost.
  • Loss of precision during digging, a "wobbly" bucket.
  • Loud squeaking or grinding from the joints, even after greasing.
  • A visible crack or displacement of the old bush.

Peace of Mind Guarantee: Why Choose Our Offer?

Your older machine is still worth its weight in gold.

We have a wide range of parts for machines with Perkins engines that will allow you to keep it in full technical condition for years to come. Protect your machine from expensive repairs – order a complete NEXGEN set and restore the factory rigidity to the joints.

Expert's Guide: Key Installation Tips

  1. Check the bores: Before pressing in new bushings, thoroughly clean and inspect the bores in the kingpost. If they are worn oval, they need to be re-bored.
  2. Use a press: Use a hydraulic press with appropriate sleeves to install the bushings. Hammering them in can cause damage.
  3. Align grease channels: If the bush has grease holes or channels, make sure they align with the grease nipple after installation.
  4. Grease generously: After installation, pump in a large amount of fresh grease until it purges out, removing any contaminants from the assembly process.

Frequently Asked Questions (FAQ)

1. Why are kingpost bushings made of bronze?

Copper alloys (bronze) are used in very high-load, low-speed joints. These materials have excellent sliding properties and are more resistant to seizure in the event of a temporary lack of lubrication than a steel bush, which is crucial in such an important component as the backhoe slew.

2. I have play on the backhoe arm. Will replacing this bush be enough?

Play in the backhoe can come from many places. This bush eliminates play at the upper kingpost mounting to the carriage. You should also check the lower kingpost mounting, the slew ram pins, and the pin connecting the boom to the kingpost. A comprehensive repair requires replacing all worn bushings and pins.

3. How do I distinguish the "old type" of slew from the new one?

The "old type" of slew, used up to approx. 1991 (serial number 405988), is based on two hydraulic rams and a rack and pinion system. Newer machines use a slew ring system (like in large excavators), which has a completely different kingpost and carriage design.

Key Advantages

🛡️

Working Precision

Eliminates play and restores arm rigidity.

🎯

Machine Protection

Protects expensive components from wear.

📦

High Durability

Bronze resistant to abrasion and seizure.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX1021175CX
808/00216
1.08 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
808/00216
MATERIAL
BRONZE
OUTER DIAMETER (MM)
95,1
INNER DIAMETER (MM)
83
HEIGHT (MM)
81
BUSH WITH COLLAR
NO

Specific References

MPN
808/00216
New
