Upper bush carriage suitable for JCB 3CX 4CX
GX-AFTER

Upper bush carriage suitable for JCB 3CX 4CX

Catalog number:809/00090A Nr OEM:809/00090 Manufacturer:GX-AFTER
Add a review

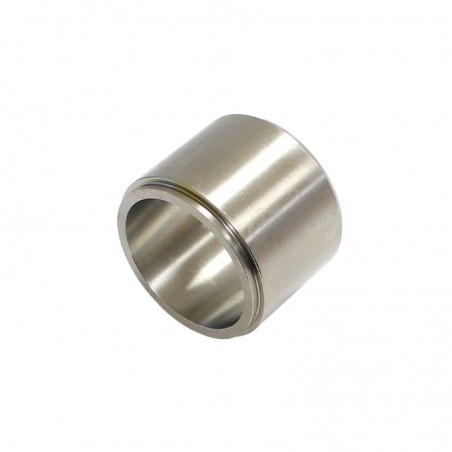

UPPER SIDESHIFT CARRIAGE BUSH SUITABLE FOR JCB 3CX, 4CX - 809/00090

Technical Specification and Compatibility

A high-quality slide bush, made of hardened steel. It is a key component of the joint that connects the kingpost to the sideshift carriage. Its function is to provide smooth rotational movement for the kingpost pin and to bear the enormous forces generated during backhoe operation. Precision manufacturing is essential to eliminate play and protect more expensive components from wear.

Part number: 809/00090
Height (mm): 77
Inner Diameter (mm): 83.2
Outer Diameter (mm): 102.5
Material: Hardened Steel
Slew Mechanism Type: Rack and pinion

Aftermarket quality product – an intelligent choice combining excellent quality with an attractive price.

Application in machines

Brand (Machine Type) Model
JCB (Backhoe Loaders) 3CX, 4CX (models manufactured up to approx. 1997)

The list above is for reference. It is crucial to ensure that your machine has the older sideshift type with a rack and pinion slew mechanism.

Service Recommendation: Ensure Maximum Lifespan

For a complete joint refurbishment, always replace the upper bushings together with the lower ones, and with new pins and seals. Regular greasing of the entire kingpost with high-quality HYPTRON grease with MoS2 additive drastically extends the life of all moving parts.

Part's Role in the Machine and Failure Diagnostics

Bushings are sacrificial components designed to wear out to protect much more expensive parts like the kingpost or the sideshift carriage. Ignoring worn bushings leads to play, which in turn damages the pin bores (causing them to become oval), ultimately requiring a very expensive re-boring repair.

Replace the bushings if you notice:

  • Excessive play (clunking) on the kingpost.
  • Loss of precision during digging, a "wobbly" bucket.
  • Loud squeaking or grinding from the joints, even after greasing.
  • A visible crack or displacement of the old bush.

Peace of Mind Guarantee: Why Choose Our Offer?

Ignoring play on the pins leads to irreversible damage to the bores in the carriage and kingpost, forcing costly re-boring repairs.

A repair performed using a complete set of GX-AFTER pins and bushings is the cheapest way to avoid these problems. Secure your machine and restore its factory precision – order a complete set today.

Expert's Guide: Key Installation Tips

  1. Check the bores: Before pressing in new bushings, thoroughly clean and inspect the bores in the carriage. If they are worn oval, they need to be re-bored.
  2. Use a press: Use a hydraulic press with appropriate sleeves to install the bushings. Hammering them in can cause damage.
  3. Align grease channels: If the bush has grease holes or channels, make sure they align with the grease nipple after installation.
  4. Grease generously: After installation, pump in a large amount of fresh grease until it purges out, removing any contaminants from the assembly process.

Frequently Asked Questions (FAQ)

1. I have play on the backhoe arm. Will replacing this bush be enough?

Play in the backhoe can come from many places. This bush eliminates play at the upper kingpost mounting to the carriage. You should also check the lower kingpost mounting, the slew ram pins, and the pin connecting the boom to the kingpost. A comprehensive repair requires replacing all worn bushings and pins.

2. How do I distinguish the "old type" of slew from the new one?

The "old type" of slew, used until about 1997, is based on two hydraulic rams and a rack and pinion system. Newer machines use a slew ring system (like in large excavators), which has a completely different kingpost and carriage design.

3. What happens if I keep working with worn bushings?

Prolonged operation with loose pins causes the bores in the arm, kingpost, or ram to wear out. The holes become oval, and their repair is very expensive and requires specialized machining (a mobile line boring machine). Replacing bushings in time is the cheapest way to avoid this failure.

Key Advantages

🛡️

Working Precision

Eliminates play and "wobble" of the backhoe arm.

🎯

Machine Protection

Protects expensive components from wear.

📦

High Durability

Hardened steel resistant to abrasion.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

809/00090A
809/00090
1.53 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
809/00090
MATERIAL
STEEL
OUTER DIAMETER (MM)
102,5
INNER DIAMETER (MM)
83,2
HEIGHT (MM)
77
BUSH WITH COLLAR
NO

Specific References

MPN
809/00090
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Upper bush carriage suitable for JCB 3CX 4CX

Catalog number: 809/00090A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

45.20 zł

net price
36,75 zł
Available in large quantity Temporarily unavailable
36,75 zł
net price

45.20 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 4 points, it gives you 1.60 zł
  • Lowest price from 30 days before the discount: 45.20 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    809/00090
    MATERIAL
    STEEL
    OUTER DIAMETER (MM)
    102,5
    INNER DIAMETER (MM)
    83,2
    HEIGHT (MM)
    77
    BUSH WITH COLLAR
    NO
