Gasket for the solenoid valve suitable for the JCB gearbox
GX-AFTER

Gasket for the solenoid valve suitable for the JCB gearbox

Catalog number:813/10175A Nr OEM:813/10175 Manufacturer:GX-AFTER
Add a review

Transmission Shift Solenoid Gasket suitable for JCB - 813/10175

Technical Specification and Compatibility

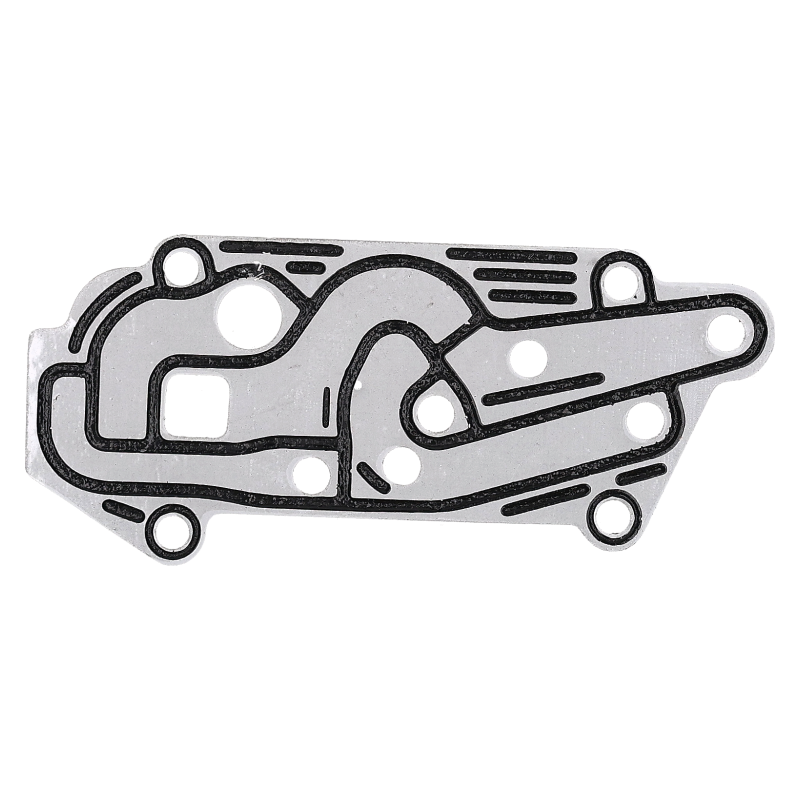

An essential sealing component, the 813/10175 shift solenoid gasket, in GX-AFTER quality. It is designed for installation on the gearbox (e.g., Powershift) in a wide range of JCB machines, including 2CX, 3CX, 4CX backhoe loaders, wheel loaders (406, 407), and telehandlers (528, 531-70). Its function is to provide a perfect seal between the solenoid valve and the transmission valve block, preventing oil leaks and loss of control pressure.

Part Number: 813/10175
Alternative Numbers: 813/50002 / 813/50010
Type: Transmission Shift Solenoid Gasket

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Features of the 813/10175 Gasket

Critical Seal: Prevents costly transmission oil leaks and loss of control pressure, which is essential for shifting.
Oil Resistant: Made from high-quality material resistant to hot transmission oil and high pressure.
Precision Manufacturing: Perfectly mirrored shape guarantees a trouble-free installation and fit in the solenoid port.
Essential for Repairs: Must be replaced every time the shift solenoid is removed (e.g., for coil replacement).

Application in machinery

Brand Type / Series / Model
JCB Backhoe Loaders: 1400B-2WD, 1400B-4WD, 1550B-2WD, 1550B-4WD, 1600B-2WD, 1600B-4WD, 1700B-2WD, 1700B-4WD, 214-2, 214-4, 214-4T, 214e/3CX, 214S, 215/3CX 15, 215S, 217-4, 2CX, 2CX AIRMASTER, 2CX AM LOW EMISSION, 2CX FARMASTER, 2CX FM LOW EMISSION, 2CX LOADER, 2CX LOADER LOW EMISSION, 2CX LOW EMISSION, 2CX UTILITY, 2CX UTILITY LOW EMISSION, 2CX-AIRMASTER, 2CXL, 2CXL LOW EMISSION, 2CXS, 2CXSL, 2CX-SM, 2DX, 2DX LOW EMISSION, 2DXL, 3C, 3C-2WD, 3C-2WD FRANCE, 3CN, 3CN-4WD, 3CXT-4 A.D.M., 3CX, 3CX (CM) Centremount AA AB Engine, 3CX 20KPH, 3CX 30KPH, 3CX 35KPH, 3CX 4WD TURBO PRECISION CONTROL, 3CX 92HP 14FT EXCAVATOR TIER 2, 3CX 92HP TIER 3, 3CX CENTREMOUNT, 3CX CONTRACTOR, 3CX CONTRACTOR 4WD TURBO PRECISION CONTROL, 3CX HAMMERMASTER 20KPH, 3CX HAMMERMASTER 30KPH, 3CX HAMMERMASTER TURBO 20KPH, 3CX JCB ENGINE, 3CX MANUAL, 3CX SITEMASTER, 3CX SITEMASTER 20KPH, 3CX SITEMASTER 30KPH, 3CX SITEMASTER 35KPH, 3CX SITEMASTER 4WD TURBO, 3CX SITEMASTER 4WD TURBO PRECISION CONTROL, 3CX SITEMASTER MANUAL SHIFT, 3CX SITEMASTER SUPER 4WS 4WD, 3CX SITEMASTER TURBO 30KPH, 3CX SITEMASTER-4WD, 3CX SUPER, 3CX SUPER 4WS 4WD, 3CX SUPER MANUAL SHIFT, 3CX SUPER PRECISION CONTROL, 3CX TURBO 20KPH, 3CX TURBO 30KPH, 3CX TURBO 35KPH, 3CX TURBO PRECISION CONTROL, 3CX-2WD, 3CX-2WD AUSTRALIA, 3CX-2WD FRANCE, 3CX-2WD HAMMERMASTER USA, 3CX-2WD SITEMASTER USA, 3CX-2WD USA, 3CX-4WD, 3CX-4WD AUSTRALIA, 3CX-4WD FRANCE, 3CX-4WD HAMMERMASTER USA, 3CX-4WD SITEMASTER USA, 3CX-4WD TURBO, 3CX-4WD USA, 3CX-4TT, 3CXE, 3D-2WD, 3D-4WD, 3D-4WD AUSTRALIA, 3DX, 3DX BSIII, 3DX ED, 3DX HAMMERMASTER, 3DX I, 3DX JCB ENGINE BS II, 3DX JCB ENGINE BSIII, 3DX LOADER, 3DX PLUS [CEV Stage-lV], 3DX PLUS Export, 3DX PRO Export, 3DX SUPER, 3DX SUPER - SRILANKA, 3DX SUPER BSII, 3DX SUPER BSIII, 3DX SUPER HAMMERMASTER, 3DX SUPER [CEV Stage-lV], 3DX SUPER-ARMY, 3DX SUPER-CRPF, 3DX XTRA [CEV Stage-lV], 3DX XTRA BSII, 3DX XTRA BSIII, 3DX XTRA I, 3DXL, 4C, 4C 30KPH, 4C 35KPH, 4C Turbo, 4C-2WD TURBO, 4C-4WD TURBO, 4CN, 4CN 30KPH, 4CN 35KPH, 4CN 4WD 4WS MANUAL SHIFT 30KPH, 4CN-2 WHEEL DRIVE, 4CN-4 WHEEL DRIVE, 4CX, 4CX 4WD 4WS MANUAL SHIFT 20KPH, 4CX 4WD 4WS MANUAL SHIFT 30KPH, 4CX 4WD 4WS MANUAL SHIFT 35KPH, 4CX SITEMASTER MANUAL SHIFT 20KPH, 4CX SITEMASTER MANUAL SHIFT 30KPH, 4CX SITEMASTER MANUAL SHIFT 35KPH, 4DX, 4DX BSIII, 4DX BSIV, 4DX SERVO CONTROLS, 4DX-JCB ENGINE BSII, 5CX, Centremount. Advanced, Easycontrol. 2WS, Centremount. Advanced, Easycontrol. AWS, Centremount. Direct Control. 2WS, Centremount. Direct Control. AWS, Sideshift. Advanced Easycontrol. 2WS, Sideshift. Advanced, Easycontrol. AWS, Sideshift. Direct Control. 2WS, Sideshift. Direct Control. AWS, MIDI CX
JCB Wheel Loaders: 406, 406 FARM MASTER, 407, 407 FARM MASTER, 408, 408 FARM MASTER, 409, 409 FARM MASTER, 409 TELE MASTER, TM200
JCB Telehandlers (Loadall): 504, 506, 506C, 520, 520 LE, 520-2, 520-2HL, 520-50, 520-50 [4 Wheel Steer], 520-50 LE, 520-55, 520-55 FS, 520M-2, 520S, 520S LE, 525 LE, 525-50, 525-50 LE, 525-50M ARMY, 525-50M RAF, 525-50S, 525-58, 525-58 FS, 525-67, 525-67 (JAPANESE), 525-67 [Military], 525-67 [Sway], 525-67 FS, 525B-2, 525B-2HL, 525B-4, 525B-4HL, 526, 526 LE, 526-55, 526-55 FS, 526-56, 526S, 526S LE, 527-58, 527-58 FS, 527-67, 527-67 FS, 528, 528-70, 528S, 530, 530-110, 530-110 (INDIA), 530-110 [PLACEACE Controls], 530-110 CEV Stage-IV, 530-110 LE, 530-110I, 530-120, 530-120 [PLACEACE Controls], 530-120S [PLACEACE Controls], 530-67, 530-67 FS PLUS, 530-70, 530-70 (INDIA), 530-70 CEV Stage-IV, 530-70I, 530-95, 530B HL-2, 530B HL-4, 530B-2, 530B-4, 530S, 531-70, 535-67, 535-67 FS PLUS, 536-60, 536-60DS, 536-70AG+, 537-120, 537-130, 540-120, 540-70 CEV Stage-IV, 540B-2, 540B-4, 540BM-2, 540BM-4, 541-70 ALL VARIANTS
JCB Forklifts (RTFL): 921-2WD, 926, 926 2WD, 926 4WD, 926-2WD, 926-2WD TIER 2, 926-2WD TIER 4, 926-4WD, 926-4WD TIER 2, 926-4WD TIER 4, 930, 930 2WD, 930 4WD, 930-2WD, 930-2WD LOW EMISSION, 930-2WD TIER 2, 930-2WD TIER 4, 930-4WD, 930-4WD TIER 2, 930-4WD TIER 4, 940, 940 2WD, 940 4WD, 940-2WD, 940-2WD TIER 2, 940-2WD TIER 4, 940-4WD, 940-4WD TIER 2, 940-4WD TIER 4, 945-4, 945-4 T4, 950-4WD, 950-4WD TIER 4
JCB DRIVETRAIN ITL PRODUCTS, SS400, SS500, SS600, SS620, SS640, SS660, SS700, SS720, SS740, SYNCHROMESH

The list above is for reference. It is crucial to verify the part number 813/10175 in your machine's transmission parts diagram.

Related Parts and Hardware

This gasket is installed directly under the solenoid valve (coil) that controls the transmission. When servicing, we also recommend replacing the transmission filter and checking the oil (we recommend HYPTRON oils).

⚠️ Safety Warning

A failed 813/10175 gasket leads to transmission oil leaks, creating a slip hazard. More importantly, a leak can cause a loss of control pressure, leading to shifting problems, clutch slippage, or a complete loss of drive, which can be dangerous when operating on a slope.

Part Role in the Machine and Failure Diagnostics

The 813/10175 gasket is a precision-molded seal installed between a solenoid valve and the transmission valve block. Its job is to hermetically seal the high-pressure oil channels that control the engagement of the various clutches (for gears or direction).

  • › Transmission oil leak from the solenoid mounting point.
  • › Delayed response or jerking when shifting (due to pressure loss).
  • › Transmission "slipping" or loss of drive (internal cross-channel leak).
  • › Old gasket is hard, flattened, brittle, or cracked.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Absolute Cleanliness: Before installation, the surfaces of the valve block and the solenoid must be perfectly clean, dry, and degreased.
  2. Replace Every Time: This gasket is a one-time-use item. It must be replaced with a new one every time the solenoid is unbolted.
  3. No Silicone: Never use silicone or any liquid sealant with this gasket. It can clog the sensitive control channels in the transmission.
  4. Correct Alignment: Ensure the gasket is perfectly aligned with all oil passages.
  5. Gentle Tightening: Tighten the solenoid bolts gradually and evenly to ensure proper compression.

Frequently Asked Questions (FAQ)

Where exactly is this gasket located?

It is located directly under the gear shift solenoid (coil), on the transmission's valve block.

How is this gasket different from 813/M1221?

The 813/M1221 is the large, oval gasket for the main solenoid *block* (adapter). This gasket (813/10175) is the smaller, individual seal for a single solenoid valve that mounts *onto* that block.

Are 813/50002 and 813/50010 the same part?

Yes, these are interchangeable (alternative) numbers. 813/50002 and 813/50010 are older part numbers that have been superseded by 813/10175. All are fully compatible.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

813/10175A
813/10175
0.11 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
FORKLIFT
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
813/10175 / 813/50002 / 813/50010

Specific References

MPN
