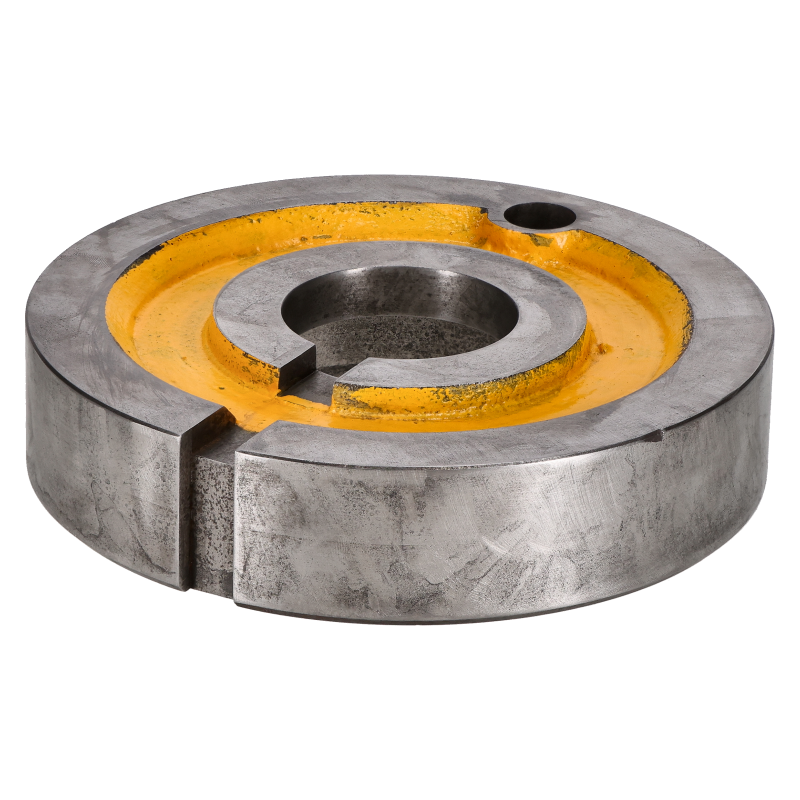

Swing shaft foot - old type - suitable for JCB 3CX 4CX
GX-AFTER

Swing shaft foot - old type - suitable for JCB 3CX 4CX

Catalog number:SKX864657A Nr OEM:121/38103 Manufacturer:GX-AFTER
Add a review

SLEW PINION SHAFT HOUSING (OLD TYPE) SUITABLE FOR JCB - 121/38103

Specification & Compatibility

Product: Kingpost Slew Pinion Shaft Housing / Support
Producer: GX-AFTER
Material: High-grade cast steel
Application (Machines before 1997 with rack type slew):
JCB Backhoe Loaders

3CX, 4CX

Part Number: 121/38103
Part Type: High-quality replacement

Essential for Installation

Slew Pinion Gear (recommended to replace as a set)
Slew Rack (absolutely recommended to replace in pair with the pinion)
Kingpost Slew Wear Pads (crucial for eliminating play)
HYPTRON High-Pressure Grease

What does this part do and what are the symptoms of wear?

The slew shaft housing is a key structural component that supports the pinion shaft in the "old type" slew mechanism. Its function is to keep the shaft in alignment and withstand enormous forces. If you hear loud "cracking" or metallic grinding during slewing, the slew is jerky or jams, and you find large metal shavings in the oil, this may indicate a cracked housing or worn bearing seats. This failure leads to the destruction of the pinion gear, rack, and the loss of the slew function.

Parameters That Guarantee Reliability

💪

High Strength

Resistant to cracks and heavy loads

🎯

Precise Bearing Seats

Longer bearing life

⚙️

Perfect Fit

Guaranteed hassle-free installation

Why Choose a GX-AFTER Housing?

✔Precise Manufacturing

The accuracy and quality of materials guarantee long and trouble-free use without the need for frequent replacement.

✔Compatibility with Original Parts

The housing is fully adapted to work with original pinions and racks, ensuring a consistent repair.

✔Savings Without Compromise

The GX-AFTER brand is a proven and safe alternative that offers quality comparable to original parts at a much better price.

Important Fitting / Service Tips

1.Diagnose the Cause of Failure

A cracked housing is usually a consequence, not the cause. It typically results from a worn-out pinion and slew rack. Always replace these components as a set.

2.Check Bearings and Bushes

Before installing the new housing, you must replace the bearings or bushes on which the pinion shaft operates.

3.Clean and Inspect Bores

Before installing new parts, thoroughly clean the entire kingpost frame of old grease and metal shavings.

4.Ensure Proper Lubrication

After installation, generously grease the teeth of the rack and pinion. Use high-quality grease, such as HYPTRON, and regularly check the lubrication status.

Frequently Asked Questions (FAQ)

Question: My slew is cracking and jamming. Will replacing the housing help?

Answer: No, replacing the housing alone will not solve the problem. Loud noises and jamming most often indicate broken teeth on the pinion gear or the rack. A cracked housing is usually a result of this failure.

Question: What's the difference between the "old type" slew and the new one?

Answer: The old type of slew (in machines before 1997) is based on a rack and pinion mechanism. The newer type uses hydraulic cylinders acting directly on the slew pins.

Question: Do I need special tools for installation?

Answer: Yes, overhauling the slew mechanism requires specialized tools (presses, pullers) and extensive knowledge. We recommend entrusting this repair to a qualified mechanic.

Question mark

If you are unsure whether the selected product is suitable for your machine, contact us and we will help you choose the right part and provide practical advice in minutes.

SKX864657A
121/38103
4.09 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
121/38103

Specific References

MPN
121/38103
