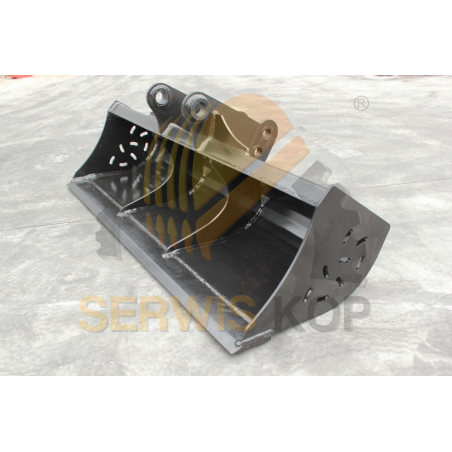

Grading bucket 150cm suitable for CASE 580, 590, 695 - G2
NEXGEN

Grading bucket 150cm suitable for CASE 580, 590, 695 - G2

Catalog number:BG150CASEG Nr OEM:302299A1 Manufacturer:NEXGEN
Add a review

150CM NEXGEN DITCHING BUCKET (G2) SUITABLE FOR CASE - 302299A1

Technical Specification and Compatibility

A brand new, complete 150 cm ditching/grading bucket, manufactured by a leading European producer for the NEXGEN brand. Designed for CASE 580, 590, and 695 backhoe loaders. The bucket's body is made of high-quality structural steel, and the cutting edge from G2 wear-resistant steel. The bucket features innovative systems: internal reinforcements to prevent twisting under load, and an elongated bottom profile that facilitates easier terrain profiling and prevents material spillage. The bucket is fully assembled (includes bushings, pins not included) and ready for immediate installation, manufactured in accordance with the ISO 7451 standard.

Part number: 302299A1
Width: 1500 mm
Capacity: 220 L (0.22 m³)
Cutting Edge: G2 Wear Resistant Steel
Hitch Dimensions: Pin diameter 38 mm and 45 mm, dipper width 127 mm and 255 mm, pin centers 362 mm

In the construction industry, machine reliability is the key to success. That's why we offer high-quality replacement parts for construction machinery that meet the highest standards of durability and performance. Our products are the ideal solution for companies and specialists looking for reliable components at attractive prices.

Essential for Assembly

  • › Mounting pins (38 mm and 45 mm): The bucket does not include pins. They must be purchased separately.

Application in machines

Brand Type / Series / Model
CASE Backhoe Loaders: 580, 590, 695

The list above is for reference. The standard hitch dimensions (38mm/45mm | 127mm/255mm | 362mm) ensure compatibility with both quick hitches and traditional pin mounting.

⚠️ Safety Warning

Before mounting or dismounting the bucket, ensure the machine is on stable, level ground and the attachment is lowered to the ground. Always use certified lifting slings and ensure no one is in the working area of the attachment.

Part's Role in the Machine and Failure Diagnostics

A ditching bucket is a specialized tool for precise terrain profiling, ditch cleaning, and finishing slopes. Its technical condition directly impacts the quality and speed of work. A worn or damaged bucket makes it impossible to achieve a smooth surface and increases the strain on the machine.

  • › Cracks in welds or plating, especially near the hitch.
  • › Complete wear or bending of the cutting edge, making it impossible to achieve a smooth surface.
  • › Ovalization (egging) of the pin holes, causing play and imprecise work.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Check pins and bushings on the arm: Before mounting the new bucket, check the condition of the pins and bushings on the excavator arm. Any play in these areas will be transferred to the new bucket.
  2. Grease thoroughly: Before installation, generously grease the pins and bushings in the bucket with a suitable grease, such as HYPTRON.
  3. Secure pins correctly: Make sure the pins are properly secured against sliding out, according to the mounting system on your machine.
  4. Check movement: After installation, perform several full cycles of bucket movement to ensure there are no collisions with the arm or cylinder.

Frequently Asked Questions (FAQ)

1. What is a ditching/grading bucket used for?

Thanks to its wide profile and smooth cutting edge (no teeth), a ditching bucket is ideal for finishing work, such as: profiling and leveling slopes, cleaning and deepening ditches, site leveling, and spreading loose materials.

2. What is the difference between an G2 and HB400 cutting edge?

G2 is a grade for high-strength structural steel. HB400 is a wear-resistant steel (approx. 400 Brinell hardness), which is significantly harder and more resistant to abrasion. This particular bucket features the G2 steel cutting edge.

3. Why does this hitch have two different pin diameters (38mm and 45mm)?

This is a characteristic feature of the hitch on CASE 580/590/695 backhoe loaders. Unlike many excavators where both pins are the same diameter, the CASE hitch often uses one diameter pin at the dipper end and a different diameter at the linkage. This is crucial for a correct fit and working geometry.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

BG150CASEG
302299A1
133.00 kg

Data sheet

SUITABLE FOR
CASE
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
BG150CASEG
WIDTH (MM)
1500
PINS (MM)
38
45
ARM WIDTH (MM)
127
255
SPACING OF THE PINS (MM)
362

Specific References

MPN
302299A1
Łączna ocena:
4,0
Kupiłeś ten produkt? Napisz recenzję dla innych!

2021-04-15

Zgodny z opisem

Wszystko zgodnie z opisem. Jak na tak dużą przesyłkę cena za dostawę przyzwoita. Polecam.

Opinion:
(1 opinion)

Write a review

Grading bucket 150cm suitable for CASE 580, 590, 695 - G2

Catalog number: BG150CASEG
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

3,012.27 zł

net price
2449,00 zł
Available in large quantity Temporarily unavailable
2449,00 zł
net price

3,012.27 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 245 points, it gives you 98.00 zł
  • Lowest price from 30 days before the discount: 3,012.27 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CASE
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    BG150CASEG
    WIDTH (MM)
    1500
    PINS (MM)
    38
    45
    ARM WIDTH (MM)
    127
    255
    SPACING OF THE PINS (MM)
    362
