Grading bucket 120cm suitable for JCB 2CX, 3CX COMPACT, MIDI CX - 980/05400
NEXGEN

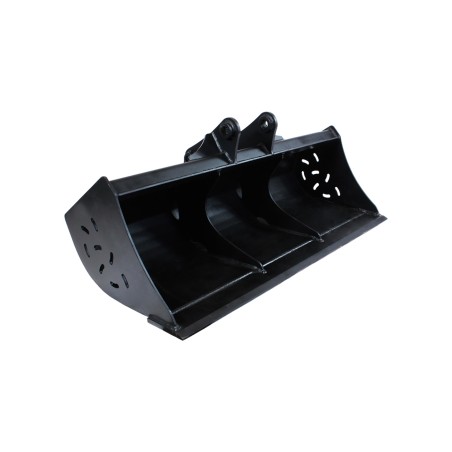

Grading bucket 120cm suitable for JCB 2CX, 3CX COMPACT, MIDI CX

Catalog number:980/05400 Nr OEM:980/05400 Manufacturer:NEXGEN
Add a review

HIMACORE 120CM DITCHING BUCKET (G2) SUITABLE FOR JCB - 980/05400

Technical Specification and Compatibility

A robust 120 cm ditching/grading bucket, designed for compact JCB machines like the 2CX, 3CX COMPACT, and MIDI CX. It features a reinforced hitch structure. The body is made from high-quality 5mm steel, and the cutting edge from durable G2 structural steel. It features internal reinforcements to prevent twisting and an elongated bottom profile for easier grading. Ideal for precise grading and ditch cleaning. The bucket is brand new, complete (pins not included), and ready to work, manufactured in accordance with the ISO 7451 standard.

Part number: 980/05400
Width: 1200 mm
Capacity: 172 L
Cutting Edge: G2 Structural Steel
Hitch Dimensions: Pin diameter 32 mm, Dipper width 164 mm, Pin centers 235 mm

HIMACORE specializes in providing the highest quality hydraulic parts for construction machinery. Our products, such as hydraulic pumps, motors, and valves, are designed for maximum performance and reliability in the toughest working conditions. By choosing HIMACORE, you are investing in the precision, durability, and operational certainty of your machine's hydraulic system.

Essential for Assembly

  • › Mounting pins (32 mm): The bucket does not include pins. They must be purchased separately.

Application in machines

Brand Type / Series / Model
JCB Backhoe Loaders: 2CX, 3CX COMPACT, MIDI CX

The list above is for reference. You must verify your dipper arm dimensions: 32 mm pin diameter, 164 mm arm width, and 235 mm pin centers.

⚠️ Safety Warning

Before mounting or dismounting the bucket, ensure the machine is on stable, level ground and the attachment is lowered to the ground. Always use certified lifting slings and ensure no one is in the working area of the attachment.

Part's Role in the Machine and Failure Diagnostics

A ditching bucket is a specialized tool for precise terrain profiling, ditch cleaning, and finishing slopes. Its technical condition directly impacts the quality and speed of work. A worn or damaged bucket makes it impossible to achieve a smooth surface and increases the strain on the machine.

  • › Cracks in welds or plating, especially near the hitch.
  • › Complete wear or bending of the cutting edge, making it impossible to achieve a smooth surface.
  • › Ovalization (egging) of the pin holes, causing play and imprecise work.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Check pins and bushings on the arm: Before mounting the new bucket, check the condition of the pins and bushings on the excavator arm. Any play in these areas will be transferred to the new bucket.
  2. Grease thoroughly: Before installation, generously grease the pins and bushings in the bucket with a suitable grease, such as HYPTRON.
  3. Secure pins correctly: Make sure the pins are properly secured against sliding out, according to the mounting system on your machine.
  4. Check movement: After installation, perform several full cycles of bucket movement to ensure there are no collisions with the arm or cylinder.

Frequently Asked Questions (FAQ)

1. What is a ditching/grading bucket used for?

Thanks to its wide profile and smooth cutting edge (no teeth), a ditching bucket is ideal for finishing work, such as: profiling and leveling slopes, cleaning and deepening ditches, site leveling, and spreading loose materials.

2. What is the difference between an G2 and HB400 cutting edge?

G2 is a grade for high-strength structural steel. HB400 is a wear-resistant steel (approx. 400 Brinell hardness), which is significantly harder and more resistant to abrasion. This particular bucket features the G2 steel cutting edge.

3. Will this bucket fit a standard JCB 3CX?

Absolutely not. This bucket is for the smaller 2CX / 3CX COMPACT / MIDI CX models and supports 32 mm pins with a 164mm arm width. A standard JCB 3CX backhoe uses much larger 45 mm pins and a 175mm arm width. The two systems are not compatible.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

980/05400
980/05400
107.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
MIDI CX
OEM NUMBERS
980/05400
WIDTH (MM)
1200
PINS (MM)
32
ARM WIDTH (MM)
164
SPACING OF THE PINS (MM)
235

Specific References

MPN
980/05400
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Grading bucket 120cm suitable for JCB 2CX, 3CX COMPACT, MIDI CX

Catalog number: 980/05400
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

2,704.77 zł

net price
2199,00 zł
Available in large quantity Temporarily unavailable
2199,00 zł
net price

2,704.77 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 220 points, it gives you 88.00 zł
  • Lowest price from 30 days before the discount: 2,704.77 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    MIDI CX
    OEM NUMBERS
    980/05400
    WIDTH (MM)
    1200
    PINS (MM)
    32
    ARM WIDTH (MM)
    164
    SPACING OF THE PINS (MM)
    235
