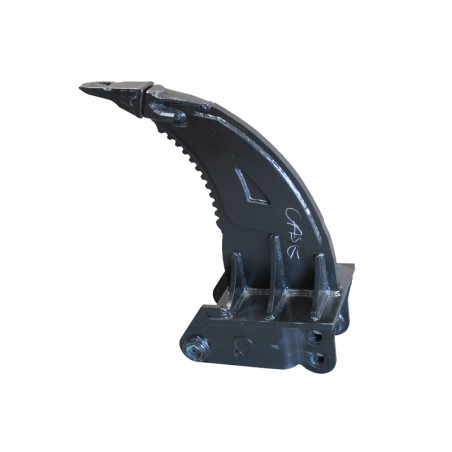

Tooth Ripper suitable for CASE 580, 590, 695 - COBRA
NEXGEN

Tooth Ripper suitable for CASE 580, 590, 695 - COBRA

Catalog number:TR-CASE Nr OEM:TR-CASE Manufacturer:NEXGEN
Add a review

Ripper Attachment suitable for CASE - TR-CASE

Technical Specification and Compatibility

A brand new, complete TR-CASE ripper by NEXGEN, ready to be mounted and used on CASE 580, 590, and 695 machines. This attachment is designed for breaking up hard, compacted soil, ripping out roots, or tearing up frozen ground. The ripper body is made of high-quality steel, while the tine (comb) is made of HB400 wear-resistant plate for maximum service life.

Part Number: TR-CASE
Type: Ripper Attachment
Tine Material: HB400 Wear-Resistant Steel
Mounting: Standard dimensions (fits quick hitches and pin-on)
Pin Diameters: 38 mm / 45 mm
Arm Widths (Hitch): 127 mm / 255 mm
Pin Centers: 362 mm

In the construction industry, machine reliability is the key to success. That's why we offer high-quality NEXGEN replacement parts for construction machinery, which meet the highest standards of durability and performance. Our products are the ideal solution for companies and specialists looking for reliable components at attractive prices.

Features of the NEXGEN TR-CASE Ripper

HB400 Steel Tine: Provides maximum abrasion resistance and a longer service life.
Solid Body: The high-quality steel body ensures resistance to cracking under heavy loads.
Universal Mount: Standard hitch dimensions (38/45mm pins, 362mm centers) allow the ripper to fit both quick hitches and standard pin-on configurations.
Ready to Work: Delivered as a complete, brand-new attachment, ready for immediate installation.

Application in machinery

Brand Type / Series / Model
CASE Backhoe Loaders: 580, 590, 695

The list above is for reference. It is crucial to verify the hitch dimensions on your machine's arm.

Related Parts and Hardware

To mount the ripper, you will need the correct pins (38mm and 45mm) and linchpins/retainers. We also recommend checking the condition of the bushings in the dipper arm.

⚠️ Safety Warning

Operating with a worn or cracked ripper is dangerous. Using it as a lever (for sideways prying) can lead to the hitch cracking, permanent damage to the excavator arm, or machine rollover. A fractured tine can send metal fragments flying.

Part Role in the Machine and Failure Diagnostics

A ripper is a work attachment that replaces the digging bucket. Its purpose is to penetrate and loosen very hard, compacted, or frozen ground, as well as tear out roots, rocks, or curbs. This prepares the ground for easier excavation with a standard bucket. The HB400 tine is the primary wear part.

  • › Visible fatigue cracks on the body or hitch welds.
  • › Significant wear (dull or short) of the HB400 tine.
  • › Ovalization of the pin holes, causing excessive play on the arm.
  • › Permanent bending (deformation) of the tine after hitting an obstacle.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Dimensions: Before purchase/installation, carefully measure your arm: pin hole diameters (38 mm and 45 mm), arm widths (127 mm and 255 mm), and pin centers (362 mm).
  2. Check Pins: Ensure your pins are not worn or oval. Mounting new attachments on worn pins will quickly damage the new hitch.
  3. Lubrication: Generously grease the pins and bushings before installation to ensure smooth movement and reduce friction.
  4. Retainers: Always use functional pin retainers (linchpins) to prevent the pins from sliding out during operation.
  5. Avoid Side Loading: Remember, a ripper is not designed for prying sideways. Only operate in line with the dipper arm.

Frequently Asked Questions (FAQ)

What do the hitch dimensions (38/45mm, 127/255mm) mean?

These are the mounting dimensions. It means one pin hole diameter is 38 mm (at 127 mm arm width), and the other is 45 mm (at 255 mm arm width). The pin spacing (center-to-center) is 362 mm. This is a critical set of dimensions to verify.

Does this ripper fit a quick hitch?

Yes, the description states that the hitch dimensions match the standard arm dimensions, which means it is compatible with both quick hitches (that pick up on pins) and traditional direct pin-on mounting.

Is the HB400 tine replaceable?

On most rippers of this class, the tine (comb) is a fixed component welded to the body. It is made of HB400 steel to be as durable as possible. Once it is worn, the entire attachment is usually replaced or sent for specialist refurbishment (hard-facing).

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TR-CASE
TR-CASE
100.00 kg

Data sheet

SUITABLE FOR
CASE
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
TR-CASE
PINS (MM)
38
45
ARM WIDTH (MM)
127
255
SPACING OF THE PINS (MM)
362

Specific References

MPN
TR-CASE
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Tooth Ripper suitable for CASE 580, 590, 695 - COBRA

Catalog number: TR-CASE
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

3,159.87 zł

net price
2569,00 zł
Last pieces Temporarily unavailable
2569,00 zł
net price

3,159.87 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 257 points, it gives you 102.80 zł
  • Lowest price from 30 days before the discount: 3,159.87 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CASE
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    TR-CASE
    PINS (MM)
    38
    45
    ARM WIDTH (MM)
    127
    255
    SPACING OF THE PINS (MM)
    362
