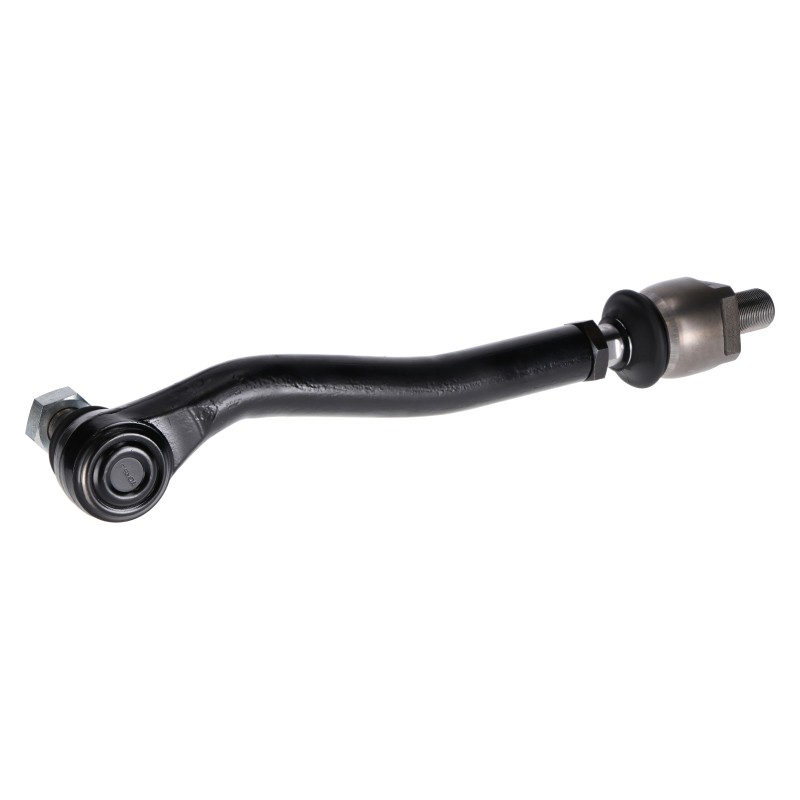

Track rod suitable for CAT M313
TORS

Track rod suitable for CAT M313

Catalog number:SKX860155T Nr OEM:243-0909 Manufacturer:TORS
Add a review

Left Steering Tie Rod 515mm suitable for CAT M313C M315D - 2430909

Technical Specification and Compatibility

Reinforced 2430909 steering tie rod from the renowned TORS brand. This is a complete subassembly (with ends), dedicated to the left side of the steering axle in Caterpillar (CAT) wheeled excavators. The product features a precise length of 515.00 mm and a massive 42 mm diameter tube, ensuring durability in C, D, and F series machines.

Part Number: 2430909
Component Type: Left Tie Rod
Total Length: 515.00 mm
Tube Diameter (Shaft): 42 mm
Threads: M28x1.5
Cone Dimensions: 28.20 mm / 32.20 mm
Manufacturer: TORS

The TORS brand guarantees reliability in construction machinery undercarriages. The use of high-grade steel and precise machining of cones and threads ensure easy installation and long service life, even under intensive use in difficult terrain.

Features of TORS 2430909 Rod

Reinforced 42mm Tube: Increased rod shaft diameter (42 mm) prevents bending during wheel impacts on obstacles or working in deep mud.
Dimensional Precision: The 515 mm length is perfectly matched to the geometry of the left side of the axle in listed CAT models, facilitating toe-in adjustment.
Solid Threads: M28x1.5 thread ensures a secure adjustment connection, resistant to stripping even at high torsional forces.
Mounting Cones: Dimensions 28.2/32.2 mm guarantee stable seating in the knuckle and cylinder, eliminating play.

Application in CAT machinery

Machine Type Models / Series
Wheeled Excavators (M300) M313 (C, D, -07), M314 (F, -07), M315 (C, D, D2, GC), M316 (C, D, F), M317 (D2), M318 (C, D, F), M319, M320 (F, D2), M323F
Material Handlers (MH) MH3022, M318D MH

Rod dedicated to the left side. CAT wheeled excavators use various axles, so we recommend length verification before purchase.

Related Parts and Hardware

The rod is complete (with joints). Castle nuts and cotter pins may be needed for installation. It is also worth checking the steering cylinder for leaks.

⚠️ Safety Warning

Wheeled excavators travel on public roads. Breakage or detachment of the steering rod while driving can lead to loss of machine control and a serious accident. Regularly check for play in the steering system.

Part Role in the Machine and Failure Diagnostics

Rod 2430909 transfers movement from the cylinder to the left wheel knuckle, allowing machine steering.

  • › Knocking in steering system (worn ball joints).
  • › Uneven tire wear (lack of wheel alignment).
  • › Machine "wanders" on the road (rod play).
  • › Damaged rubber boots (risk of joint seizure by sand).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Length Verification: This rod is 515 mm long. CAT excavators have various rod lengths (e.g., 541 mm). Be sure to measure the old part before ordering.
  2. Mounting Side: The product is intended for the LEFT side. The right rod usually has a different length or configuration.
  3. Alignment Setting: After rod replacement, correction of wheel geometry (toe-in) is necessary to ensure driving stability and tire protection.

Frequently Asked Questions (FAQ)

Is the rod adjustable?

Yes, the rod has a threaded mechanism (M28), which allows for precise length adjustment to set the toe-in.

Does it fit the right side?

In most CAT wheeled excavators, the left and right rods differ in length. We recommend checking the part number for the right side.

Why is the tube 42mm?

The 42 mm diameter ensures adequate stiffness and resistance to bending, necessary in modern, heavier wheeled excavators.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX860155T
243-0909
7.50 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
2430909

Specific References
