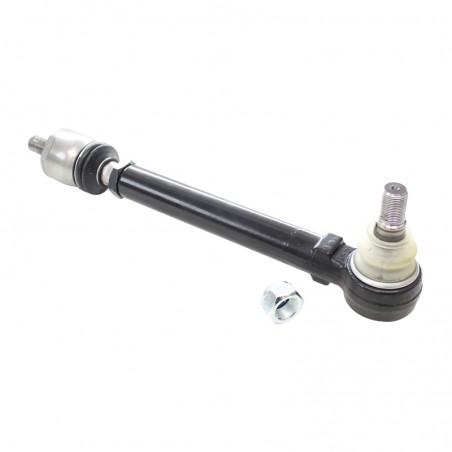

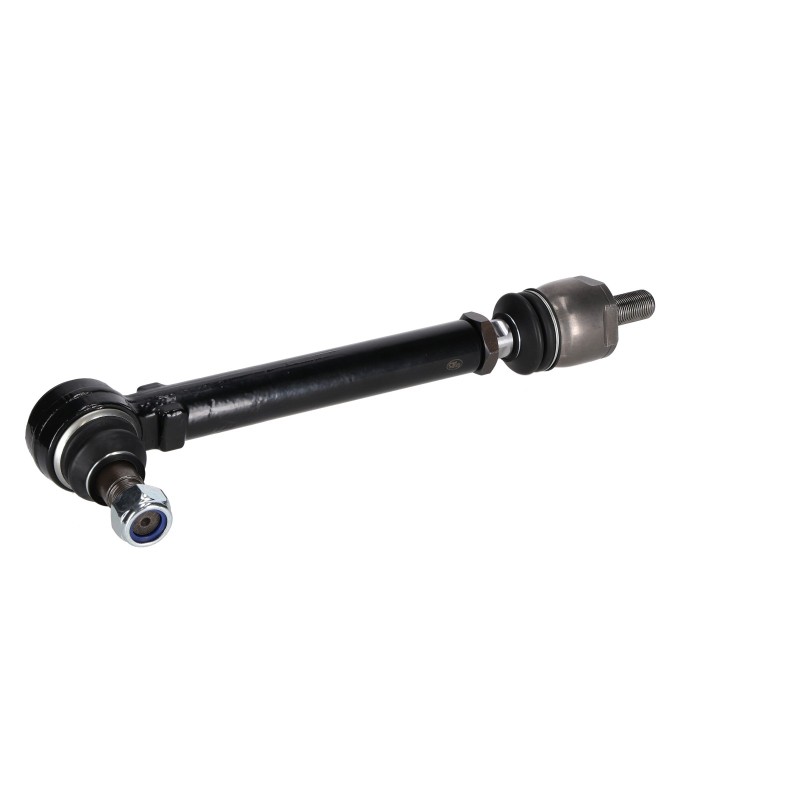

Link trackrod suitable for KOMATSU WB93R-5

Catalog number:SKX801968T Nr OEM:CA0145481 Manufacturer:TORS
Add a review

Steering Tie Rod suitable for Komatsu WB93R-5 WB97R-5 - CA0145481

Technical Specification and Compatibility

Robust CA0145481 steering tie rod assembly from the TORS product line. This is a complete connecting component (Tie Rod), dedicated to newer series of Komatsu backhoe loaders (5, 5E0, 8 series). The rod features a reinforced 34 mm diameter tube and a precise M24x1.5 adjustment thread. Terminated with joints having different cone dimensions of 23.50 mm and 26.50 mm.

Part Number: CA0145481
Component Type: Steering Tie Rod
Tube Diameter (Shaft): 34 mm
Threads: M24x1.5
Cone Dimensions: 23.50 mm / 26.50 mm
Manufacturer: TORS

The TORS brand specializes in manufacturing suspension components with increased fatigue resistance. Precise execution of threads and cones ensures easy installation and long-lasting operation in difficult construction conditions.

Features of TORS CA0145481 Rod

Precise Fit: 23.5/26.5 mm cones guarantee stable seating in the knuckle and cylinder, eliminating the risk of play development.
Durable Construction: The 34 mm diameter tube made of alloy steel is resistant to bending forces, which is crucial when working in deep ruts.
Length Adjustment: M24x1.5 thread allows for smooth correction of wheel toe-in, which directly affects the reduction of tire wear.
Complete Set: The product is supplied with installed ends (joints), ready for installation in the machine.

Application in Komatsu machinery

The rod fits the following models (please verify Serial Number - S/N):

Machine Model Serial Number Range (S/N)
WB93R-5 F50003-Up
WB93R-5E0 F60003-UP, F61569-UP, F61778-UP (Russia), F70001-UP
WB93R-8 F80004-UP
WB97R-5 F50003-Up
WB97R-5E0 F80003-Up, F80211-UP, F90001-UP
WB146-5 / PS-5 A23001-UP, A43001-UP
WB156-5 / PS-5 A63001-UP, A73001-UP

Related Parts and Hardware

The rod is a complete element. New safety nuts (castle nuts) and cotter pins may be required for proper installation. We also recommend checking the condition of the steering cylinder seals.

⚠️ Safety Warning

Driving with a damaged steering rod poses a direct threat in road traffic and on the construction site. Joint play causes imprecise handling and accelerated tire wear. Regularly check the condition of the steering system.

Part Role in the Machine and Failure Diagnostics

Rod CA0145481 is a key element transferring the steering force from the cylinder to the machine wheels.

  • › Knocking when turning (play on ball studs).
  • › Uneven tread wear (incorrect alignment).
  • › Delayed response to steering wheel movement.
  • › Damaged rubber boot (risk of joint seizure by sand).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Cone Verification: Ensure your machine requires 23.5/26.5 mm cones. Different bridge variants occur in Komatsu. Measure the cone diameter at the narrowest and widest points.
  2. Socket Cleaning: Before installation, clean and degrease the conical sockets in the knuckle and cylinder. Leaving grease can cause the socket to crack when tightening.
  3. Wheel Alignment: After replacing the rod, be sure to adjust the wheel toe-in to ensure driving stability and tire protection.

Frequently Asked Questions (FAQ)

Is the rod adjustable?

Yes, the rod has a threaded mechanism (M24x1.5), which allows for precise length adjustment to set the alignment.

Does it fit older models WB93R-2?

Typically not. Older -2 series models often require different rods (e.g., CA0140265). This model is dedicated mainly to newer series (5, 5E0, 8). Always check the S/N.

Why is the tube 34mm?

The 34 mm diameter ensures adequate stiffness and bending strength, necessary in modern, heavier backhoe loaders.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX801968T
CA0145481
4.00 kg

Data sheet

SUITABLE FOR
KOMATSU
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
CA0145481

Specific References

MPN
CA0145481
