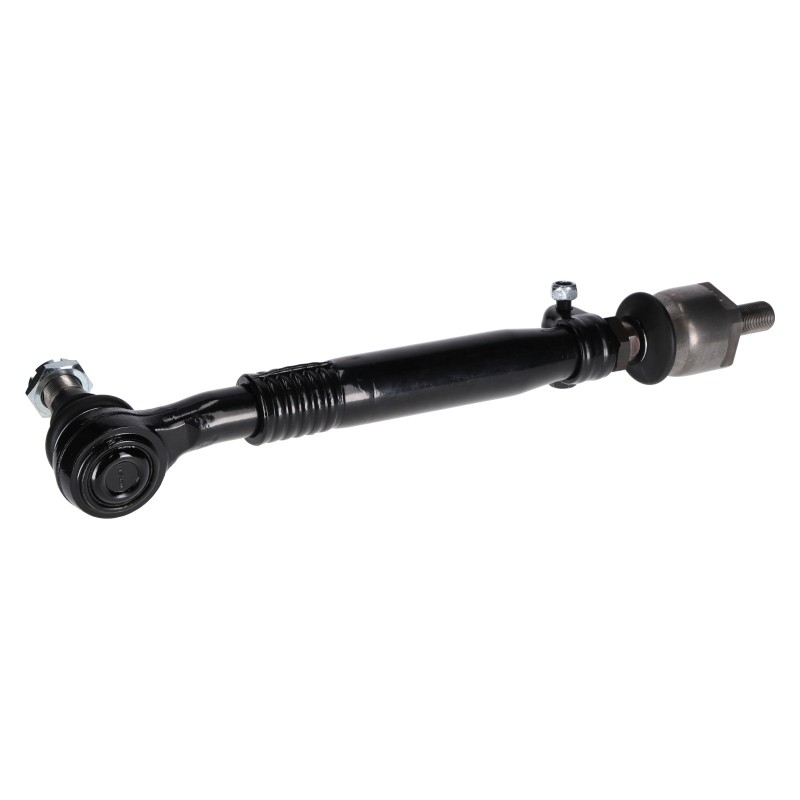

Track rod suitable for CAT M315
TORS

Track rod suitable for CAT M315

Catalog number:SKX860168T Nr OEM:132-6521 Manufacturer:TORS
Add a review

Left Steering Tie Rod (541.5mm / 50mm Tube) for CAT M315C - 1326521

Technical Specification and Compatibility

Reinforced 1326521 steering tie rod by the renowned TORS brand. This is a complete assembly (including ends), designed specifically for the left side of the steering axle in Caterpillar (CAT) C-series wheeled excavators. It is distinguished by a massive construction – a 50 mm diameter tube – essential for handling forces in 15-18 ton machines. The total length of the component is 541.50 mm.

Part Number: 1326521
Mounting Side: Left Hand (LH)
Type: Complete Steering Rod
Total Length: 541.50 mm
Tube Diameter (Shaft): 50 mm
Threads: M28x1.5
Cone Dimensions: 28.90 mm / 32.20 mm
Manufacturer: TORS

The TORS brand guarantees safety in heavy construction machinery. The use of a thickened profile (50mm) and high-grade steel ensures resistance to extreme loads occurring when operating a wheeled excavator in rough terrain.

Features of TORS 1326521 Rod

Heavy Duty Construction: The 50 mm tube diameter is significantly larger than in standard machines, preventing rod bending when the wheel hits an obstacle.
Precise Cones: Dimensions 28.9/32.2 mm are perfectly matched to CAT axle knuckles, eliminating the risk of assembly play.
Adjustment Thread: Strong M28x1.5 thread allows for precise wheel toe-in correction, which is key for machine stability at higher speeds.
Joint Protection: High-quality rubber boots protect the ball studs from mud, sand, and water.

Application in CAT machinery

Machine Type Models
Wheeled Excavators M315C, M316C, M318C

The rod is dedicated to the left side of the axle. Other rod versions exist for D and F series models, so we recommend dimensional verification.

Related Parts and Hardware

To mount the rod, castle nuts with cotter pins or self-locking nuts are required. When replacing the rod, it is worth checking for play on the knuckles and the condition of the steering cylinder.

⚠️ Safety Warning

Wheeled excavators travel at speeds up to 30-40 km/h. Steering rod failure while driving can lead to a tragic accident. System play causes dangerous machine "wandering" on the road.

Part Role in the Machine and Failure Diagnostics

Rod 1326521 transfers movement from the hydraulic cylinder to the wheel knuckle, enabling steering of the 18-ton machine.

  • › Knocking in suspension (ball joint play).
  • › Unstable driving (lack of wheel alignment).
  • › Cracked rubber boots (risk of joint seizure).
  • › Rod tube bending (visible to the naked eye).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Length Verification: The exact length is 541.50 mm. M300 excavators have various axle variants. Measure the old rod before ordering.
  2. Mounting Side: The product is dedicated to the left side. The right rod may have a different length or geometry.
  3. Alignment: After replacing the rod, checking and adjusting the front wheel toe-in is necessary to avoid tire scrubbing.

Frequently Asked Questions (FAQ)

Why is the tube so thick (50mm)?

M300 series wheeled excavators weigh several tons. The rod must withstand enormous forces when turning in boggy terrain, hence such a massive construction.

What wrench for the lock nut?

The M28x1.5 thread requires large open-end wrenches (typically in the 36-41 mm range). It's worth preparing suitable tools before replacement.

Does it fit the right side?

Usually, in these models, the left and right rods differ in length. We recommend using the part number dedicated to the specific side.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

TORS
SKX860168T
132-6521
7.50 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
1326521
