• Tooth Bucket suitable for JCB 4CX 3CX - SHARK / NEW MODEL
  • Tooth Bucket suitable for JCB 4CX 3CX - SHARK / NEW MODEL - 333/D8455
Tooth Bucket suitable for JCB 4CX 3CX - SHARK / NEW MODEL
HIMACORE

Tooth Bucket suitable for JCB 4CX 3CX - SHARK / NEW MODEL

Catalog number:SKX987925HM Nr OEM:333/D8455 Manufacturer:HIMACORE
Add a review

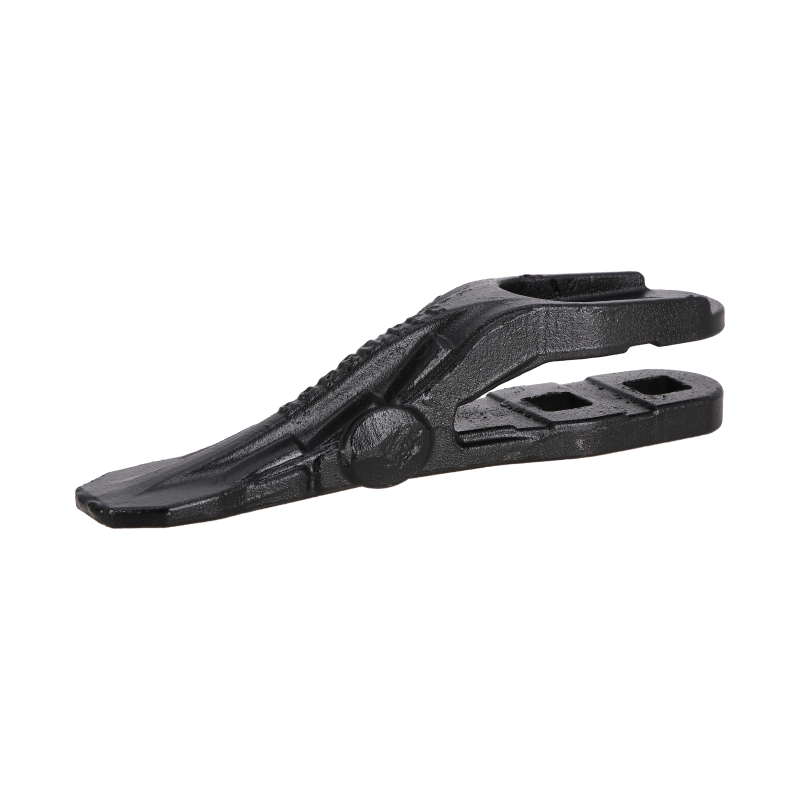

Shark Central Bolt-on Tooth for JCB 3CX 4CX - 333/D8455

Technical Specification and Compatibility

Technologically advanced 333/D8455 central tooth (tip) from the NEXGEN line. This is an improved Shark (Twin Strap) version, mounted with bolts (Bolt-On). Dedicated to JCB 3CX, 4CX backhoe loaders and 80xx series mini excavators. The specially profiled shape with side ribbing ("Fish Scale") ensures self-sharpening during operation, significantly extending its efficiency.

Part Number: 333/D8455
Alternative Numbers: 332/C4388, 400/F0341
Type: Shark / Twin Strap Bolt-on Tooth
Blade Thickness: 21 mm
Bolt Spacing: 44.5 mm (center to center)
Hardness: 48-52 HRC
Tensile Strength: ≥ 1400 Rm-N/mm²
Impact Strength: ≥ 20J

NEXGEN products represent a new generation of work attachments. The forged Shark tooth features a condensed material structure, making it much more resistant to cracking in hard ground than standard castings.

Features of NEXGEN 333/D8455 Tooth

Self-Sharpening Tech: The ribbed side structure (Fish Scale) ensures the tooth wears in a way that maintains a sharp cutting edge throughout its life.
Ergonomic Shape: Streamlined profile facilitates ground penetration and material flow into the bucket, reducing digging resistance and fuel consumption.
Twin Strap Design: Double mounting strap (top and bottom) stabilizes the tooth on the blade, preventing loosening and breakage.
Universal Bolt-on: Mounting on standard plow bolts eliminates the need for welding, speeding up replacement on the construction site.

Application in JCB machinery

Machine Type Models / Series
Backhoe Loaders 3CX, 4CX, 5CX, 2CX, 214, 215, 217 (various years, incl. Servo, Sitemaster, Super)
Mini Excavators 8014-8085 (ZTS, CTS series), 15C-100C (new gen), 8060, 8080
Telehandlers Loadall: 520, 526, 531, 535, 540, 541 (with digging buckets)
Skid Steer Loaders Robot, 1CX, 1105, 185

Fits most JCB digging buckets with a blade thickness of up to 20-22 mm and hole spacing of 44-45 mm. Also compatible with other mini excavators using the JCB system.

Related Parts and Hardware

The tooth is mounted with two 3/4" plow bolts and nuts. Note: price is for the tooth only. Bolts must be purchased separately, matching their length to the blade thickness.

⚠️ Safety Warning

Working without a central tooth exposes the bucket's base edge to direct wear. Wearing out the blade at the tooth mounting point (hole ovalization) may prevent subsequent installation of a new tip and force costly bucket regeneration.

Part Role in the Machine and Failure Diagnostics

Tooth 333/D8455 is the main working element of the bucket, responsible for breaking the ground.

  • › Edge rounding (decrease in digging efficiency).
  • › Crack across holes (impact or bad tightening effect).
  • › Loose bolts (risk of losing the tooth).
  • › Wear down to the blade line (immediate replacement required).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Bolt Spacing: This tooth has 44.5 mm spacing (JCB standard). If your bucket has approx. 80-100 mm spacing, you need CAT type teeth. Check this!
  2. Cleanliness: Clean the bucket blade of rust and dirt before bolting. The tooth must lie flat. Unevenness can cause it to crack when tightened.
  3. Bolts: Always use new plow bolts of appropriate hardness. Old bolts are stretched and may break under load.

Frequently Asked Questions (FAQ)

Is this a corner or central tooth?

This is a central (middle) tooth, symmetrical. For bucket sides (corners), corner teeth (left/right) with a different shape protecting the bucket cheeks are used.

Does it fit a mini excavator?

Yes, if the mini excavator (e.g., JCB 8060) has a bucket with the JCB system (approx. 45mm bolt spacing). It fits many machines in the 1.5 - 9 ton range.

What does the Shark model offer?

The Shark model features a reinforced, ribbed structure and a "scaly" side profile, which promotes self-sharpening and facilitates ground penetration.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX987925HM
333/D8455
2.20 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
MINIEXCAVATOR
OEM NUMBERS
531/03205 / 332/C4388 / 400/F0341 / 333/D8455
CUTTING EDGE THICKNESS
21
BOLT SPACING
44,5

Specific References

MPN
333/D8455
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Tooth Bucket suitable for JCB 4CX 3CX - SHARK / NEW MODEL

Catalog number: SKX987925HM
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

34.43 zł

net price
27,99 zł
Available in large quantity Temporarily unavailable
27,99 zł
net price

34.43 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 3 points, it gives you 1.20 zł
  • Lowest price from 30 days before the discount: 34.43 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    MINIEXCAVATOR
    OEM NUMBERS
    531/03205 / 332/C4388 / 400/F0341 / 333/D8455
    CUTTING EDGE THICKNESS
    21
    BOLT SPACING
    44,5
