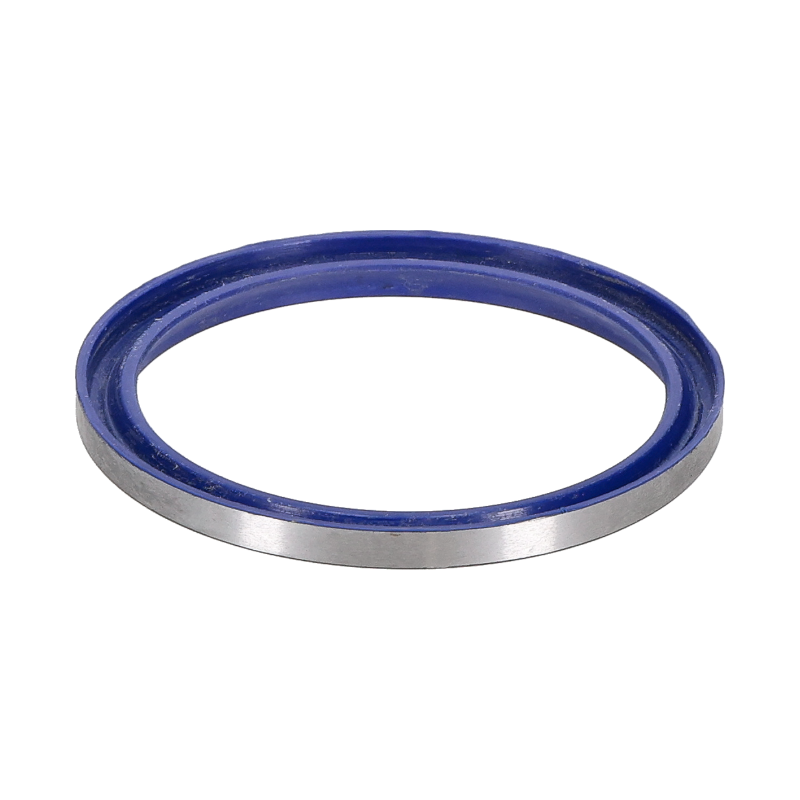

Seal for 70mm pins
GX-AFTER

Seal for 70mm pins

Catalog number:SKX948456A Nr OEM:813/00456 Manufacturer:GX-AFTER
Add a review

70MM PIN SEAL SUITABLE FOR JCB 3CX, 4CX - 813/00456

Technical Specification and Compatibility

A high-quality universal lip seal for 70 mm diameter pins. Its function is to protect the arm joints from external contaminants (dust, water, mud) and to keep grease inside the bushing. It is a key component that drastically extends the service life of pins and bushings by preventing their premature wear.

Part number: 813/00456
Inner Diameter (mm): 70
Outer Diameter (mm): 83.5
Height (mm): 6
Material: Metal + Rubber

GX-AFTER is the smart choice for your machine. We provide high-class replacement parts that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Essential for Assembly

  • › Pins and bushings: For a complete rebuild of the joint and to ensure a tight fit.
  • › HYPTRON high-pressure grease: To protect the pin and bushings from seizing.

Application in machines

Brand (Machine Type) Example Application
JCB (Backhoe Loaders) 3CX, 4CX - kingpost, arm, and bucket pins
JCB (Telehandlers) Loadall - boom and attachment pins
JCB (Wheel Loaders) Articulation and boom pins

The list above is for reference. Before purchasing, we recommend verifying the dimensions on your machine.

⚠️ Safety Warning

Replacing pin seals requires dismantling heavy arm components. Always secure the arm from falling using the service lock and certified axle stands. Never rely solely on the machine's hydraulics. Use safety glasses and gloves.

Part's Role in the Machine and Failure Diagnostics

The seal protects the joint from dirt and water, which act like sandpaper, destroying the pin and bushings. A damaged seal causes grease to be washed out quickly, leading to accelerated wear of the entire joint.

  • › Grease leaks out of the joint immediately after greasing.
  • › Visible cracks, perishing, or missing sections of the seal.
  • › Accelerated wear of the pin and bushing, rapid development of play.

Peace of Mind Guarantee: Why Choose Our Offer?

A damaged seal is a direct path to a destroyed pin and bushing.

The cost of a new seal is negligible compared to the cost of replacing the entire joint and re-boring the worn-out holes. Don't take the risk – order new, durable GX-AFTER seals and provide maximum protection for your pins.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Clean the housing: Before installation, thoroughly clean the bore in the arm of old seal remnants, rust, and dirt.
  2. Replace during overhaul: Always replace seals when replacing pins and bushings.
  3. Use appropriate tools: Use a sleeve with the same diameter as the seal's outer edge to drive it in, to avoid damaging it.
  4. Lubricate before assembly: Lubricate the seal lip with grease to ease pin installation and prevent damage.

Frequently Asked Questions (FAQ)

1. I have play on a pin. Will replacing just the seal help?

No. The seal protects against contaminants but does not take up play. If there is noticeable play in the joint, it means the pin and bushings are already worn and should be replaced as a set with new seals.

2. What is the function of the metal ring inside the seal?

The metal ring (or casing) provides structural rigidity to the seal and allows it to be tightly and securely pressed into its housing in the arm. The outer rubber part ensures a tight seal with the housing.

Key Advantages

🛡️

Joint Protection

Keeps grease in and dirt out.

🎯

Longer Lifespan

Extends the life of pins and bushings.

📦

High Durability

Material resistant to grease, oil, and wear.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX948456A
813/00456
0.03 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
813/00456
OUTER DIAMETER (MM)
83,5
INNER DIAMETER (MM)
70
HEIGHT (MM)
6

Specific References

MPN
813/00456
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Seal for 70mm pins

Catalog number: SKX948456A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

3.87 zł

net price
3,15 zł
Available in large quantity Temporarily unavailable
3,15 zł
net price

3.87 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 1 points, it gives you 0.40 zł
  • Lowest price from 30 days before the discount: 3.87 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    TELESCOPIC HANDLER
    WHEELED LOADER
    OEM NUMBERS
    813/00456
    OUTER DIAMETER (MM)
    83,5
    INNER DIAMETER (MM)
    70
    HEIGHT (MM)
    6
