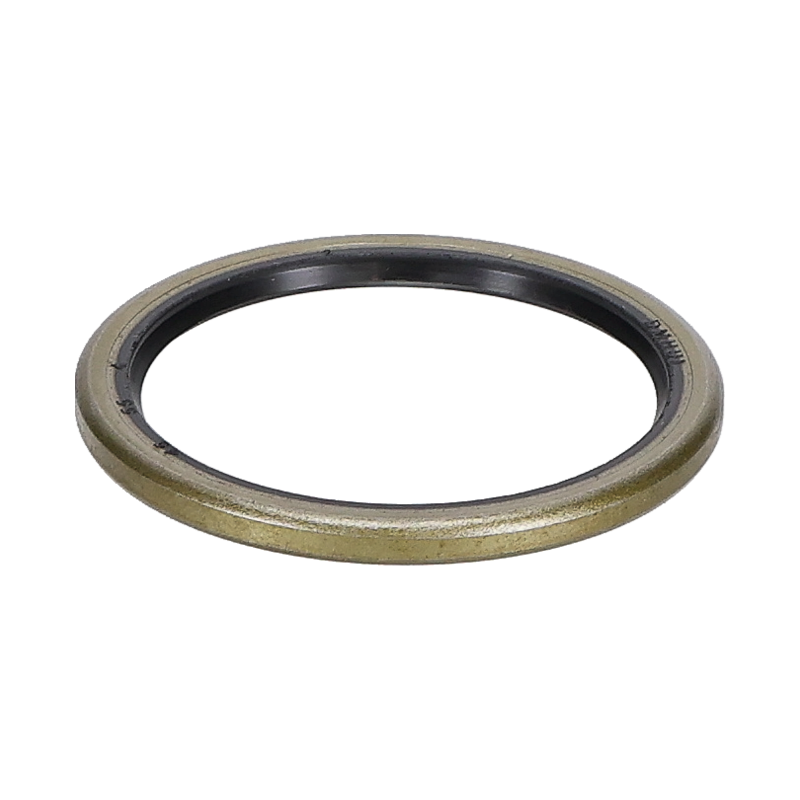

Pin seal - 45mm
VICORTEX

Pin seal - 45mm

Catalog number:813/00425VX Nr OEM:813/00425 Manufacturer:VICORTEX
Add a review

PIN WIPER SEAL (45x55x5) VICORTEX SUITABLE FOR JCB - 813/00425

Specification & Compatibility

Product: Pin Wiper Seal / Dust Seal
Producer: VICORTEX
Dimensions: 45mm (Inner Ø) x 55mm (Outer Ø) x 5mm (Height)
Application (Pin Joints):
JCB Backhoe Loaders

2CX, 2DX, 3CX, 4CX, MIDI CX

Other JCB Machines

Telescopic Handlers, Wheeled Loaders, Mini Excavators

Part Number: 813/00425
Part Type: High-quality replacement

Essential for Installation

45mm Pin (that this seal fits)
Bushes for the Joint (for a complete overhaul)
HYPTRON High-Pressure Grease

What does this part do and what are the symptoms of wear?

A pin wiper seal is the first line of defense for every pivot joint on a machine. Its job is to retain grease inside the bush while protecting it from destructive contaminants – sand, water, and dust. If you notice excessive grease being pushed out, and the pin joint quickly develops play despite regular greasing, these are classic symptoms of a worn or cracked seal. A faulty seal leads to rapid wear of the bush and pin, resulting in a costly repair.

Parameters That Guarantee Reliability

🛡️

Effective Protection

Protection from dirt and water

💪

High Abrasion Resistance

Long life in harsh conditions

🎯

Perfect Fit

Guaranteed 100% seal

Why Choose a VICORTEX Seal?

✔Precise Manufacturing

The accuracy and quality of materials guarantee long and trouble-free use without the need for frequent replacement.

✔Compatibility with Original Parts

The seal is fully adapted to work with original pins and bushes, ensuring a consistent repair.

✔Savings Without Compromise

The VICORTEX brand is a proven and safe alternative that offers quality comparable to original parts at a much better price.

Important Fitting / Service Tips

1.Always Replace When Re-pinning

Wiper seals are single-use parts. Always replace them whenever you replace pins and bushes.

2.Clean the Mounting Bore

Before installing a new seal, thoroughly clean its bore in the arm or bucket of rust, dirt, and old seal residue.

3.Use Appropriate Tools

Use a press or special sleeves for installation. Hitting with a hammer or prying with a screwdriver will damage the sealing lip.

4.Lubricate Before Installation

Before installation, lubricate the seal with clean grease, e.g. HYPTRON. This will facilitate installation and prevent damage during first use.

Frequently Asked Questions (FAQ)

Question: I have a lot of play in my pin. Will a new seal fix it?

Answer: No. The seal prevents play from developing but does not eliminate it. If play is already present, the complete set must be replaced: pin, bushes, and seals.

Question: Can I reuse the old seal?

Answer: This is highly not recommended. The seal is almost always deformed or damaged during removal. Reusing it will not provide an effective seal.

Question: Why is this seal so important?

Answer: It is the cheapest component of a pin joint that protects the much more expensive parts - the pin and bushes - from destruction. Regular replacement of seals is the easiest way to extend the life of your attachment.

Why Choose VICORTEX Parts?

In the world of construction machinery, where every ton and every minute counts, the integrity of hydraulic and engine systems is the foundation of reliability. At VICORTEX, we understand that it is the quality of the seals that determines the power of a cylinder, the life of an engine, and the continuity of your work. That is why our mission is to deliver components that are not a compromise, but a guarantee of confidence and durability.

We specialize in producing complete solutions for your fleet: from seal kits for hydraulic cylinders, through complete engine gasket sets with head gaskets, to precision oil seals, o-rings, and sealing rings. Our offer is complemented by V-belts and innovative wear pads with polyamide additives, which guarantee minimal friction and maximum service life.

By choosing VICORTEX, you are investing in technology and materials that work as hard as you do.

Question mark

If you are unsure whether the selected product is suitable for your machine, contact us and we will help you choose the right part and provide practical advice in minutes.

813/00425VX
813/00425
0.01 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
MINIEXCAVATOR
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
813/00425
OUTER DIAMETER (MM)
55
INNER DIAMETER (MM)
45
HEIGHT (MM)
5

Specific References

MPN
813/00425
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Pin seal - 45mm

Catalog number: 813/00425VX
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

4.78 zł

net price
3,89 zł
Available in large quantity Temporarily unavailable
3,89 zł
net price

4.78 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 1 points, it gives you 0.40 zł
  • Lowest price from 30 days before the discount: 4.78 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    MINIEXCAVATOR
    TELESCOPIC HANDLER
    WHEELED LOADER
    OEM NUMBERS
    813/00425
    OUTER DIAMETER (MM)
    55
    INNER DIAMETER (MM)
    45
    HEIGHT (MM)
    5
