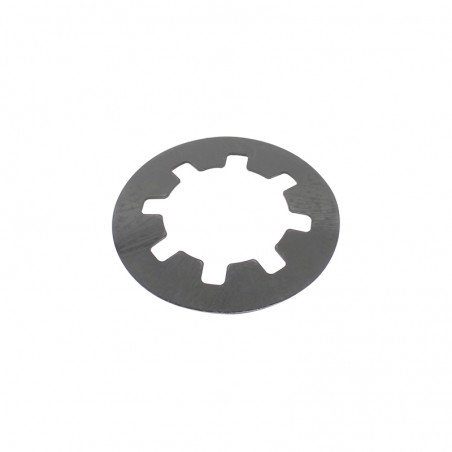

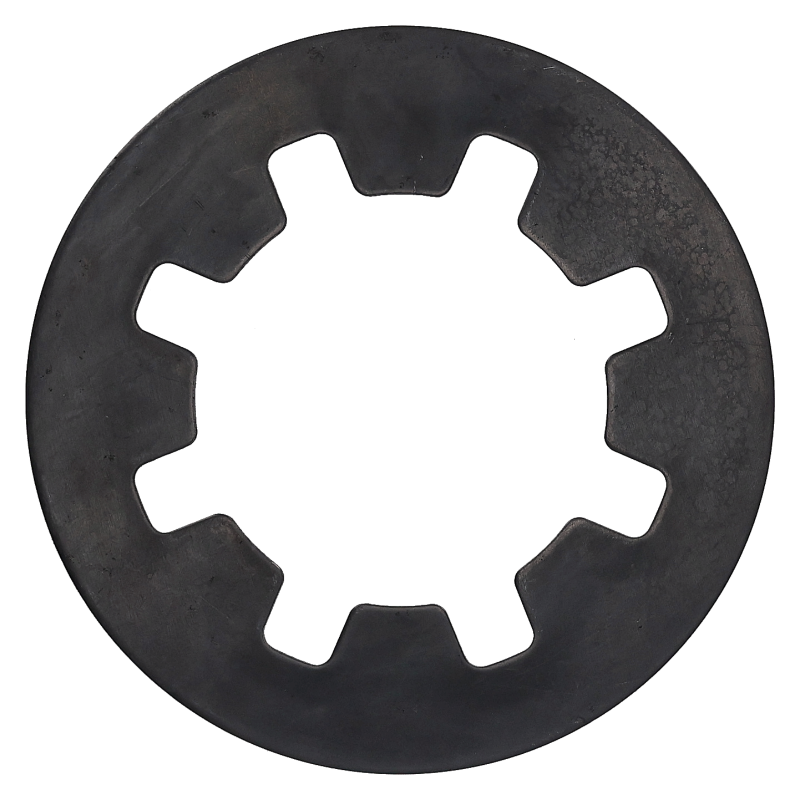

Clutch pressure plate suitable for JCB
GX-AFTER

Clutch pressure plate suitable for JCB

Catalog number:814/00207A Nr OEM:814/00207 Manufacturer:GX-AFTER
Add a review

CLUTCH DIAPHRAGM SPRING SUITABLE FOR JCB - 814/00207

Specification & Compatibility

Product: Clutch Pack Diaphragm Spring
Producer: GX-AFTER
Material: High-grade spring steel
Application (Syncro Shuttle / Powershift Gearboxes):
JCB Backhoe Loaders

3CX, 4CX

Other JCB Machines

Telescopic Handlers, Forklifts

Part Number: 814/00207
Replaces Part Number: 04/500235
Part Type: High-quality replacement

Essential for Installation

Friction and Steel Plates (absolutely recommended to replace as a set)
Clutch Piston Seal Kit
REDX Transmission Oil Filter
HYPTRON Transmission Oil

What does this part do and what are the symptoms of wear?

The diaphragm spring is the central component of the clutch pack in the gearbox. It acts as a disc spring that generates enormous force to press the set of friction and steel plates, which engages a gear or direction of travel. If your machine is "slipping" in gear, loses drive when hot, jerks when changing direction, or the transmission is overheating, these are classic symptoms of a worn or cracked diaphragm spring. A fatigued spring does not provide enough clamping force, which leads to burnt discs and the destruction of the entire clutch pack.

Parameters That Guarantee Reliability

💪

High Fatigue Strength

Long and trouble-free operation

⚙️

Perfect Operating Characteristics

Full power transmission

🎯

Precise Manufacturing

Smooth and quiet clutch operation

Why Choose a GX-AFTER Diaphragm Spring?

✔Precise Manufacturing

The accuracy and quality of materials guarantee long and trouble-free use without the need for frequent replacement.

✔Compatibility with Original Parts

The spring is fully adapted to work with original friction discs, steel plates, and clutch drums, ensuring a consistent repair.

✔Savings Without Compromise

The GX-AFTER brand is a proven and safe alternative that offers quality comparable to original parts at a much better price.

Important Fitting / Service Tips

1.Always Replace the Entire Clutch Pack

Replacing just the diaphragm spring is a mistake. It should always be replaced as a complete set with new friction discs and steel plates.

2.Absolutely Replace Piston Seals

With every clutch pack replacement, a new set of seals for the clutch piston must be installed. This will ensure proper pressure and clamping force.

3.Soak Friction Discs in Oil

Before installation, soak the new friction discs in clean transmission oil (e.g., HYPTRON) for at least 30 minutes. This will prevent them from burning out on the first engagement.

4.Refill with New Oil and Filter

After the repair, fill the gearbox with fresh, dedicated oil and install a new oil filter (e.g., from REDX). Debris from the old discs contaminates the entire system.

Frequently Asked Questions (FAQ)

Question: My machine is slipping in one gear. Is this part at fault?

Answer: Yes, this is the main symptom. Clutch "slippage," meaning a lack of full power transmission, most often indicates that the entire clutch pack, including the pressure spring, is worn.

Question: Can I replace just the spring without the friction discs?

Answer: It is highly not recommended. The spring, discs, and plates wear out as a set. Installing a new spring with old, worn discs will not restore full performance and risks rapid failure.

Question: What is the main cause of clutch pack failure?

Answer: The most common causes are contaminated or old oil (due to a clogged filter), low oil level, or leaks on the clutch piston, which cause insufficient clamping pressure.

Question mark

If you are unsure whether the selected product is suitable for your machine, contact us and we will help you choose the right part and provide practical advice in minutes.

814/00207A
814/00207
0.12 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
FORKLIFT
TELESCOPIC HANDLER
OEM NUMBERS
814/00207 / 04/500235
OUTER DIAMETER (MM)
134,7
INNER DIAMETER (MM)
73,6
THICKNESS (MM)
1,8
NUMBER OF TEETH
8

Specific References

MPN
814/00207
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Clutch pressure plate suitable for JCB

Catalog number: 814/00207A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

17.65 zł

net price
14,35 zł
Available in large quantity Temporarily unavailable
14,35 zł
net price

17.65 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 1 points, it gives you 0.40 zł
  • Lowest price from 30 days before the discount: 17.65 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    FORKLIFT
    TELESCOPIC HANDLER
    OEM NUMBERS
    814/00207 / 04/500235
    OUTER DIAMETER (MM)
    134,7
    INNER DIAMETER (MM)
    73,6
    THICKNESS (MM)
    1,8
    NUMBER OF TEETH
    8
