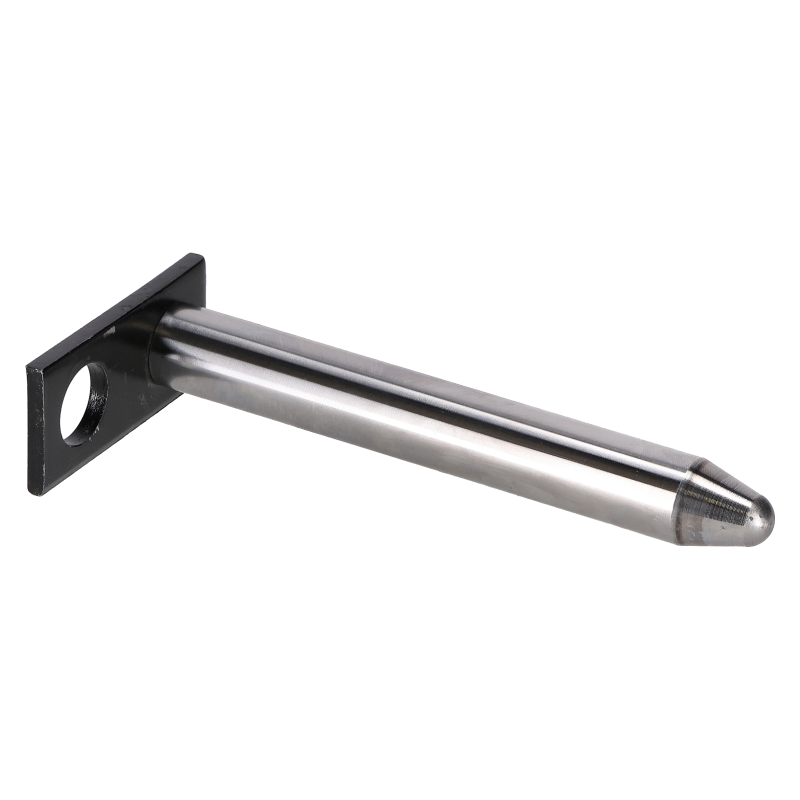

Pin pivot rear bucket suitable for JCB 801/802 mini excavator
GX-AFTER

Pin pivot rear bucket suitable for JCB 801/802 mini excavator

Catalog number:SKX943940A Nr OEM:911/23900 Manufacturer:GX-AFTER
Add a review

Bucket Mounting Pin (Flanged) 25x198 mm suitable for JCB - 911/23900

Technical Specification and Compatibility

A high-quality 911/23900 bucket mounting pin by GX-AFTER. This is a key component that connects the excavator bucket to the dipper arm or linkage (tipping link) on JCB mini excavators (801x, 8020 series) and MICRO/MINI CX backhoe loaders. The pin features a flange (collar) for easy installation and positioning. Precise dimensions (25 mm diameter, 198 mm length) guarantee a perfect fit and secure transfer of digging forces.

Part Number: 911/23900
Type: Bucket Mounting Pin (with Flange/Collar)
Diameter: 25 mm
Length: 198 mm

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Features of the 911/23900 Pin

High Strength: Made from hardened steel, resistant to shearing, bending, and abrasive wear.
Precise Fit: A 25 mm diameter ensures a perfect fit in the bushings, minimizing working play.
Flanged Design: The collar simplifies installation, positions the pin correctly, and prevents axial movement.
Corrosion Resistant: The pin surface is treated to resist pitting corrosion, which aids future removal.

Application in machinery

Brand Series / Model
JCB Mini Excavators: 801 (1989-1993), 801.4 (1993-1998), 801.5 (1994-1998), 801.6 (1994-1998), 8014 (1998-2013), 8015 (1998-2005), 8016 (1998-2013), 8017 (1998-2005), 8018 (1998-2013), 8018 CTS (2011-2018), 8020 (2007-2012), 8020CTS (2012-2014), 803 (1991-1994)
JCB Mini Backhoe Loaders: MINI CX 2WD (2004-2007), MINI CX 4WD (2006-2009)
JCB Micro Excavators: MICRO (2002-2013), MICRO PLUS (2002-2010)
JCB Military Products: 8018 CTSM (2011)
JCB Attachments: Breakers (HM 65, HM 80, HM 012T), Grab (KERBMASTER)

The list above is for reference. It is crucial to verify the dimensions (25x198 mm) in your machine.

Related Parts and Hardware

Pin 911/23900 is a key linkage component. To fully eliminate play, we recommend replacing it along with a set of bushings (in the arm, linkage, and bucket) and new retainers (e.g., a lynch pin).

⚠️ Safety Warning

Operating with a worn, cracked, or improperly secured bucket pin is extremely dangerous. It can lead to the bucket suddenly detaching from the arm during operation, which risks dropping a load and poses a fatal threat to bystanders.

Part Role in the Machine and Failure Diagnostics

Pin 911/23900 is a hardened steel rod that creates a pivot joint. In JCB 801x mini excavators, it is most often used as the main pin connecting the bucket to the quick hitch or directly to the dipper arm. It transfers all digging and lifting forces from the bucket to the machine.

  • › Audible and palpable play (knocking) at the bucket-to-arm joint.
  • › "Ovalization" (egging) of the holes in the bucket or arm (a result of working with a loose pin).
  • › Visible wear ("scarfing") or reduction in diameter on the pin's working surface.
  • › Difficulty installing or removing the pin (due to bending or corrosion).
  • › Visible fatigue cracks, especially near the flange.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Dimensions: Ensure the pin diameter is 25 mm and the length is 198 mm.
  2. Replace with Bushings: Installing a new pin into old, worn (oval) bushings is pointless. Always replace pins and bushings as a set to eliminate play.
  3. Clean Installation: Thoroughly clean the bushing bores and pin holes of rust, dirt, and old grease.
  4. Generous Lubrication: Before installation, generously lubricate the pin and bushings with heavy-duty grease (e.g., EP2). Ensure the grease nipple is functional.
  5. New Retainer: Always use a new, strong retainer (lynch pin or bolt) to prevent the pin from sliding out during operation.

Frequently Asked Questions (FAQ)

What does "flanged pin" mean?

It means the pin has a "head" or "collar" on one end, much like a bolt. This simplifies installation, positions the pin at the correct depth, and prevents it from sliding out in one direction.

Does this pin fit a quick hitch?

This pin (911/23900) is used to attach the bucket (or the quick hitch itself) to the dipper arm or linkage. If you already have a quick hitch, you will need different, shorter pins to attach the bucket to the hitch.

Znak zapytania

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX943940A
911/23900
0.86 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
MICRO
MINI CX
MINIEXCAVATOR
OEM NUMBERS
911/23900
OUTER DIAMETER (MM)
25
LENGTH (MM)
198
PIN WITH COLLAR
YES

Specific References

MPN
911/23900
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Pin pivot rear bucket suitable for JCB 801/802 mini excavator

Catalog number: SKX943940A
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

31.92 zł

net price
25,95 zł
Temporarily unavailable
25,95 zł
net price

31.92 zł

gross price
  • You will receive 3 points, it gives you 1.20 zł
  • Lowest price from 30 days before the discount: 31.92 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    MICRO
    MINI CX
    MINIEXCAVATOR
    OEM NUMBERS
    911/23900
    OUTER DIAMETER (MM)
    25
    LENGTH (MM)
    198
    PIN WITH COLLAR
    YES
