Pin pivot rear bucket suitable for JCB 1CX, Mini Excavators 802/804
GX-AFTER

Pin pivot rear bucket suitable for JCB 1CX, Mini Excavators 802/804

Catalog number:SKX948390A Nr OEM:232/01100 Manufacturer:GX-AFTER
Add a review

Bucket Mounting Pin (35x250mm) suitable for JCB 1CX / 803 / 804 - 232/01100

Technical Specification and Compatibility

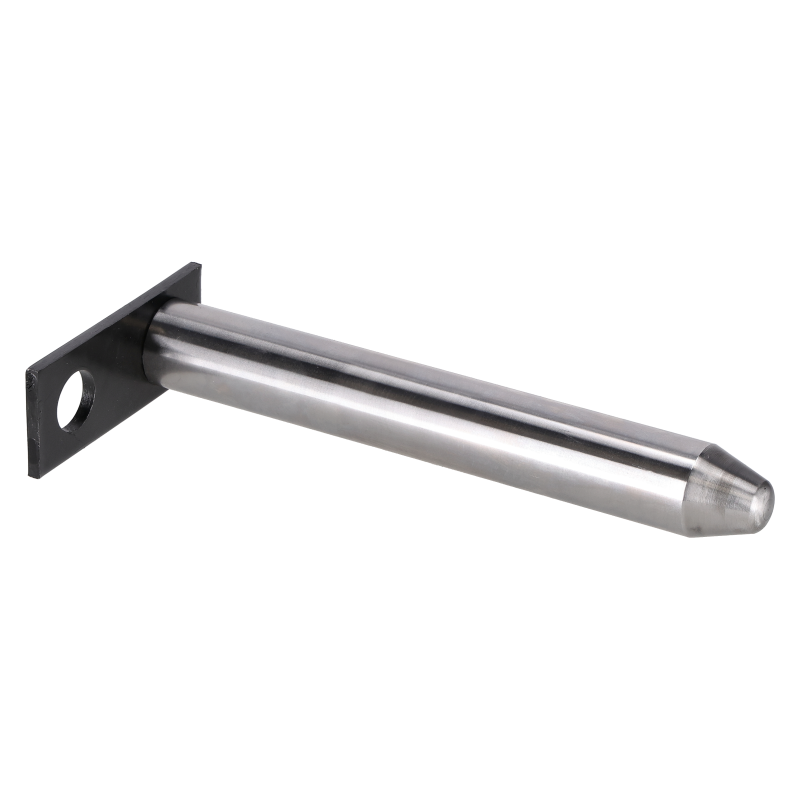

A high-quality 232/01100 bucket mounting pin by GX-AFTER. This is a key component that connects the excavator bucket to the arm or quick hitch on JCB machines, including the 1CX backhoe loader, 802, 803, 804 series mini excavators, and ROBOT skid steers. Precise dimensions (35 mm diameter, 250 mm length) guarantee a perfect fit and secure transfer of digging forces.

Part Number: 232/01100
Type: Bucket Mounting Pin
Diameter: 35 mm
Length: 250 mm

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Features of the 232/01100 Pin

High Strength: Made from hardened alloy steel, resistant to shearing, bending, and abrasive wear.
Precise Fit: A perfectly calibrated 35mm diameter ensures a tight fit in the bushings, minimizing working play.
Surface Treatment: Induction hardened and ground to provide a smooth working surface and long life.
Corrosion Resistant: The pin surface is treated to resist pitting corrosion, which aids future removal.

Application in machinery

Brand Series / Model
JCB Mini Backhoe Loaders: 1CX (1994-2022), 1CX TRACKED (2014-2022), 1CX MILITARY (2000-2011)
JCB Mini Excavators (801x): 8014 (2004-2013), 8016 (2004-2013), 8016 Super (2005-2009), 8018 (2004-2009), 8018 Super (2004-2009)
JCB Mini Excavators (802x): 802 (1995-1997), 802 Super (2003-2006), 802.4 (1997-2003), 802.7 (1996-2000), 802.7 Super (2000-2006), 8025 ZTS (2005-2022), 8027Z (2002-2006)
JCB Mini Excavators (803x): 803 (1991-1999), 803 PLUS (1997-2006), 803 SUPER (1999-2006), 8030 ZTS (2005-2022), 8032Z (2002-2006), 8035 ZTS (2006-2022)
JCB Mini Excavators (804x): 804 (1995-1997), 804 PLUS (1997-1999), 804 SUPER (1998-2006)
JCB Skid Steer Loaders (ROBOT): 135, 150, 155, 160, 165, 170, 175, 180, 190, 205, 1110 (and T, R, HI FLOW variants)
JCB Attachments: Breakers (HM 160Q, 165Q, 166Q, 265Q, 266Q), Augers (EARTHDRILLS), Grab (KERBMASTER)

The list above is for reference. It is crucial to verify the dimensions (35x250 mm) in your machine.

Related Parts and Hardware

Pin 232/01100 is a key linkage component. To fully eliminate play, we recommend replacing it along with a set of bushings (in the arm, linkage, and bucket) and new retainers (e.g., a lynch pin).

⚠️ Safety Warning

Operating with a worn, cracked, or improperly secured bucket pin is extremely dangerous. It can lead to the bucket suddenly detaching from the arm during operation, which risks dropping a load and poses a fatal threat to bystanders.

Part Role in the Machine and Failure Diagnostics

The 232/01100 pin is a hardened steel rod that creates a pivot joint. On JCB 1CX and 802/803/804 series machines, it is most often used as the main pin connecting the bucket to the quick hitch or directly to the dipper arm. It transfers all digging and lifting forces from the bucket to the machine.

  • › Audible and palpable play (knocking) at the bucket-to-arm joint.
  • › "Ovalization" (egging) of the holes in the bucket or arm (a result of working with a loose pin).
  • › Visible wear ("scarfing") or reduction in diameter on the pin's working surface.
  • › Difficulty installing or removing the pin (due to bending or corrosion).
  • › Visible fatigue cracks.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Dimensions: Ensure the pin diameter is 35 mm and the length is 250 mm.
  2. Replace with Bushings: Installing a new pin into old, worn (oval) bushings is pointless. Always replace pins and bushings as a set to eliminate play.
  3. Clean Installation: Thoroughly clean the bushing bores and pin holes of rust, dirt, and old grease.
  4. Generous Lubrication: Before installation, generously lubricate the pin and bushings with heavy-duty grease (e.g., EP2). Ensure the grease nipple is functional.
  5. New Retainer: Always use a new, strong retainer (lynch pin or bolt) to prevent the pin from sliding out during operation.

Frequently Asked Questions (FAQ)

What is the difference between this (232/01100) and 911/23900?

The main difference is the dimensions. This pin (232/01100) has a 35 mm diameter and 250 mm length. The 911/23900 pin is smaller (25 mm x 198 mm) and fits smaller machines, like the 801x series.

Does this pin fit a quick hitch?

This pin is used to attach the bucket (or the quick hitch itself) to the dipper arm or linkage. If you already have a quick hitch, you will need different, shorter pins to attach the bucket *to* the hitch.

Znak zapytania

Masz wątpliwości lub potrzebujesz potwierdzenia, aby uniknąć kosztownego przestoju? Zadzwoń do nas. Nasi eksperci pomogą dobrać właściwą część, aby Twój sprzęt jak najszybciej wrócił do pracy.

SKX948390A
232/01100
2.08 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
MINIEXCAVATOR
ROBOT
OEM NUMBERS
232/01100
OUTER DIAMETER (MM)
35
LENGTH (MM)
250
PIN WITH COLLAR
YES

Specific References

MPN
232/01100
