Grading bucket 76cm suitable for JCB 801/8020 - 522/06400 mini excavator
HIMACORE

Grading bucket 76cm suitable for JCB 801/8020, MICRO mini excavator

Catalog number:SKX827264HM Nr OEM:522/06400 Manufacturer:HIMACORE
Add a review

HIMACORE 76CM DITCHING BUCKET (HB400) SUITABLE FOR JCB MINI - 522/06400

Technical Specification and Compatibility

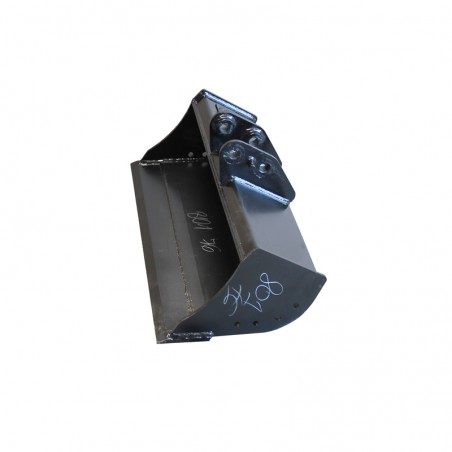

A robust 76 cm ditching/grading bucket, designed for JCB mini excavators (e.g., 8014, 8018, 8020, MINI CX). The body is made from high-quality 5mm steel, and the cutting edge from durable wear-resistant steel. The bucket features innovative systems: internal reinforcements to prevent twisting under load, and an elongated bottom profile that facilitates easier terrain profiling and prevents material spillage. The bucket is brand new, complete (pins not included), and ready to work, manufactured in accordance with the ISO 7451 standard.

Part number: 522/06400
Width: 760 mm (76 cm)
Capacity: 45 L
Hitch Dimensions: Pin diameter 25 mm, Dipper width 95-97.5 mm, Pin centers 90 mm

HIMACORE specializes in providing the highest quality hydraulic parts for construction machinery. Our products, such as hydraulic pumps, motors, and valves, are designed for maximum performance and reliability in the toughest working conditions. By choosing HIMACORE, you are investing in the precision, durability, and operational certainty of your machine's hydraulic system.

Essential for Assembly

  • › Mounting pins (25 mm): The bucket does not include pins. They must be purchased separately.

Application in machines

Brand Type / Series / Model
JCB Mini Excavators: 801, 8014, 8015, 8017, 8018, 8020
Other: MINI CX, MICRO PLUS

The list above is for reference. You must verify your dipper arm dimensions: 25 mm pin diameter, 95-97.5 mm arm width, and 90 mm pin centers.

⚠️ Safety Warning

Before mounting or dismounting the bucket, ensure the machine is on stable, level ground and the attachment is lowered to the ground. Always use certified lifting slings and ensure no one is in the working area of the attachment.

Part's Role in the Machine and Failure Diagnostics

A ditching bucket is a specialized tool for precise terrain profiling, ditch cleaning, and finishing slopes. Its technical condition directly impacts the quality and speed of work. A worn or damaged bucket makes it impossible to achieve a smooth surface and increases the strain on the machine.

  • › Cracks in welds or plating, especially near the hitch.
  • › Complete wear or bending of the cutting edge, making it impossible to achieve a smooth surface.
  • › Ovalization (egging) of the pin holes, causing play and imprecise work.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Check pins and bushings on the arm: Before mounting the new bucket, check the condition of the pins and bushings on the excavator arm. Any play in these areas will be transferred to the new bucket.
  2. Grease thoroughly: Before installation, generously grease the pins and bushings in the bucket with a suitable grease, such as HYPTRON.
  3. Secure pins correctly: Make sure the pins are properly secured against sliding out, according to the mounting system on your machine.
  4. Check movement: After installation, perform several full cycles of bucket movement to ensure there are no collisions with the arm or cylinder.

Frequently Asked Questions (FAQ)

1. What is a ditching/grading bucket used for?

Thanks to its wide profile and smooth cutting edge (no teeth), a ditching bucket is ideal for finishing work, such as: profiling and leveling slopes, cleaning and deepening ditches, site leveling, and spreading loose materials.

2. What does HB400 mean for a cutting edge?

HB400 is a designation for wear-resistant steel with a hardness of about 400 on the Brinell scale. It is a material significantly harder and more resistant to abrasion than standard structural steel (like G2 or S355), ensuring a longer life for the bucket's cutting edge.

3. How do I check if this hitch will fit my mini excavator?

The key is to measure your machine's dipper arm. This bucket is designed for machines with a 25 mm pin diameter, an arm width of 95-97.5 mm at the bucket mount, and a pin center distance of 90 mm. These dimensions ensure a fit for both quick hitches and traditional pin-on mounting.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX827264HM
522/06400
42.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
MINIEXCAVATOR
OEM NUMBERS
522/06400
WIDTH (MM)
760
PINS (MM)
25
ARM WIDTH (MM)
95
96
97
SPACING OF THE PINS (MM)
90
