Bucket 90 cm suitable for JCB 3CX 4CX / MINI EXCAVATORS - HB400 blade - 980/89995
HIMACORE

Bucket 90 cm suitable for JCB 3CX 4CX / MINI EXCAVATORS - HB400 blade

Catalog number:SKX819226HM Nr OEM:980/89995 Manufacturer:HIMACORE
Add a review

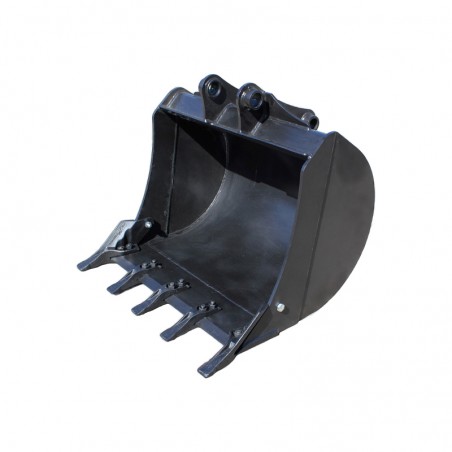

90CM HIMACORE DIGGING BUCKET SUITABLE FOR JCB 3CX, MINI EXCAVATORS - 980/89995

Technical Specification and Compatibility

A brand new, complete 90 cm digging bucket, manufactured by a leading European producer for the HIMACORE brand. The bucket's body is made of high-quality structural steel, and the cutting edge from HB400 wear-resistant steel. The bucket features innovative systems: internal reinforcements to prevent twisting under load, and an elongated bottom profile that facilitates easier ground penetration and prevents material spillage. The bucket is fully assembled (with 5 teeth and bushings) and ready for immediate installation (pins not included), manufactured in accordance with the ISO 7451 standard.

Part number: 980/89995
Alternative part numbers: 531/04000, 531/19500, 980/89823
Manufacturer: HIMACORE
Width: 900 mm
Capacity: 315 L
Number of teeth: 5
Cutting Edge: HB400 Wear Resistant Steel
Hitch Dimensions: Pin diameter 45 mm, dipper width 175 mm, pin centers 340 mm

HIMACORE specializes in providing the highest quality hydraulic parts for construction machinery. Our products, such as hydraulic pumps, motors, and valves, are designed for maximum performance and reliability in the toughest working conditions. By choosing HIMACORE, you are investing in the precision, durability, and operational certainty of your machine's hydraulic system.

Essential for Assembly

  • › Mounting pins (45 mm): The bucket does not include pins. They must be purchased separately.

Application in machines

Brand Type / Series / Model
JCB Backhoe Loaders: 3CX, 4CX
Mini Excavators: 8052, 8055, 8060, 8065, 8085, 65R, 67C, 85Z, 86C, 90Z, 100C

The list above is for reference. The standard hitch dimensions ensure compatibility with both quick hitches and traditional pin mounting.

⚠️ Safety Warning

Before mounting or dismounting the bucket, ensure the machine is on stable, level ground and the attachment is lowered to the ground. Always use certified lifting slings and ensure no one is in the working area of the attachment.

Part's Role in the Machine and Failure Diagnostics

The bucket is the primary working tool of an excavator. Its technical condition directly affects performance and operating costs. A worn or damaged bucket can lead to reduced efficiency and increased strain on the machine.

  • › Cracks in welds or plating of the bucket.
  • › Complete wear of the cutting edge and teeth.
  • › Elongation (wear) of pin holes, causing play.
  • › Deformation of the side plates or bottom of the bucket.

Peace of Mind Guarantee: Why Choose Our Offer?

A worn bucket means higher fuel consumption and slower work.

Working with a deformed or worn bucket creates more resistance in the ground, forcing the engine and hydraulics to work harder. Invest in efficiency – order a new, reinforced HIMACORE bucket with an optimized shape and speed up your jobs.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Check pins and bushings on the arm: Before mounting the new bucket, check the condition of the pins and bushings on the excavator arm. Any play in these areas will be transferred to the new bucket.
  2. Grease thoroughly: Before installation, generously grease the pins and bushings in the bucket with a suitable grease, such as HYPTRON.
  3. Secure pins correctly: Make sure the pins are properly secured against sliding out, according to the mounting system on your machine.
  4. Check movement: After installation, perform several full cycles of bucket movement to ensure there are no collisions with the arm or cylinder.

Frequently Asked Questions (FAQ)

1. What does HB400 mean for a cutting edge?

HB400 is a designation for wear-resistant steel with a hardness of about 400 on the Brinell scale. It is a material significantly harder and more resistant to abrasion than standard structural steel, ensuring a longer life for the bucket's cutting edge.

2. Why is the elongated profile of the bucket beneficial?

An elongated, flatter bucket bottom (compared to traditional, "round" buckets) makes it easier to penetrate hard ground as it offers less resistance. Additionally, this shape helps in scooping and retaining loose materials, preventing them from spilling while lifting the arm.

3. Will this bucket fit my quick hitch?

Yes, the bucket is manufactured to standard JCB hitch dimensions (45 mm pin diameter, 175 mm dipper width, 340 mm pin centers), which ensures full compatibility with both original JCB quick hitches and traditional direct pin mounting.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX819226HM
980/89995
185.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
MINIEXCAVATOR
OEM NUMBERS
531/04000 / 531/19500 / 980/89995 / 980/89823
WIDTH (MM)
900
NUMBER OF TEETH
5
PINS (MM)
45
ARM WIDTH (MM)
175
SPACING OF THE PINS (MM)
340

Specific References

MPN
980/89995
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Bucket 90 cm suitable for JCB 3CX 4CX / MINI EXCAVATORS - HB400 blade

Catalog number: SKX819226HM
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

3,290.25 zł

net price
2675,00 zł
Last pieces Temporarily unavailable
2675,00 zł
net price

3,290.25 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 268 points, it gives you 107.20 zł
  • Lowest price from 30 days before the discount: 3,290.25 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    MINIEXCAVATOR
    OEM NUMBERS
    531/04000 / 531/19500 / 980/89995 / 980/89823
    WIDTH (MM)
    900
    NUMBER OF TEETH
    5
    PINS (MM)
    45
    ARM WIDTH (MM)
    175
    SPACING OF THE PINS (MM)
    340
