Pin lock suitable for CAT Tooth J450 / J460
GX-AFTER

Pin lock suitable for CAT Tooth J450 / J460

Catalog number:8E0468+8E8469 Nr OEM:8E0468 Manufacturer:GX-AFTER
Add a review

Tooth Pin and Retainer Set J450 J460 suitable for CAT - 8E0468 / 8E8469

Technical Specification and Compatibility

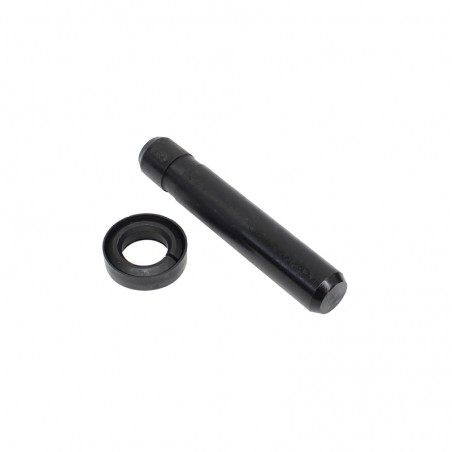

Complete excavator tooth locking set with part numbers 8E0468 / 8E8469 from the GX-AFTER offer. The set consists of two elements: a steel pin and a retaining ring (retainer). Dedicated to the CAT J-Series tooth system in sizes J450 and J460, used in heavy Caterpillar crawler excavators (20-50 ton class).

Pin Part Number: 8E0468
Retainer Part Number: 8E8469
Tooth System: CAT J450 / J460
Mounting Type: Side Pin
Set Includes: 1x Pin + 1x Retainer
Application: Locking tooth on adapter
Manufacturer: GX-AFTER

GX-AFTER fasteners are made of high-strength materials. The hardened steel pin is resistant to shearing, and the flexible ring ensures a secure hold even under strong vibrations and impacts.

Features of GX-AFTER 8E0468 + 8E8469 Set

Complete Solution: You receive a ready-to-install set, eliminating the need to select the pin and ring separately.
Side Pin System: Side mounting is standard in the CAT J system, allowing for quick and easy tooth replacement in the field using a hammer and punch.
Connection Durability: The ring design (usually steel-rubber or spring) prevents the pin from sliding out, protecting expensive tooth tips from loss.
J450/460 Versatility: The set fits two popular sizes of the J system, facilitating spare parts logistics for different machines.

Application in CAT machinery

Brand Crawler Excavator Models
Caterpillar (CAT) 320B, 320B L, 322 L, 322 LN, 322-A LN, 322-A N, 322B L, 322B LN, 322C, 322N, 325 L, 325 LN, 325-A, 325-A FM L, 325-A L, 325-A LN, 325B L, 325B LN, 325C, 330 L, 330 LN, 330-A, 330-A L, 330-A LN, 330B, 330B L, 330B LN, 330C, 330C L, 330C LN, 345B, 345B II, 345B L, 350 L, 350-A, 350-A L

The set fits all teeth and adapters in the CAT J450 and J460 standard.

Related Parts and Hardware

The set is used to mount teeth (tips) on adapters. We offer a wide selection of J450/J460 teeth for various applications (rock, soil, penetration).

⚠️ Safety Warning

When driving pins in and out, there is a risk of metal chipping. Always use safety glasses and a proper punch. Never hit a hardened pin directly with a hammer without a drift.

Part Role in the Machine and Failure Diagnostics

Set 8E0468/8E8469 holds the tooth on the adapter.

  • › Lost tooth (worn retaining ring).
  • › Pin sliding out (damaged groove in adapter or tooth).
  • › Difficulty in disassembly (seized or bent pin).
  • › Excessive tooth play (wear of mating surfaces, not pin fault).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Set Replacement: Always replace the pin and ring with new ones every time the tooth is changed. Old retainers lose elasticity and can fall out.
  2. Installation Direction: The ring (retainer) is inserted into the adapter, and the pin is driven through the tooth and adapter, locking into the ring. Pay attention to the correct positioning of the ring in the socket.
  3. Cleanliness: Thoroughly clean the adapter hole of soil and rust before installation. Dirt can prevent correct ring seating.

Technical FAQ and Trivia

Can I buy just the ring?

Yes, these items are available separately, but we recommend purchasing as a set. Replacing just the pin without the ring is risky, as the ring is responsible for locking.

How does J450 differ from J460?

These systems are very similar, and their fasteners are often interchangeable (as in this case). The main difference lies in the size and strength of the tooth and adapter itself, with J460 being the stronger version used in larger machines.

Trivia about CAT J-Series

The Caterpillar J-Series system (with side pin) debuted decades ago and became a global standard. The letter "J" in the name is not accidental, but its origin is often linked to CAT's internal design designations, which became an industry synonym for reliable side mounting .

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

8E0468+8E8469
8E0468
0.20 kg

Data sheet

SUITABLE FOR
CAT
JCB
VOLVO
OEM NUMBERS
8E0468 / 8E8469 / 8E-0468 / 8E-8469
OUTER DIAMETER (MM)
24
LENGTH (MM)
133

Specific References

MPN
8E0468
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Pin lock suitable for CAT Tooth J450 / J460

Catalog number: 8E0468+8E8469
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

23.99 zł

net price
19,50 zł
Available in large quantity Temporarily unavailable
19,50 zł
net price

23.99 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 2 points, it gives you 0.80 zł
  • Lowest price from 30 days before the discount: 23.99 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    JCB
    VOLVO
    OEM NUMBERS
    8E0468 / 8E8469 / 8E-0468 / 8E-8469
    OUTER DIAMETER (MM)
    24
    LENGTH (MM)
    133
