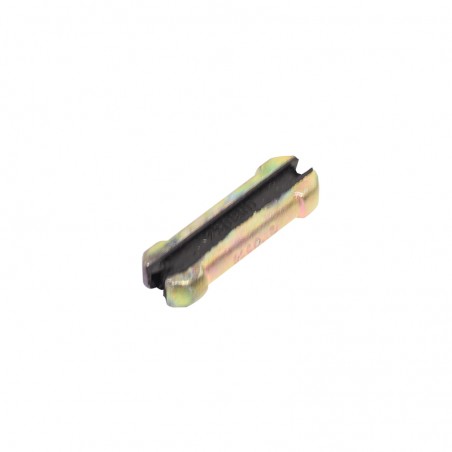

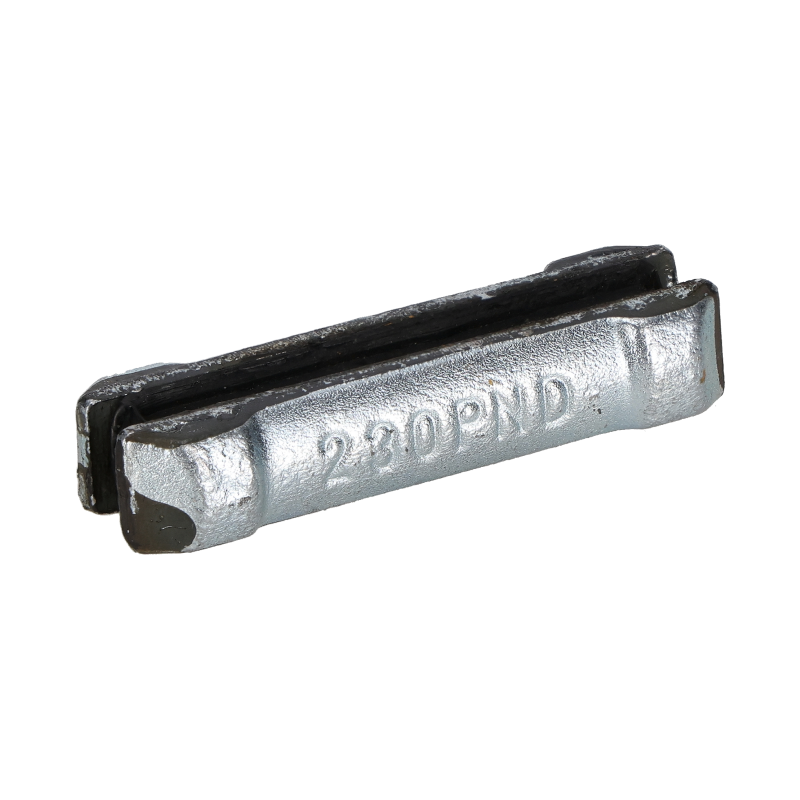

Pin lock - Tooth suitable for CAT DRS200
GX-AFTER

Pin lock - Tooth suitable for CAT DRS200

Catalog number:DRS200PIN Nr OEM:1957200 Manufacturer:GX-AFTER
Add a review

CAT DRS 200 Flexible Retainer Pin (53.8mm) - 1957200

Technical Specification and Compatibility

Specialized 1957200 retaining pin by GX-AFTER. This is a key mounting component for the CAT DRS 200 (Diagonal Retention System). Unlike standard side pins, this element is installed diagonally, ensuring better retention in difficult conditions. Dedicated to CAT C and D series backhoe loaders and D6R dozers. The length of the component is 53.8 mm.

Part Number: 1957200
Component Type: Flexible Pin / Retainer
Tooth System: CAT DRS 200 (Diagonal)
Length: 53.8 mm
Material: Steel + Elastomer
Manufacturer: GX-AFTER

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability.

Features of GX-AFTER 1957200 Retainer

Diagonal System: The 40-degree angle mounting eliminates the risk of accidental pin ejection by spoil, a common issue in side-pin systems.
Composite Construction: A steel core ensures shear resistance, while an elastomer layer guarantees constant tension and locking in the adapter socket.
Precise Dimension: The 53.8 mm length is strictly matched to the mounting channels of DRS 200 series teeth, ensuring no axial play.
Corrosion Resistance: Materials used in production are resistant to harsh weather conditions and chemical environments.

Application in CAT machinery

Machine Type Models
Backhoe Loaders 416B, 416C, 416D, 420D, 424D, 426C, 428C, 428D, 430D, 432D, 436C, 438C, 438D, 442D
Crawler Dozers D6R (selected ripper/blade configurations)

The list applies to machines equipped with DRS 200 system adapters. We recommend verifying the tooth hole shape (diagonal).

Related Parts and Hardware

The retainer is necessary for installing DRS 200 system teeth, such as 195-7205. The product is a single piece (pin integrated with locking element).

⚠️ Safety Warning

Reinstalling a worn DRS retainer is risky. Loss of elasticity in the rubber element can cause the pin to slide out and the tooth to be lost, exposing the adapter to irreversible damage.

Part Role in the Machine and Failure Diagnostics

Pin 1957200 locks the tip onto the adapter, transmitting forces during bucket operation.

  • › Loose tooth (rubber element wear).
  • › Pin sliding out (lock damage).
  • › Difficulty in disassembly (jamming with debris).
  • › Tooth loss in the trench.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. System Identification: You can recognize the DRS (Diagonal Retention System) by the mounting holes in the tooth, which are angled, not perpendicular to the tooth axis.
  2. Cleaning: Before installation, thoroughly pick out packed soil from the adapter channel. Contaminants will prevent the pin from locking correctly.
  3. Replacement: We recommend replacing the retainer with every new set of teeth. The cost of the pin is negligible compared to the cost of a lost tooth.

Frequently Asked Questions (FAQ)

Does it fit J-system (side pin)?

No. The CAT J system uses a hard steel pin and a separate retaining ring. The DRS system uses a flexible (laminated) pin. They are not interchangeable.

What is the pin length?

The total length is 53.8 mm. This is a specific dimension for the DRS 200 size.

Is this a set for one tooth?

Yes. In the DRS 200 system, one tooth is held by one flexible pin.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

DRS200PIN
1957200
0.04 kg

Data sheet

SUITABLE FOR
CAT
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
DRS200PIN / 1957200

Specific References

MPN
1957200
