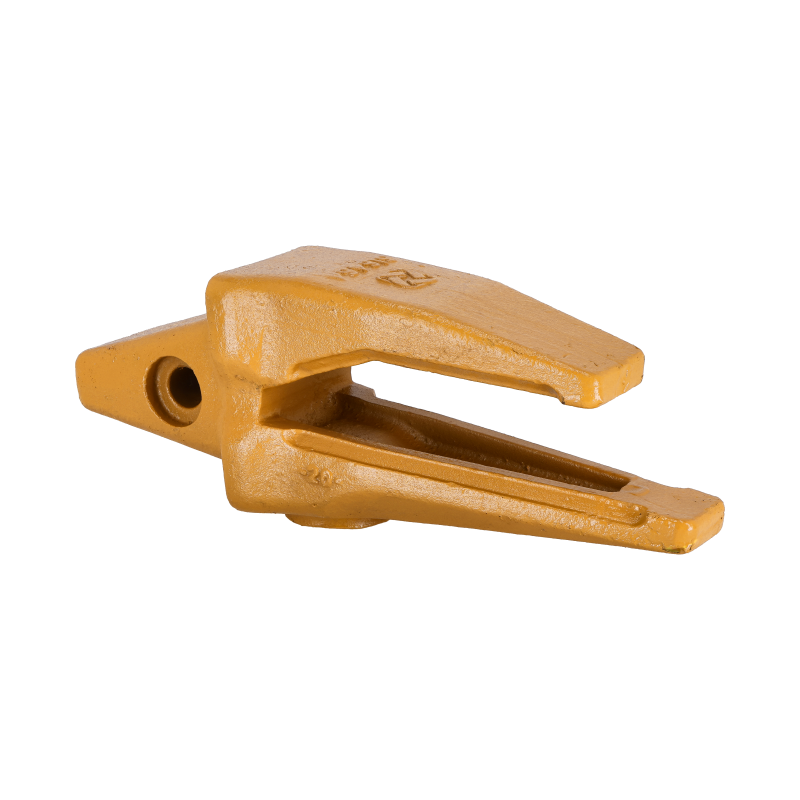

Excavator Tooth Adapter J450 / J460 suitable for CAT - 6I6464

Technical Specification and Compatibility

Excavator tooth adapter with part number 6I6464 from the GX-AFTER offer. This is a central "Two Strap" type adapter, designed to be welded onto the bucket blade. Dedicated to the CAT J450 / J460 tooth system, used in heavy Caterpillar crawler excavators (320, 325, 330, 345, 350 series). The product features high hardness and resistance to cracking.

Part Number: 6I6464
Tooth System: CAT J-Series (J450 / J460)
Mounting Type: Weld-on
Adapter Type: Central, Two Strap
Hardness: 48-52 HRC
Tensile Strength: ≥ 1400 Rm-N/mm²
Shock: ≥ 20J
Manufacturer: GX-AFTER

GX-AFTER wear parts are manufactured from high-grade steel alloys, heat-treated to achieve an optimal balance between hardness (abrasion resistance) and impact strength (crack resistance). This guarantees long life in the toughest mining and construction conditions.

Features of GX-AFTER 6I6464 Adapter

"Two Strap" Design: The adapter legs wrap around the blade from the top and bottom, ensuring a much stronger and more stable welded connection compared to flush adapters.
J-Series System: The popular side pin tooth mounting system ensures easy tip replacement in field conditions.
Heavy Duty Specs: Hardness of 52 HRC and high impact strength mean the adapter does not crack even when hitting solid rock.
Optimal Shape: The adapter profile facilitates the flow of spoil into the bucket and protects the blade from wear.

Application in CAT machinery

Brand Crawler Excavator Models
Caterpillar (CAT) 320B, 320B L, 322 L, 322 LN, 322-A L, 322-A LN, 322-A N, 322B L, 322B LN, 322C, 322N, 325 L, 325 LN, 325-A, 325-A FM L, 325-A L, 325-A LN, 325B L, 325B LN, 325C, 330 L, 330 LN, 330-A, 330-A L, 330-A LN, 330B, 330B L, 330B LN, 330C, 330C L, 330C LN, 345B, 345B II, 345B L, 350 L, 350-A, 350-A L

The adapter fits buckets with the appropriate blade thickness. Before welding, verify the cutting edge profile.

Related Parts and Hardware

The adapter requires the installation of a J450 or J460 system tooth (tip). To lock the tooth, a pin and retainer (ring) are necessary. We offer a full range of teeth with various profiles (rock, soil, heavy duty).

⚠️ Safety Warning

Installing the adapter requires welding. Follow welding procedures for wear-resistant steels (preheating, appropriate electrodes/wire). Improper welding can lead to blade cracking or adapter detachment during operation.

Part Role in the Machine and Failure Diagnostics

Adapter 6I6464 is the base for the digging tooth.

  • › Worn adapter nose (tooth play, risk of losing the tip).
  • › Crack at the weld (installation error or material fatigue).
  • › Worn pin hole (difficulty in securing the tooth).
  • › Adapter leg fracture (extreme overload).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Preparation: Before welding, thoroughly clean the blade of paint, rust, and grease. The surface must be metallically clean.
  2. Preheating: It is recommended to preheat the adapter and blade to approx. 150-200°C to avoid hydrogen cracking in the weld.
  3. Nose Check: If the "nose" of the old adapter is so worn that the new tooth has a lot of play, replacing the tooth alone will not help – it is necessary to replace the adapter (cut out the old one and weld in a new one).

Technical FAQ and Trivia

What is a "Two Strap" adapter?

"Two Strap" means that the adapter has two legs wrapping around the blade from the top and bottom . This design ensures a much stronger and more stable welded connection than flush mount adapters.

How to select J size?

The J-series size (e.g., J350, J460) depends on the blade thickness and excavator power. The J460 adapter is designed for machines with higher breakout force than the J350. Verification is done by measuring the width of the adapter nose.

Trivia about CAT J-Series

The Caterpillar J-Series system (with side pin) is the most copied tooth system in the world. Its simplicity and reliability have made it a standard not only in CAT machines but also in buckets produced by independent companies for all brands of excavators.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX988481HM
6I6464
8.40 kg

Data sheet

SUITABLE FOR
CAT
JCB
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
6I6464 / 6I-6464 / 8E6464 / 8E-6464
CUTTING EDGE THICKNESS
58

Specific References

MPN
6I6464
