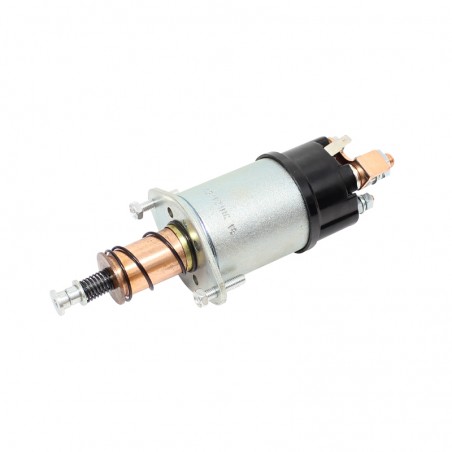

Motor Starter coil 12V suitable for JCB 2CX 3CX 4CX - butterfly mounting
GX-AFTER

Motor Starter coil 12V suitable for JCB 2CX 3CX 4CX - butterfly mounting

Catalog number:714/40160B Nr OEM:714/40160 Manufacturer:GX-AFTER
Add a review

STARTER SOLENOID 12V (PERKINS) SUITABLE FOR JCB 3CX, 4CX - 714/40160B

Technical Specification and Compatibility

A high-quality starter solenoid, designed for JCB machines with Perkins engines (fitted before approx. 2005). A characteristic feature of this model is the wing fastening. The solenoid performs two key functions: it moves the starter pinion (bendix) to engage the flywheel ring gear, and then acts as a high-current relay, closing the main starter motor circuit. The robust construction and copper contacts ensure reliable starting and a long service life.

Part number: 714/40160
Compatible engine: Perkins (pre-2005)
Voltage (V): 12
Length (mm): 129
Outer Diameter (mm): 55
Power Terminals: M8x1.25 / M6x1.0

GX-AFTER is the smart choice for your machine. We provide high-class replacement parts that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Application in machines

Brand (Machine Type) Model
JCB (Backhoe Loaders) 3CX, 4CX (with Perkins engine, pre-2005)
JCB (Telehandlers) Loadall (with Perkins engine)
JCB (Wheel Loaders) Various models with Perkins engine
JCB (Tractors) FASTRAC (older models with Perkins engine)
JCB (Forklifts) RTFL (Rough Terrain with Perkins engine)

The list above is for reference. Before purchasing, we recommend a visual comparison with your old part, paying attention to the "wing nut" terminals.

⚠️ Safety Warning

Before replacing any starter components, you must disconnect the negative (-) terminal from the battery. Shorting the main power lead of the starter to ground can cause a fire and serious injury.

Part's Role in the Machine and Failure Diagnostics

The starter solenoid is the actuator of the starting system. Its failure makes it impossible to start the engine, leading to machine downtime.

  • › A loud, single "click" when turning the key, without the starter motor turning (burnt internal contacts).
  • › No reaction at all after turning the key (burnt-out coil).
  • › The starter motor spins freely without engaging the flywheel (damaged bendix engagement mechanism).
  • › The starter does not disengage after the engine has started (stuck contacts).

Peace of Mind Guarantee: Why Choose Our Offer?

A faulty solenoid means an immobilized machine.

Replacing just the solenoid is much cheaper than replacing the entire starter motor. Don't wait for a tow – order a new, reliable GX-AFTER solenoid and restore a sure start to your machine.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Disconnect the battery: This is absolutely essential. Disconnect the negative terminal first.
  2. Label the wires: Before unscrewing the wires from the solenoid, take a photo or label them to avoid mistakes during reassembly.
  3. Clean the terminals: Thoroughly clean the wire terminals and the studs on the new solenoid to ensure perfect current flow.
  4. Tighten securely: Tighten the wing nuts by hand, then give them a quarter turn with a wrench. A loose connection will heat up and can lead to the solenoid melting.

Frequently Asked Questions (FAQ)

1. How do I know if the solenoid is faulty and not the whole starter motor?

If you hear a loud, single "click" when you turn the key, it means the solenoid is trying to work but cannot close the main contacts. If you hear nothing, the problem could be a burnt-out coil or no signal from the ignition switch. If the starter turns but slowly, the problem is more likely the battery, connections, or the starter motor itself.

2. Is it difficult to replace just the solenoid?

Replacing the solenoid is much simpler and cheaper than replacing the entire starter motor. In most cases, it can be done without removing the starter from the engine. It requires removing a few screws and wires, and then carefully taking the solenoid off the fork mechanism.

3. What is a "bendix" and what role does the solenoid play with it?

"Bendix" is the common name for the starter pinion gear. The solenoid, acting as an electromagnet, uses a fork to push the bendix forward to engage its teeth with the teeth on the engine's flywheel ring gear. Only in the second phase does the solenoid switch on the power to the starter motor to turn the flywheel.

Key Advantages

🛡️

Reliable Starting

Restores full functionality to the starting system.

🎯

Starter Protection

Prevents damage caused by burnt-out contacts.

📦

Economical Repair

A cheaper alternative to replacing the entire starter.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

714/40160B
714/40160
1.75 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
FASTRAC
FORKLIFT
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
714/40160
ENGINE
PERKINS

Specific References

MPN
714/40160
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Motor Starter coil 12V suitable for JCB 2CX 3CX 4CX - butterfly mounting

Catalog number: 714/40160B
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

208.49 zł

net price
169,50 zł
Last pieces Temporarily unavailable
169,50 zł
net price

208.49 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 17 points, it gives you 6.80 zł
  • Lowest price from 30 days before the discount: 208.49 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    FASTRAC
    FORKLIFT
    TELESCOPIC HANDLER
    WHEELED LOADER
    OEM NUMBERS
    714/40160
    ENGINE
    PERKINS
