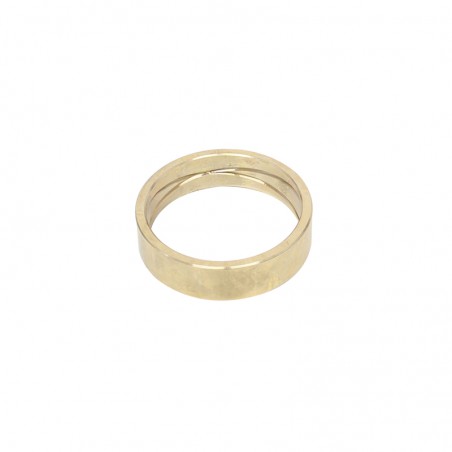

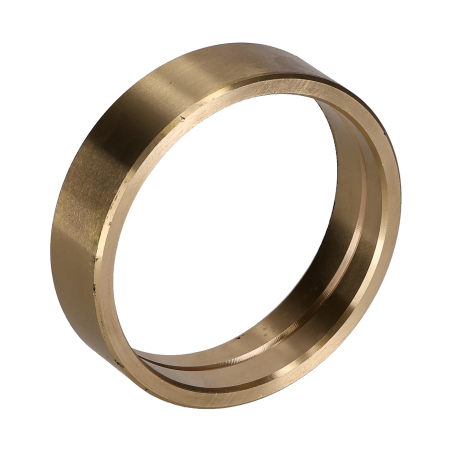

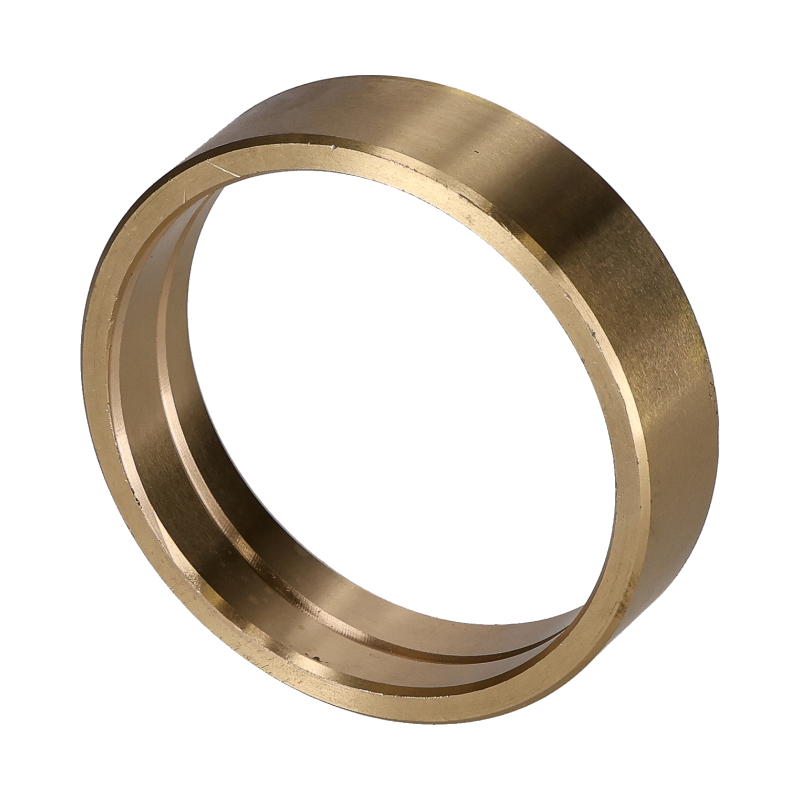

Bush below gear pinion suitable for JCB 3CX 4CX
GX-AFTER

Bush below gear pinion suitable for JCB 3CX 4CX

Catalog number:808/00186A Nr OEM:808/00186 Manufacturer:GX-AFTER
Add a review

Bronze Slew Pinion Bushing suitable for JCB - 808/00186

Technical Specification and Compatibility

A high-quality bronze bushing 808/00186 by GX-AFTER. This is a key slide bearing fitted under the slew pinion gear of the rear arm. This bush is dedicated to older JCB 3CX and 4CX models (produced up to VIN 405988, approx. 1997), which are equipped with the old rack and pinion slew type. It features an internal grease groove and one hole for grease distribution.

Part Number: 808/00186
Type: Bronze Bushing / Slew Pinion Bush
Material: Bronze
Compatibility: JCB 3CX, 4CX (up to VIN 405988, rack slew type)
Height: 25 mm
Outer Diameter: 95 mm
Inner Diameter: 83 mm
Lubrication: Internal, 1 hole

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Features of the 808/00186 Bronze Bush

High Friction Resistance: Bronze material provides excellent sliding properties and prevents pinion seizure.
Eliminates Slew Play: Precise dimensions (95x83x25 mm) eliminate slew pinion play, restoring arm accuracy.
Effective Lubrication: Internal groove and single hole ensure even grease distribution across the working surface.
Fits Older Models: Specifically designed for pre-1997 JCB 3CX/4CX machines with the old rack slew system.

Application in machinery

Brand Type / Series / Model
JCB Backhoe Loaders: 3CX (up to 1997 / VIN 405988), 4CX (up to 1997 / VIN 405988) - Rack and pinion slew type only.

The list above is for reference. It is crucial to verify the slew type (rack) and bush dimensions (95x83x25 mm).

Related Parts and Hardware

This bush works directly with the slew pinion gear and the slew rack. When replacing, we recommend checking the teeth on both components and replacing the upper and lower carriage slide bushes (e.g., 809/00081).

⚠️ Safety Warning

A worn slew pinion bush causes excessive play in the slew mechanism. This leads to violent jerking of the arm when starting/stopping slew, making precise digging difficult. In extreme cases, the play can cause damage to the teeth on the rack and pinion, a very expensive repair.

Part Role in the Machine and Failure Diagnostics

The 808/00186 bronze bush is the slide bearing for the slew pinion shaft in older backhoe loaders (rack and pinion slew). It is seated in the carriage (kingpost), and the pinion shaft rotates inside it. Its job is to precisely guide the pinion gear and absorb the high radial forces during the slew movement.

  • › Excessive play in the slew (arm "rocks" at the pivot).
  • › Metallic knocking or grinding noises when slewing.
  • › Uneven slew operation, "skipping" teeth on the rack.
  • › Visible wear or ovalization of the bush upon disassembly.
  • › Bronze filings in the grease around the slew mechanism.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Confirm Machine Type: Ensure your machine is pre-1997 (up to VIN 405988) and has the old rack and pinion slew system.
  2. Clean the Housing: Thoroughly clean the bore in the carriage/kingpost of rust and dirt before pressing in the new bush.
  3. Press Fit: The bush must be pressed in squarely using a press or suitable puller. Do not hammer directly on the edge of the bush.
  4. Align Grease Hole: It is critical to align the grease hole in the bush with the grease channel/nipple in the housing during installation.
  5. Lubrication: Generously lubricate the bush and pinion shaft with grease before final assembly.

Frequently Asked Questions (FAQ)

How is this bush different from the carriage bush (809/00081)?

The carriage bushes (e.g., 809/00081) are the large rings that the entire carriage slides left and right on. This bush (808/00186) is smaller (95x83x25 mm), sits *inside* the carriage, and the slew pinion shaft rotates within it.

I have a 3CX from 2005. Will this bush fit?

No. This bush is only for models up to 1997 (VIN up to 405988) with the rack slew. A 2005 machine has the newer slew ring design and does not use this part.

Why is this bush made of bronze?

Bronze is a material with excellent sliding properties and a low coefficient of friction. In the event of lubrication failure, the bronze "sacrifices" itself, protecting the more expensive steel pinion shaft from seizure.

Znak zapytania

Masz wątpliwości lub potrzebujesz potwierdzenia, aby uniknąć kosztownego przestoju? Zadzwoń do nas. Nasi eksperci pomogą dobrać właściwą część, aby Twój sprzęt jak najszybciej wrócił do pracy.

808/00186A
808/00186
0.36 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
808/00186
OUTER DIAMETER (MM)
95
INNER DIAMETER (MM)
83
HEIGHT (MM)
25
BUSH WITH COLLAR
NO

Specific References

MPN
808/00186
