Grading bucket / Grading bucket 200cm suitable for JCB 3CX 4CX REINFORCED
HIMACORE

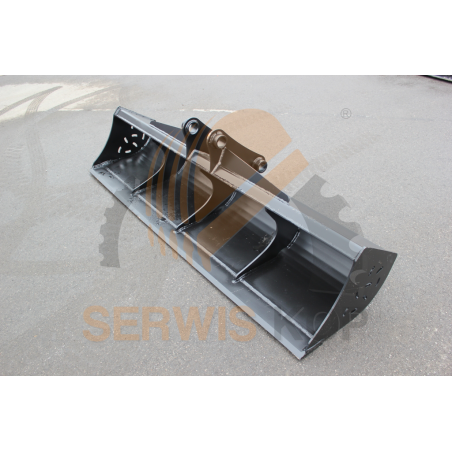

Grading bucket 200cm suitable for JCB 3CX 4CX / MINI EXCAVATORS - HB400 blade

Catalog number:SKX819265 Nr OEM:BG200JCB3CX Manufacturer:HIMACORE
Add a review

200cm Grading / Ditching Bucket (HB400) suitable for JCB 3CX 4CX - BG200JCB3CX

Technical Specification and Compatibility

A brand new, high-performance 200 cm (2000 mm) wide grading bucket by HIMACORE. Designed specifically for JCB 3CX, 4CX backhoe loaders and larger JCB mini (midi) excavators (from 8052 to 100C). The bucket is complete, fitted with bushings, and ready for immediate installation. Standard hitch dimensions (45/175/340) ensure compatibility with both traditional pin-on mounting and popular quick hitches.

Part Number: BG200JCB3CX
Type: Grading Bucket / Ditching Bucket / Mud Bucket
Width: 2000 mm (200 cm)
Capacity (ISO 7451): 0.31 m³ (310 L)
Cutting Edge Material: HB400 Wear-Resistant Steel
Pin Diameter: 45 mm
Dipper Width: 175 mm
Pin Centers: 340 mm

HIMACORE is a leader in innovative solutions for construction machinery. Our buckets and attachments are engineered for maximum performance and durability. We use only certified steel and advanced welding processes to ensure every HIMACORE product withstands the toughest working conditions, minimizing downtime and maximizing your productivity.

Innovative Features of the HIMACORE BG200 Bucket

Internal Reinforcement System: Special rib design prevents the wide bucket from twisting under momentary high stresses applied to its edges.
Extended Bottom Profile: Optimized shape facilitates material loading and prevents loose material from spilling out during fast cycling.
HB400 Cutting Edge: The cutting edge is made from 400 HB wear-resistant steel, guaranteeing long life when working with abrasive materials (sand, gravel).
Solid Body: Shell made of quality steel ensures rigidity and resistance to deformation.

Application in machinery

Brand Machine Type Models
JCB Backhoe Loaders 3CX, 4CX (all years with standard rear arm)
JCB Midi Excavators (5-10T) 8052, 8055, 8060, 8065, 8085, 65R-1, 67C-1, 85Z-1, 86C-1, 90Z-1, 100C-1

The list above is for reference. It is crucial to verify the hitch dimensions (45/175/340 mm) on your machine.

Related Parts and Hardware

The bucket is supplied with pressed-in bushings. For installation, you will need two 45 mm diameter pins (if you don't have a quick hitch or your old pins are worn). We also recommend checking the condition of the tipping link.

⚠️ Safety Warning

Using such a wide bucket (200 cm) for digging in hard, compacted ground or for ripping roots can overload the machine's arm or damage the bucket itself. A grading bucket is designed for working with loose material and for landscaping/profiling.

Part Role in the Machine and Failure Diagnostics

A grading (ditching) bucket is used for precise ground leveling, shaping slopes and ditches, and loading loose materials (soil, sand, snow). Its large width (200 cm) significantly speeds up finishing work.

  • › Excessive cutting edge wear (worn down, rounded edge).
  • › Cracked welds near the hitch or on the bucket floor (result of overloading).
  • › Twisted or deformed bucket structure.
  • › Worn-out pin holes (bushings) in the bucket hitch, causing play.

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Verify Dimensions: Before purchase, check if your dipper arm is 175 mm wide and uses 45 mm pins. This is standard for JCB 3CX/4CX, but worth confirming.
  2. New Pins: Installing a new bucket on old, worn pins will quickly lead to the new bushings being hammered out. We recommend replacing the set.
  3. Greasing: Generously grease the pins before assembly. Remember to grease the bucket regularly during operation (daily!).
  4. First Use: After installation, check if the bucket does not collide with the machine arm throughout its full range of motion.

Frequently Asked Questions (FAQ)

Does the bucket include pins?

No. The bucket is sold with pressed-in bushings, but without pins. Pins (45mm) must be purchased separately or you can use your existing ones if they are in good condition.

Does it fit a quick hitch?

Yes, the bucket hitch is made to standard JCB dimensions (45/175/340), so it fits most standard mechanical and hydraulic quick hitches dedicated to these machines.

What is the capacity of this bucket?

The geometric capacity (ISO 7451) is 0.31 m³, which is 310 liters. This is an optimal size for 3CX class machines for grading work.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX819265
BG200JCB3CX
174.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
MINIEXCAVATOR
OEM NUMBERS
BG200JCB3CX
WIDTH (MM)
2000
PINS (MM)
45
ARM WIDTH (MM)
175
SPACING OF THE PINS (MM)
340

Specific References

MPN
BG200JCB3CX
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Grading bucket 200cm suitable for JCB 3CX 4CX / MINI EXCAVATORS - HB400 blade

Catalog number: SKX819265
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

4,488.27 zł

net price
3649,00 zł
Temporarily unavailable
3649,00 zł
net price

4,488.27 zł

gross price
  • You will receive 365 points, it gives you 146.00 zł
  • Lowest price from 30 days before the discount: 4,488.27 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    MINIEXCAVATOR
    OEM NUMBERS
    BG200JCB3CX
    WIDTH (MM)
    2000
    PINS (MM)
    45
    ARM WIDTH (MM)
    175
    SPACING OF THE PINS (MM)
    340
