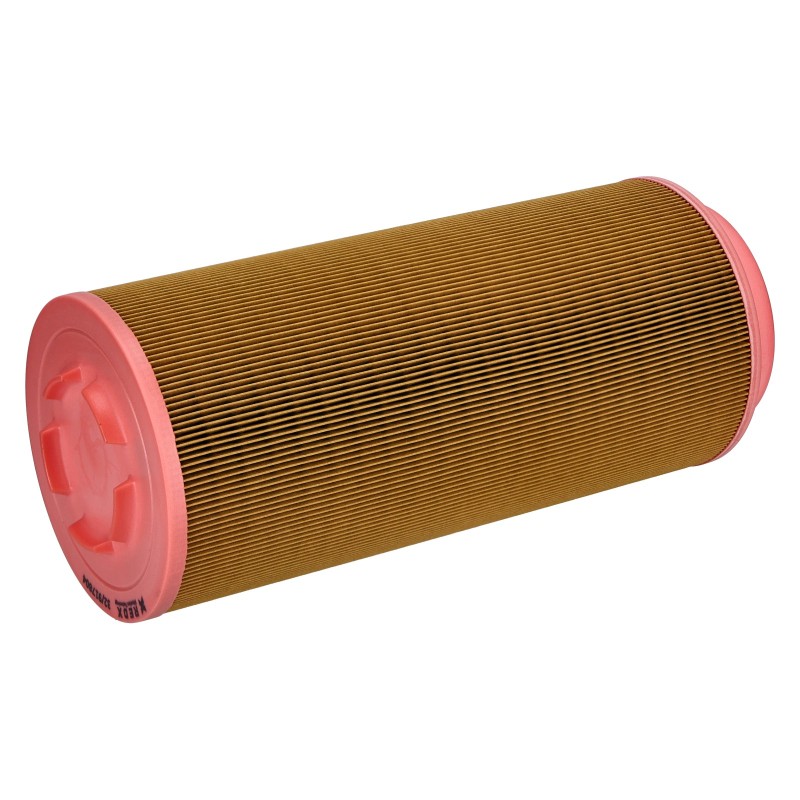

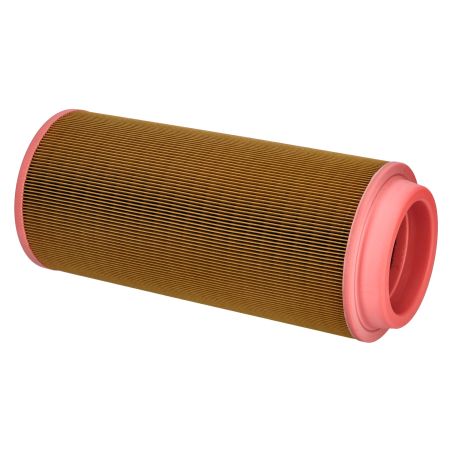

High-performance 32/917804 outer (primary) air filter by REDX. This is a key intake system component, dedicated to JCB machines equipped with DieselMax and Perkins engines. Fits a wide range of Loadall telehandlers, JS series excavators, backhoe loaders, dumpers, and generators. The filter effectively traps dust and contaminants, protecting the engine from premature wear.
REDX filters are produced using advanced filter media that ensure maximum airflow while maintaining high filtration efficiency. Robust construction and precise seals guarantee the tightness of the intake system.
| Machine Type | Models |
|---|---|
| Telehandlers (Loadall) | 535-125 HiViZ (USA), 535-140 HiViZ (USA), 5.5-21 / 555-210R, 5.5-26 / 555-260R, 506-23TC, 509-23TC, 510-42, 510-44S TC, 510-55 TC, 520 LE, 520S LE, 526, 526 LE, 526-56, 526S, 526S LE, 527-58 FS, 527-58, 528-70, 528S, 530, 530 FS PLUS, 530 SUPER, 530S XL, 531-70, 531-70 SWAY, 532, 532H, 532-60 (532X60), 532-70 (532X70AG), 533-105, 535, 535 FS SUPER, 535 TELEBAT, 535-125, 535-140, 535-60, 535-60 FS, 535-95, 536-60, 536-70, 536-95, 538-60, 538-70, 540-140, 540-170, 540-180R, 540-200, 540V140, 541-70, 542-70, 550-140, 550-170, 550-80, 560-80, 515-40 |
| Site Dumpers | 1T-1 Hydrostatic, 1T Electric, 1T-2S5, 3FTH, 3FTH-2S5, 3STH, 3STH-2S5, 6T-1, 6FT-2S5, 6ST-2S5, 7T-1, 7FT-2S5, 9T-1, 9FT-2S5 |
| Backhoe Loaders | 1CX, 1CX SERVO, 1CX HI FLOW, 1CX TRACKED, 2CX, 2CX AIRMASTER, 2CX LOADER, 2CXS, 2CX-SM, MIDI CX, 3CX COMPACT (10, 12), 3CX SERVO (14H5WA, 14L5WA), 3CX (NON SERVO), 4CX SERVO, 4CX (NON SERVO), 5CX SERVO, 5CX (NON SERVO) - models: 3CX 14H5WA, 3CX 14L5WA, 4CX 14H5WA, 5CX 15H5WA, Centremount, Sideshift |
| Wheel Loaders | 403, 403 Stage V, 403SV A, 406, 406 SV, 406 T4, 407, 407 SV, 407 T4, 409, 409 SV, 409 T4, TM180, TM220, TM310, TM320, TM420, TM WASTEMASTER |
| Military Products | 8018 CTSM, 436eM, 535-95, 541-70M, HMRTF, VM115 ADF |
| Rough Terrain Forklifts (RTFL) | 926 (2WD/4WD, Tier 2/4, SV), 930 (2WD/4WD, Tier 2/4, SV), 940 (2WD/4WD, Tier 2/4, SV), 945-4, 950-4WD |
| Wheeled Excavators | HYDRADIG 110W (Wastemaster, Triple Articulated Boom, T4 Final, SV), JS130 WHEELED, JS145 WHEELED, JS160 WHEELED, JS175 WHEELED, JS200 WHEELED, JS20 MH |
| Tracked Excavators (JS) | 140X, 150X, JS110, JS115, JS130, JS131, JS140, JS145, JS160, JS180, JS190, JS200, JS210, JS220, JS235, JS240, JS260, JS290, JS330, JS360, JS460, JS81, JZ140, JZ235, JZ70, JZ141 |
| Mini Excavators | 100C-1, 100C-2, 15C-1, 16C-1, 18Z-1, 19C-1, 25Z-1, 26C-1, 35Z, 36C-1, 37C, 48Z-1, 50Z-1, 51R-1, 55Z-1, 56Z-2, 57C-1, 60C-2, 65R-1, 67C-1, 85Z-1, 86C-1, 90Z-1, 8010, 8014, 8016, 8018, 8020, 8025, 8026, 8029, 8030, 8035, 8040, 8045, 8050, 8055, 8060, 8065, 8080, 8085 |
| Compaction Equipment (Vibromax VM) | JCB116, VM117, VM137, VM115, VM46, VM75, VMT860 |
| Generators & Lighting Towers | G50R, G55, G60RX, G61RX, G63, G65QX, G65X, G66QX, G80R, G80RX, G88, G90QX, G91QX |
| Engines (JCB) | Series 320/40xxx, 320/50xxx (Dressed Dieselmax, ecoMax) |
Filter fits a wide range of machines. Dimensions: H 375mm, OD 158mm, ID 94mm.
Filter 32/917804 is the outer (primary) element. It typically works with an inner (safety) filter, which should also be replaced periodically (e.g., every third primary filter change). We recommend replacing the set in high dust conditions.
Never clean the air filter with compressed air unless absolutely necessary, and if so, do it very carefully. Damage to the paper structure is invisible to the naked eye but allows dust through, which destroys the engine (so-called cylinder "grinding"). It is safer to replace the filter with a new one.
The air filter supplies clean air for the combustion process.
📞 Can't find the part you're looking for?
No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!
In two-stage systems, the outer (larger) filter traps major contaminants. Inside it is a smaller (inner/safety) filter, which protects the engine if the main filter fails or during its replacement.
Replace the filter according to manufacturer recommendations (e.g., every 500-1000 hrs) or when the filter restriction indicator lights up. In very dusty conditions, replacement may be necessary much more often, even daily.
The JCB DieselMax engine, in which this filter is used, is famous for breaking the land speed record for diesel-powered vehicles. The JCB Dieselmax streamliner reached a speed of over 563 km/h! Of course, the production version in excavators has different characteristics, but shares the same durability DNA.
Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.
