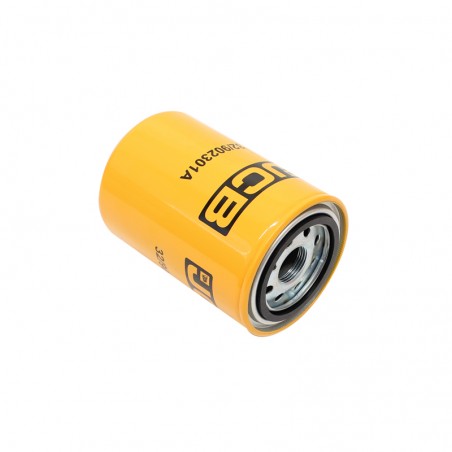

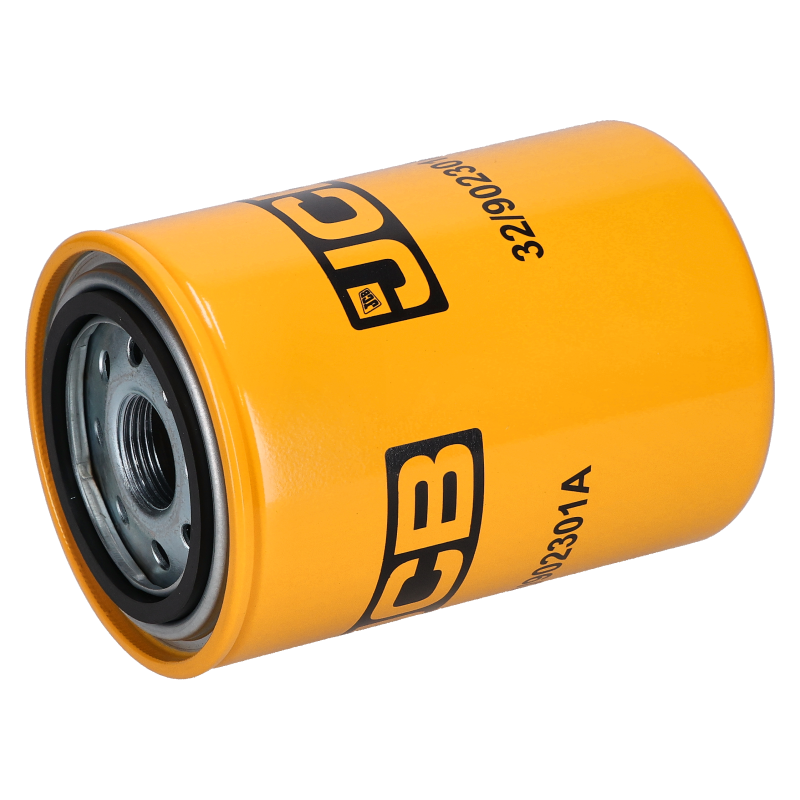

Hydraulic filter 25 mic suitable for JCB Telehandlers
JCB

Hydraulic filter 25 mic suitable for JCB Telehandlers

Catalog number:SKX821175D Nr OEM:32/902301 Manufacturer:JCB
Add a review

25 µm hydraulic oil filter suitable for JCB loaders – 333/C4690 / 32/920002

Technical Specifications & Compatibility

Genuine JCB spin-on hydraulic filter rated at 25 µm. Protects pumps, valves and cylinders by maintaining oil cleanliness under heavy-duty operation.

Part numbers: 333/C4690
Alternate notations: 333C4690, 333-C4690, 32920002, 32-920002, 32-902302, 32-902301A, 32-902300, 5E 5754, 3I 1810
Type: Spin-on hydraulic filter, 25 µm
Port thread: G 3/4" (BSP)
Outer dimensions: height ~144–148 mm; OD ~96–99 mm; seal OD ~71 mm
System location: return-line / low-pressure filtration (depends on machine version)

Genuine JCB product — factory-matched performance and fitment in JCB hydraulic systems.

Machine Applications

Brand (Machine type) Model
JCB (Telehandlers) Loadall – broad range (depending on hydraulic version)
JCB (Wheel loaders) Selected JCB wheel loader models
JCB (RTFL forklifts) Rough Terrain Forklift – RTFL (selected versions)

Indicative list. Confirm your part number and G 3/4" thread against the fitted unit.

Functions & Benefits

  • Particles control to 25 µm — safeguards pumps and valves.
  • Stable differential pressure — maintains hydraulic performance.
  • Seal materials compatible with high-quality hydraulic oils.
  • Quick spin-on service — reduced downtime.
  • Dimensional compatibility with JCB heads (G 3/4" BSP).

🔧 Expert Guide: Key Installation Tips

1. Keep it clean

Clean the head and surroundings before removal to prevent dirt ingress.

2. Oil the gasket, hand-tighten

Lubricate the seal with fresh oil; tighten by hand ~3/4 turn after seal contact.

3. Bleed & check

After replacement, idle the engine and cycle the implements; verify for leaks.

4. Intervals & oil quality

Follow OEM intervals and use suitable HYPTRON hydraulic oil. Consider pre-filtering with REDX accessories.

⚠️ Safety Warning

Do not run the machine with a bypassed or leaking filter. Contamination can rapidly damage pumps and valves.

Role in the Machine & Failure Diagnostics

The filter removes abrasive contamination from the oil circuit. Clogging or damage increases failure risk and heat generation.

  • Frequent bypass light / rising oil temperature.
  • Pump noise, slower implement speeds.
  • Crushed can or leaking seal — risk of air ingestion.
  • Accelerated wear of valves/cylinders — overdue replacement.

Peace of Mind: Why Choose SERWIS-KOP?

Avoid downtime from contaminated oil — fit genuine filtration and stay productive.

Part 333/C4690 / 32/920002 is in stock. We’ll match the correct filter to your serial number and dispatch fast.

📞 Not finding the exact variant?

We display only a portion of our range — over 60,000 parts available. Call us and we’ll confirm fitment and ship promptly.

Related Items

  • › HYPTRON hydraulic oil — match viscosity to ambient conditions (e.g., ISO 46).
  • › Head seal / O-ring — replace at each service.
  • › REDX pre-filters / funnel screens — reduce contamination during top-ups.

Frequently Asked Questions (FAQ)

1. Common cross-refs?

3I1810 / 5E5754 (CAT), P171602 (Donaldson), W940.51 / W941 (MANN), P550268 / HF7983 (Fleetguard), SH76855 (HIFI).

2. Is the thread always G 3/4"?

Yes for this JCB family — confirm against the head on your machine.

3. Safe replacement interval?

Follow OEM schedule; shorten in harsh duty and monitor bypass/pressure drop.

4. Symptoms of a clogged filter?

Bypass indication, rising oil temperature, pump noise, slower implements.

5. Is 25 µm adequate?

Yes for return-line filtration. For sensitive proportional systems consider supplemental offline filtration.

Question mark

Need help confirming fitment? Call: +48 17 864 31 00 — we’ll match the correct filter and ship fast.

JCB
SKX821175D
32/902301
0.72 kg

Data sheet

SUITABLE FOR
CAT
JCB
MACHINE TYPE
TELESCOPIC HANDLER
TELETRUK
WHEELED LOADER
OEM NUMBERS
32/920002 / 333/C4690 / 32/902302 / 32/902301A / 32/902300 / 5E5754 / 5E-5754 / 3I1810 / 3I-1810
OUTER DIAMETER (MM)
96
INNER DIAMETER (MM)
71
HEIGHT (MM)
144

Specific References

MPN
32/902301
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Hydraulic filter 25 mic suitable for JCB Telehandlers

Catalog number: SKX821175D
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

110.09 zł

net price
89,50 zł
Available in large quantity Temporarily unavailable
89,50 zł
net price

110.09 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 9 points, it gives you 3.60 zł
  • Lowest price from 30 days before the discount: 110.09 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    JCB
    MACHINE TYPE
    TELESCOPIC HANDLER
    TELETRUK
    WHEELED LOADER
    OEM NUMBERS
    32/920002 / 333/C4690 / 32/902302 / 32/902301A / 32/902300 / 5E5754 / 5E-5754 / 3I1810 / 3I-1810
    OUTER DIAMETER (MM)
    96
    INNER DIAMETER (MM)
    71
    HEIGHT (MM)
    144
