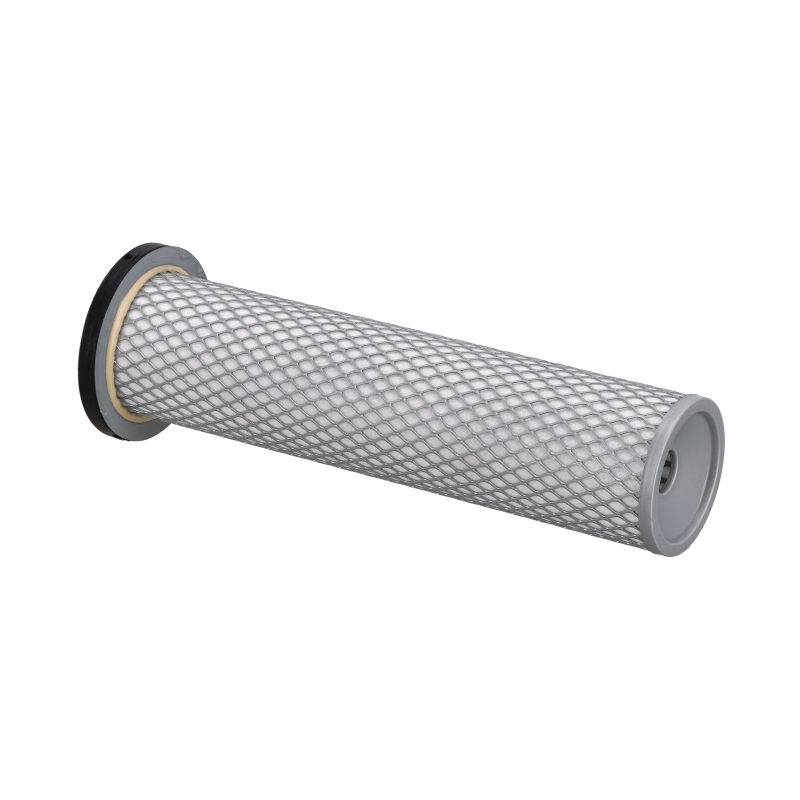

Internal air filter suitable for JCB 3C 3D Chargers
REDX

Internal air filter suitable for JCB 3C 3D Chargers

Catalog number:SKX1013957RX Nr OEM:32/203703 Manufacturer:REDX
Add a review

INNER AIR FILTER SUITABLE FOR JCB - 32/203703

Specification & Compatibility

Product: Inner (Safety) Air Filter
Producer: REDX
Dimensions: Height: 281 mm, Outer Ø: 93/74 mm, Inner Ø: 63 mm
Application (Older models with Leyland LD/LH/LJ engine):
JCB Backhoe Loaders

3C, 3D, 3CX, 4CX

Other JCB Machines

Telescopic Handlers, Wheeled Loaders

Part Number: 32/203703
Part Type: High-quality replacement

Frequently Bought Together

REDX Outer Air Filter (No. 32/203702 - replacing as a set is recommended)
HYPTRON Engine Oil (recommended for Leyland engines)

What does this part do and what are the symptoms of wear?

The inner air filter, also known as the safety filter, is the last and most important line of defense for the engine. Its job is to capture the finest dust that could get past a damaged outer filter. While its wear doesn't give immediate symptoms like black smoke or power loss, its failure or absence leads to the silent death of the engine. Even a small amount of silica dust entering the cylinders acts like sandpaper, destroying pistons, rings, and the turbocharger.

Parameters That Guarantee Reliability

🛡️

Ultimate Engine Protection

Filtration of the finest particles

💪

Reinforced Construction

Resistant to moisture and vibrations

🎯

Perfect Fit

Guaranteed 100% seal

Why Choose Our REDX Filter?

Precise Manufacturing

The accuracy and quality of materials guarantee long and trouble-free use without the need for frequent replacement.

Compatibility with Original Parts

The filter is fully adapted to work with the outer filter and the original housing, ensuring the integrity and stability of the entire system.

Savings Without Compromise

The REDX brand is a proven and safe alternative that offers filtration quality comparable to original parts at a much better price.

Important Fitting / Service Tips

1.Always Replace Both Filters

The inner (safety) and outer (primary) filters should always be replaced at the same time to ensure complete engine protection.

2.Check the Intake System for Leaks

After replacing the filters, ensure the filter housing is properly closed and all intake hoses are sealed. A leak after the filter means dirty air is entering the engine.

3.Handle with Care During Installation

When inserting the new inner filter, maintain maximum cleanliness and ensure that no contaminants get inside the housing.

Frequently Asked Questions (FAQ)

Question: How often should I replace the inner filter?

Answer: The inner filter is always replaced with the outer filter, typically every 500-1000 operating hours, depending on the manufacturer's recommendations and working conditions.

Question: Can I blow out and reuse the old inner filter?

Answer: Absolutely not. The inner filter is disposable. Blowing it with compressed air destroys its structure and filtering ability, which is equivalent to having no engine protection.

Question: Can I operate without the inner filter?

Answer: It is extremely dangerous for the engine. Even short-term operation without the safety filter risks dust entering the cylinders and leads to irreversible damage.

Question mark

If you are unsure whether the selected product is suitable for your machine, contact us and we will help you choose the right part and provide practical advice in minutes.

SKX1013957RX
32/203703
0.23 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
BACKHOE LOADER
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
32/203703
ENGINE
PERKINS
OUTER DIAMETER (MM)
74
93
INNER DIAMETER (MM)
63
HEIGHT (MM)
281

Specific References

MPN
32/203703
