Washer / Spacer for pivot - 82x51x1.0
GX-AFTER

Washer / Spacer for pivot - 82x51x1.0

Catalog number:SKX829970A1 Nr OEM:P82X51X1.0 Manufacturer:GX-AFTER
Add a review

Pin Shim 50mm JCB 82x51x1mm - 823/00220

Technical Specification and Compatibility

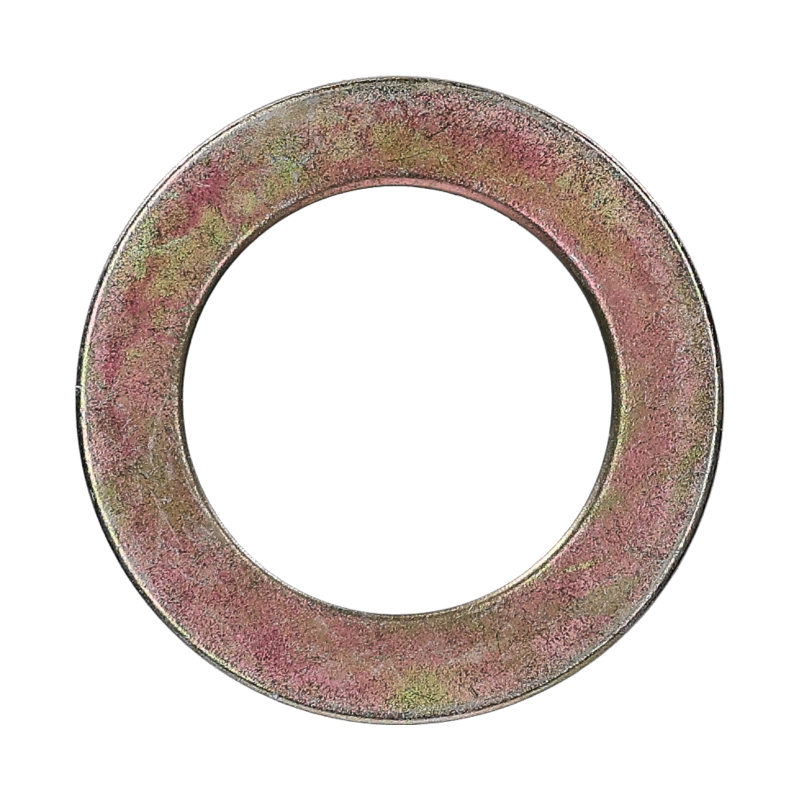

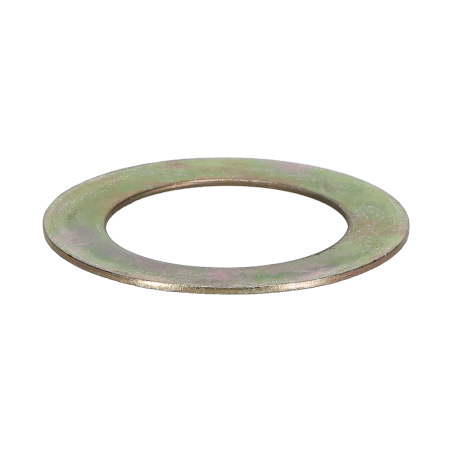

Shim washer with part number 823/00220 from the GX-AFTER offer. It is a steel ring with dimensions 82 x 51 x 1.0 mm, designed to eliminate axial play on 50 mm diameter pins. Commonly used in the kinematic systems of JCB machines (JS excavators, backhoe loaders, loaders), in places such as the bucket-to-arm connection, kingpost, or cylinders.

Part Number: 823/00220
Component Type: Shim / Spacer
Inner Diameter: 51 mm (for 50 mm pin)
Outer Diameter: 82 mm
Thickness: 1.0 mm
Material: Hardened Steel
Manufacturer: GX-AFTER

GX-AFTER precision shims are essential for proper attachment installation. Thanks to the use of high-grade steel, they are resistant to abrasion and crushing, which allows for long-term maintenance of the rigidity of pin connections.

Features of GX-AFTER 823/00220 Shim

Play Elimination: Allows precise removal of side play between the bucket ear and the arm, which prevents knocking and accelerated pin wear.
Seal Protection: Correctly selected spacer prevents crushing of dust seals (O-rings or lip seals) by working elements.
Pressure Resistance: Steel of appropriate hardness does not undergo plastic deformation under the influence of huge forces occurring in the excavator system.
Versatility: Standard dimension for 50mm pins makes the shim fit many JCB machine models and other manufacturers.

Application in JCB machinery

Category Application
Crawler Excavators JCB JS 130, JS 145, JS 160, JS 180, JS 200, JS 220 (Bucket pins, link - where 50mm dia exists)
Backhoe Loaders 3CX, 4CX (Nodes with increased pin diameter, e.g., rear arm in some Heavy Duty versions)
Loaders Loadall telehandlers (Cylinder pins, frames - verify by dimension)

The shim fits any 50 mm diameter pin where axial play reduction is required.

Related Parts and Hardware

The shim is a mounting element for 50mm pins. When regenerating the connection, it is worth also replacing sliding bushings and dust seals (O-rings) to ensure long node operation.

⚠️ Operational Warning

Leaving too much side play on the bucket pin causes impacts during operation ("clapping"), which drastically accelerates the wear of bushings and sockets in the arm. Using shims is a cheap way to avoid expensive arm re-sleeving.

Part Role in the Machine and Failure Diagnostics

Shim 823/00220 fills the space between the attachment ear and the machine arm.

  • › Noise during operation (axial play, lack of shims).
  • › Grease leak (shim does not press the seal).
  • › Rapid bush wear (uneven force distribution).
  • › Arm surface wear (metal-on-metal friction without spacer).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Thickness Selection: Always have shims of different thicknesses handy (e.g., 1mm, 2mm, 3mm). This allows for a perfect "tight" fit of the pin, leaving minimal play for lubrication.
  2. Order: Shims are usually installed between the arm ear and the bucket ear, often protecting rubber dust seals with them.
  3. Greasing: After installing and eliminating play, grease the pin abundantly. Grease must flow out through the gaps, creating a protective barrier.

Technical FAQ and Trivia

What pin does it fit?

The shim has an internal diameter of 51 mm, so it is ideal for pins with a nominal diameter of 50 mm. This ensures 1 mm of mounting clearance.

What is the thickness?

This specific model is 1.0 mm thick. It serves to precisely eliminate small clearances. Other thicknesses are also available for larger adjustments.

Trivia about play

Did you know that an axial play on a pin of just 2 mm can cause a knocking sound audible within a radius of several dozen meters? This is because the metal structure of the excavator arm acts like a resonance box, amplifying every impact.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX829970A1
P82X51X1.0
0.01 kg

Data sheet

SUITABLE FOR
CAT
JCB
MACHINE TYPE
BACKHOE LOADER
MINIEXCAVATOR
TELESCOPIC HANDLER
WHEELED LOADER
OEM NUMBERS
823/00220 / P82X51X1.0
OUTER DIAMETER (MM)
82
INNER DIAMETER (MM)
51
HEIGHT (MM)
1

Specific References

MPN
P82X51X1.0
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Washer / Spacer for pivot - 82x51x1.0

Catalog number: SKX829970A1
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

2.46 zł

net price
2,00 zł
Available in large quantity Temporarily unavailable
2,00 zł
net price

2.46 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 1 points, it gives you 0.40 zł
  • Lowest price from 30 days before the discount: 2.46 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CAT
    JCB
    MACHINE TYPE
    BACKHOE LOADER
    MINIEXCAVATOR
    TELESCOPIC HANDLER
    WHEELED LOADER
    OEM NUMBERS
    823/00220 / P82X51X1.0
    OUTER DIAMETER (MM)
    82
    INNER DIAMETER (MM)
    51
    HEIGHT (MM)
    1
