Valve check - Track Greaser suitable for JCB JS excavators
GX-AFTER

Valve check - Track Greaser suitable for JCB JS excavators

Catalog number:JRA0233A Nr OEM:JRA0233 Manufacturer:GX-AFTER
Add a review

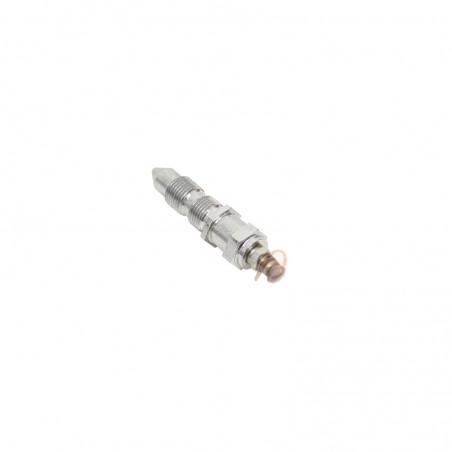

TRACK TENSIONER VALVE (GREASE NIPPLE) SUITABLE FOR JCB JS - JRA0233

Technical Specification and Compatibility

A precision grease control valve (grease nipple) for the track tensioning system. It is a key safety component that allows for the controlled injection of high-pressure grease to tension the track, as well as its safe release to loosen it. Made from high-grade steel to withstand extreme operating pressure.

Part number: JRA0233
Alternative part numbers: KHA0027, KHA0029, KHA0028, KAA0337

Aftermarket quality product – an intelligent choice combining excellent quality with an attractive price.

Application in machines

Brand (Machine Type) Model
JCB (Tracked Excavators) JS110, JS115, JS130, JS145, JS150, JS160, JS180, JS190, JS200, JS210, JS220, JS235, JS240, JS260, JS290, JS300, JS330, JS360, JS370, JS460, JS500

The list above is for reference. We recommend verifying the thread type on your machine before purchasing.

Service Recommendation: Ensure Maximum Lifespan

Only use high-quality, thick grease, such as HYPTRON, for track tensioning. It will ensure the proper functioning of the system and protect the cylinder from corrosion. A valve failure is a good time to inspect the entire undercarriage – check out our range of KERTRACK rollers and sprockets.

Part's Role in the Machine and Failure Diagnostics

The tensioner valve is a small but extremely important component that allows you to maintain correct track tension. A track that is too loose can de-track, causing downtime. A track that is too tight leads to cascading, accelerated wear of all expensive undercarriage components.

A faulty valve makes adjustment impossible. Replace it if:

  • You cannot pump grease in – the valve is blocked or damaged.
  • Grease leaks back through the nipple – the internal check valve is not holding pressure.
  • The track loosens on its own – system pressure is dropping due to a leaking valve.
  • You cannot loosen the track – the release mechanism in the valve is seized or damaged.
  • The thread or the head of the nipple is physically damaged.

Peace of Mind Guarantee: Why Choose Our Offer?

✓ Full Control Over Your Undercarriage: The Smart Choice with GX-AFTER

Even the smallest parts affect the lifespan of the entire machine. By choosing a GX-AFTER replacement, you get a product with parameters compliant with the original, which will restore full control over the crucial track tensioner system. It's a smart choice that prevents serious and costly undercarriage failures.

A faulty tensioner is a direct path to a destroyed track!

Don't risk downtime and expensive repairs of the entire undercarriage. **Order a new valve, replace this small component, and work without worrying about the condition of your tracks.**

Expert's Guide: Key Installation Tips

  1. SAFETY FIRST: The tensioner system is under extremely high pressure! Before starting work, very slowly and carefully loosen the valve to release the grease and reduce track tension.
  2. Never stand in line with the valve: When loosening and tensioning, always stand to the side. A sudden release of grease under pressure can cause serious injury. Always wear safety glasses.
  3. Clean the housing thread: Before screwing in the new valve, thoroughly clean the thread in the tensioner cylinder to ensure a perfect seal.
  4. Tighten with care: Screw in the new valve until you feel resistance, then tighten it with a wrench to ensure it's sealed, but do not overtighten and strip the thread.

Frequently Asked Questions (FAQ)

1. Why is grease leaking back out after I disconnect the grease gun?

This means the internal check valve in the nipple, which is responsible for holding pressure, has failed. The valve must be replaced immediately.

2. The track is very tight, and grease won't come out after loosening the valve. What should I do?

This could mean the release channel is clogged or the mechanism is damaged. This is a very dangerous situation. Work should be stopped, and an experienced mechanic should be consulted. Do not attempt to hammer or heat the valve yourself.

Key Advantages

🛡️

Service Safety

Reliable operation under high pressure.

🎯

Precise Adjustment

Allows setting the perfect track tension.

📦

Undercarriage Protection

Prevents accelerated wear of components.

Question mark

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

JRA0233A
JRA0233
0.09 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
JRA0233

Specific References

MPN
JRA0233
