• Bucket Tooth 1U3352 (CAT J350 System) for Caterpillar, JCB
  • Tooth Bucket - J350 LONG TIP

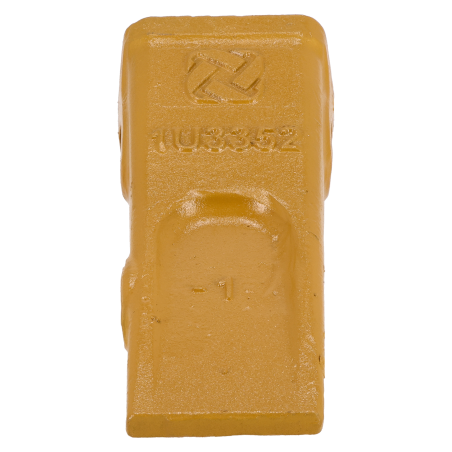

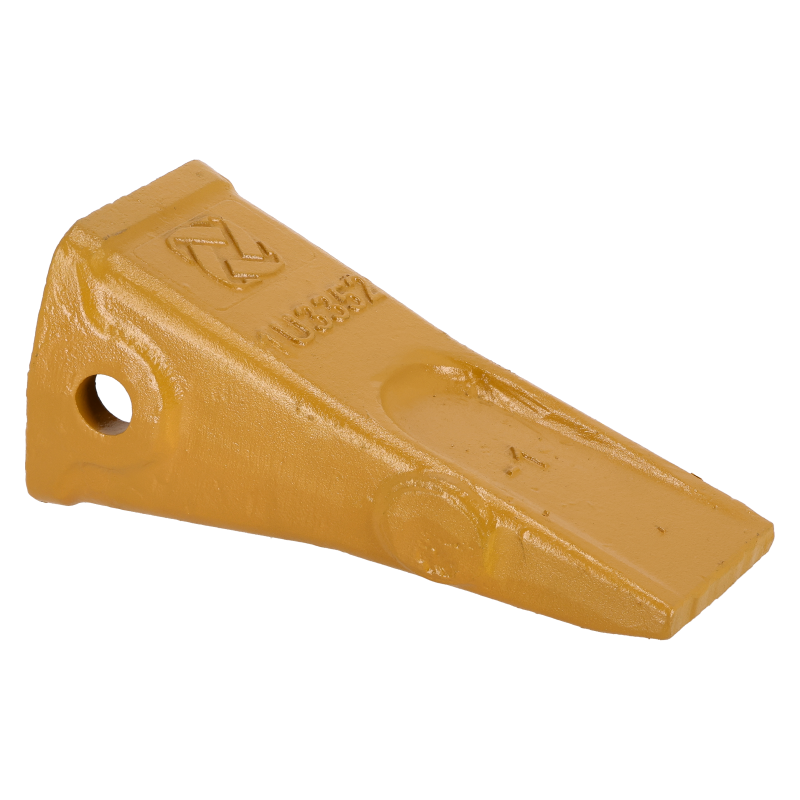

Tooth Bucket - J350 LONG TIP
HIMACORE

Tooth Bucket - J350 LONG TIP

Catalog number:SKX1004688HM Nr OEM:1U3352 Manufacturer:HIMACORE
Add a review

BUCKET TOOTH (CAT J350 SYSTEM) SUITABLE FOR CATERPILLAR, JCB - 1U3352

Technical Specification and Compatibility

An essential bucket working component – a durable aftermarket tooth for the popular CATERPILLAR J350 system. This is a standard dirt tooth profile, designed for general earthmoving, digging, and loading. The tooth is mounted on a weld-on adapter (e.g., 6I6354) using a side pin and retainer. High-grade cast steel ensures high resistance to abrasion. It is widely used on machines from various manufacturers (CAT, JCB, Komatsu, Case, etc.) that utilize the J350 system.

Part number: 1U3352
System: CAT J350
Profile: Standard (Dirt Tooth)
Mounting: On Adapter

GX-AFTER is the smart choice for your machine. We provide high-class replacement parts that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and reliability you can depend on.

Required for Installation

  • › Side Pin: Part no. 9J2358 (sold separately)
  • › Sleeved Retainer: Part no. 8E6359 (sold separately)
  • › J350 Adapter: Required for mounting the tooth.

Application in machines

Brand Type / Series / Model
Universal Any machine (Caterpillar, JCB, Bobcat, Takeuchi, John Deere, Case, Komatsu, Kubota, ESCO, Hensley, H&L) equipped with a J350 adapter system.

The list above is for reference. It is crucial to verify the tooth system (J350) on your bucket's adapter.

⚠️ Installation Warning

When installing or removing teeth (knocking out pins), always wear safety glasses and use a proper hammer and punch. Metal fragments or retainers can fly off and cause serious eye injury.

Part's Role in the Machine and Failure Diagnostics

The tooth is the main working part of the bucket that comes into direct contact with the ground. A worn tooth leads to decreased digging performance, increased resistance, and higher fuel consumption. A worn tooth also puts extra stress on the adapter, leading to its failure.

  • › Visible wear and rounding of the working tip.
  • › Cracks or complete breakage of the tooth.
  • › Losing teeth (due to damaged or worn 9J2358/8E6359 retainers).
  • › Play on the adapter (worn tooth socket or worn adapter nose).

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Clean the adapter: Before installation, thoroughly clean the adapter nose of dirt, rust, and old retainer fragments. Contamination will cause a poor fit and tooth loss.
  2. Always use new hardware: Never reuse old pins (9J2358) or retainers (8E6359). They are single-use items that lose their locking properties.
  3. Check seating: After placing the tooth, ensure it is fully seated on the adapter nose before driving in the pin.
  4. Retainer installation: In the CAT J-series system, the pin and retainer are installed from the side. Ensure the retainer is properly seated in its groove.

Frequently Asked Questions (FAQ)

1. What does "J350 System" mean?

J350 is the size designation for a popular CATERPILLAR tooth system. It is an intermediate size, larger than the J300 (used on backhoes) and smaller than the J400. It is used on mid-sized excavators and loaders (approx. 25-35 ton class).

2. Will this tooth fit a J300 or J400 adapter?

No. The CAT J-Series tooth systems are not interchangeable between sizes. A J350 tooth will only fit a J350 adapter and requires J350 hardware (9J2358/8E6359).

3. Why is it important to replace worn teeth?

Working with worn, "rounded" teeth drastically increases digging resistance. This leads to higher fuel consumption, slower work, and places enormous stress on the adapters, cutting edge, and the arm's pins and bushings, accelerating their wear.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX1004688HM
1U3352
6.20 kg

Data sheet

SUITABLE FOR
ATLAS
BOMAG
CASE
CAT
DOOSAN DAEWOO
HIDROMEK
HYUNDAI
JCB
KOBELCO
KOMATSU
LIEBHERR
LIU GONG
NEW HOLLAND
TEREX
VOLVO
MACHINE TYPE
EXCAVATOR
OEM NUMBERS
1U3352

Specific References

MPN
1U3352
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Tooth Bucket - J350 LONG TIP

Catalog number: SKX1004688HM
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

79.95 zł

net price
65,00 zł
Available in large quantity Temporarily unavailable
65,00 zł
net price

79.95 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 7 points, it gives you 2.80 zł
  • Lowest price from 30 days before the discount: 79.95 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    ATLAS
    BOMAG
    CASE
    CAT
    DOOSAN DAEWOO
    HIDROMEK
    HYUNDAI
    JCB
    KOBELCO
    KOMATSU
    LIEBHERR
    LIU GONG
    NEW HOLLAND
    TEREX
    VOLVO
    Show more
    MACHINE TYPE
    EXCAVATOR
    OEM NUMBERS
    1U3352
