Plate brake friction suitable for CASE
GX-AFTER

Plate brake friction suitable for CASE

Catalog number:120488C2 Nr OEM:120488C2 Manufacturer:GX-AFTER
Add a review

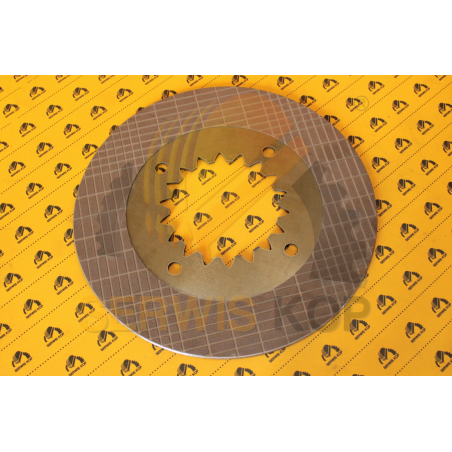

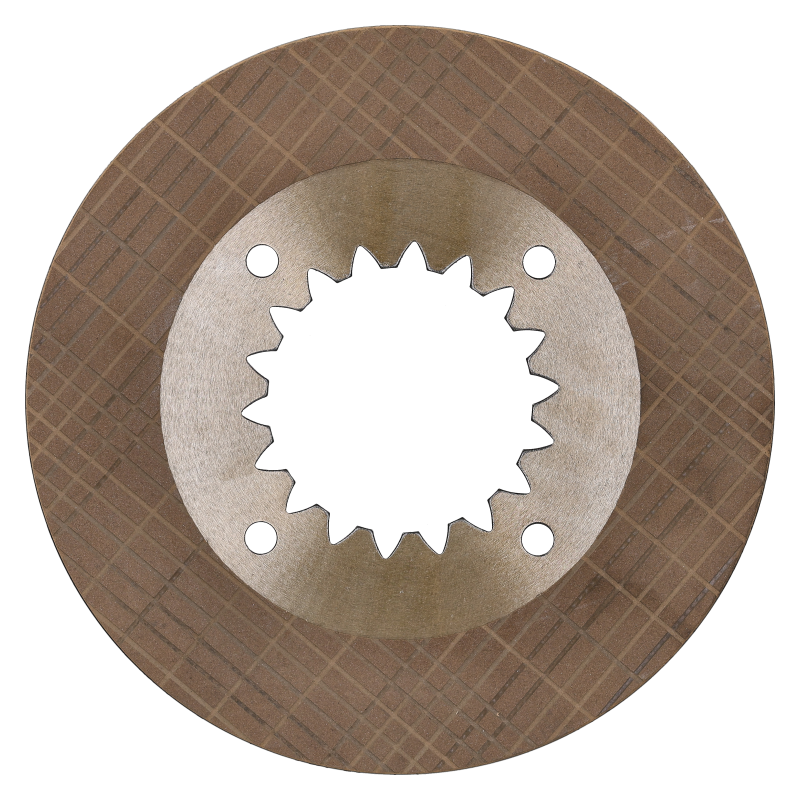

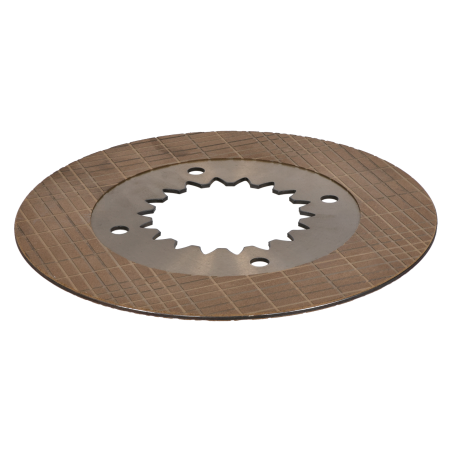

Brake Friction Disc (305mm / 18 Teeth) suitable for CASE - 120488C2

Technical Specification and Compatibility

Large-size 120488C2 friction disc from the GX-AFTER range, designed for wet brake systems in heavy CASE machinery. Made of advanced FP (Friction Paper) material, ensuring an optimal friction coefficient. The working surface features a WAFFLE groove structure, guaranteeing effective heat dissipation. The disc is characterized by a large outer diameter of 305 mm and mounting on 18 teeth.

Part Number: 120488C2
Type: Wet Brake Disc / Friction Plate
Outer Diameter: 305 mm
Inner Diameter: 108 mm
Thickness: 4.9 mm
Tooth Count: 18 (Internal / INT TH)
Material: FP (Paper/Cellulose Composite)
Groove Pattern: WAFFLE

GX-AFTER is the smart choice for your machine. We provide high-class replacements that combine excellent quality with an attractive price. Each part is carefully verified to ensure full compatibility and brake system reliability.

Features of GX-AFTER 120488C2 Disc

Waffle Grooving: The grid pattern of cuts perfectly stores the oil film and facilitates its circulation, preventing fading (loss of braking) at high temperatures.
FP Material: Cellulose fiber-based composite ensures quiet operation (no squeaking) and smooth braking characteristics without jerking.
Solid Spline: 18 large internal teeth guarantee secure transmission of high torques from the shaft to the disc.
Dimensional Stability: Precise thickness of 4.9 mm is crucial for maintaining proper clearance in the brake pack.

Application in machinery

Brand Machine Type
CASE / CASE IH Backhoe Loaders, Agricultural Tractors (check axle dimensions)
New Holland Selected construction machinery models

Due to the variety of axles, verification of dimensions (305mm x 108mm x 18 teeth) is necessary before purchase.

Related Parts and Hardware

The friction disc works in a set with steel counterplates. When overhauling brakes, it is recommended to replace the entire set (friction + steel), piston seals, and fill the axle with fresh UTTO class oil.

⚠️ Safety Warning

Wearing the friction lining down to "zero" causes metal-on-metal friction, which generates filings that destroy bearings and seals in the axle. Driving with faulty brakes is prohibited and endangers the operator and surroundings.

Part Role in the Machine and Failure Diagnostics

Disc 120488C2 generates braking torque by rubbing against stationary steel plates in an oil bath.

  • › Grinding noise from axle (complete lining wear).
  • › Weak braking force (glazing of FP material surface).
  • › Dark, burnt axle oil (brake overheating).
  • › Air in the system (large brake pedal travel).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Soaking: Discs with paper material (FP) must be soaked in clean transmission oil for min. 1 hour before installation. Installing "dry" will cause them to burn immediately.
  2. Oil Quality: Use only UTTO oil with additives for wet brakes. Ordinary gear oil can destroy the friction material.
  3. Axle Flushing: Thoroughly flush the axle of filings left from old discs so they do not damage new components.

Frequently Asked Questions (FAQ)

What is FP material?

FP (Friction Paper) is a modern composite material based on cellulose. It is standard in construction machinery, ensuring quiet operation and high efficiency in an oil bath.

Why does the disc have grooves?

Waffle-type grooving allows cooling oil to flow across the disc surface during braking, which prevents overheating and glazing.

Does it fit the 580K model?

The 580K model may use discs of different diameters or tooth counts depending on the year and axle type (Carraro vs Case). Measuring the old disc is necessary.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

120488C2
120488C2
0.00 kg

Data sheet

SUITABLE FOR
CASE
NEW HOLLAND
OEM NUMBERS
120488C2
OUTER DIAMETER (MM)
305
INNER DIAMETER (MM)
108
THICKNESS (MM)
4,9
NUMBER OF TEETH
18

Specific References

MPN
120488C2
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Plate brake friction suitable for CASE

Catalog number: 120488C2
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57a
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

55.97 zł

net price
45,50 zł
Available in large quantity Temporarily unavailable
45,50 zł
net price

55.97 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 5 points, it gives you 2.00 zł
  • Lowest price from 30 days before the discount: 55.97 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CASE
    NEW HOLLAND
    OEM NUMBERS
    120488C2
    OUTER DIAMETER (MM)
    305
    INNER DIAMETER (MM)
    108
    THICKNESS (MM)
    4,9
    NUMBER OF TEETH
    18
