Plate brake counter suitable for CASE
FEROSTEM

Plate brake counter suitable for CASE

Catalog number:SKX141537FM Nr OEM:237022A1 Manufacturer:FEROSTEM
Add a review

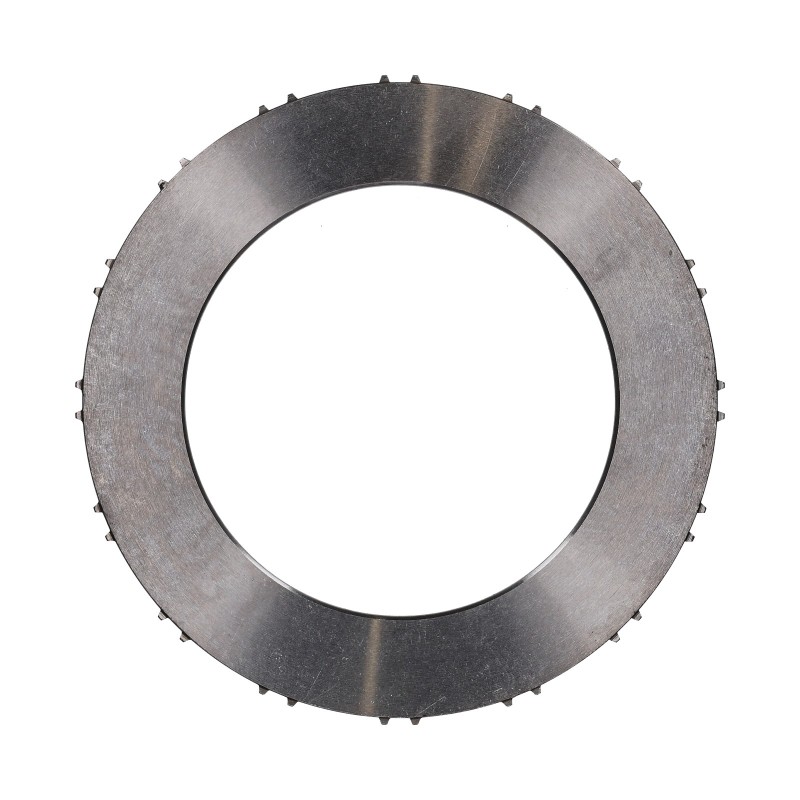

Thick Steel Brake Plate (10.8mm / 32 Teeth) for CASE - 237022A1

Technical Specification and Compatibility

237022A1 brake plate from the FEROSTEM offer. Dedicated to CASE and New Holland construction machinery. Distinguished by a significant thickness of 10.8 mm and a mounting system based on 32 external teeth.

Part Number: 237022A1
Outer Diameter: 230 mm
Inner Diameter: 152.5 mm
Thickness: 10.8 mm
Tooth Count: 32 (External / EXT)
Material: Structural Steel

FEROSTEM delivers brake system components that meet rigorous strength standards. Precise surface grinding and appropriate steel metallurgy ensure long-lasting and trouble-free operation of drive axles.

Features of FEROSTEM 237022A1 Plate

Increased Stiffness: The 10.8 mm thickness makes the plate extremely resistant to deformation under hydraulic piston pressure.
Heat Capacity: Large mass of steel acts as a heat sink, effectively absorbing and dissipating heat generated during sudden braking.
Tooth Geometry: 32 solid external teeth securely anchor the plate in the axle housing, preventing it from rotating.
Surface Flatness: Perfectly even working surface ensures uniform pressure on friction discs, translating into braking efficiency.

Application in machinery

Brand Machine Type
CASE Backhoe Loaders (e.g., 580, 590, 695 - check axle specs)
New Holland Backhoe Loaders (LB, B, NH series)

Before purchasing, verify the thickness (10.8 mm) and number of teeth (32). The same axles also use thinner plates (5 mm) with a different tooth count (64).

Related Parts and Hardware

The 237022A1 pressure plate works with a stack of friction discs and thinner steel separator plates. During axle service, it is also necessary to change the oil to a dedicated UTTO product.

⚠️ Safety Warning

A warped or scratched pressure plate causes uneven brake pack pressure. This can lead to wheel locking, axle overheating, and rapid destruction of new friction linings.

Part Role in the Machine and Failure Diagnostics

As the last element in the disc stack, plate 237022A1 receives direct pressure from the hydraulic piston or acts as a backing for the entire assembly.

  • › No brakes (excessive plate wear reducing stack height).
  • › Hub overheating (warped plate, not releasing).
  • › Noise during braking (uneven contact surface).
  • › Purple discoloration on steel (sign of overheating).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Thickness Measurement: This is a 10.8 mm plate. Do not confuse it with the standard 5 mm spacer. Using the wrong thickness will make assembly impossible.
  2. Flatness Check: Before installation, verify the plate is perfectly flat. Even minimal deformation is unacceptable.
  3. Mounting Direction: The end plate is usually installed first or last in the stack. Pay attention to the disassembly order.

Frequently Asked Questions (FAQ)

Why is this plate so thick?

It is an "End Plate". It needs to be rigid to not bend under hydraulic piston pressure and to evenly compress the entire disc pack.

Why does it have 32 teeth while others have 64?

Different components in the axle may have different splines to prevent incorrect assembly. This plate is dedicated to a 32-spline seat.

Do I need to replace it when changing discs?

Not always, but it is recommended. If the plate is scratched, overheated (purple), or warped, leaving it will destroy new friction discs.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX141537FM
237022A1
0.00 kg

Data sheet

SUITABLE FOR
CASE
NEW HOLLAND
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
237022A1 / 85808317
OUTER DIAMETER (MM)
230
INNER DIAMETER (MM)
152,5
THICKNESS (MM)
10,8
NUMBER OF TEETH
32

Specific References

MPN
237022A1
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Plate brake counter suitable for CASE

Catalog number: SKX141537FM
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

122.39 zł

net price
99,50 zł
Temporarily unavailable
99,50 zł
net price

122.39 zł

gross price
  • You will receive 10 points, it gives you 4.00 zł
  • Lowest price from 30 days before the discount: 122.39 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    CASE
    NEW HOLLAND
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    237022A1 / 85808317
    OUTER DIAMETER (MM)
    230
    INNER DIAMETER (MM)
    152,5
    THICKNESS (MM)
    10,8
    NUMBER OF TEETH
    32
