Plate brake friction suitable for Case
FEROSTEM

Plate brake friction suitable for Case

Catalog number:SKX193629FM Nr OEM:237017A1 Manufacturer:FEROSTEM
Add a review

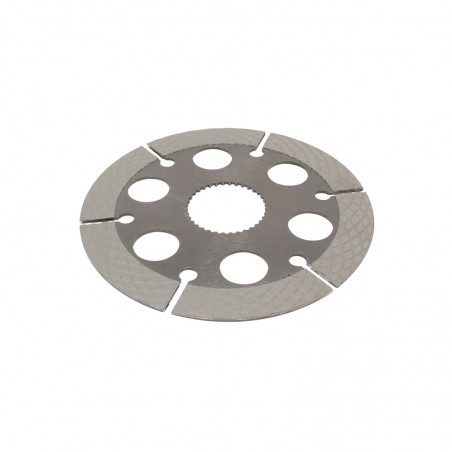

Brake Friction Disc (272mm / 36 Teeth) suitable for CASE / New Holland - 237017A1

Technical Specification and Compatibility

Specialized 237017A1 brake friction disc manufactured by FEROSTEM, a leader in friction material technology. This is a "wet" type disc, made of advanced Graphite composite, designed for operation in the oil bath of drive axles. Dedicated to CASE, New Holland, and Komatsu backhoe loaders.

Part Number: 237017A1
Alternative Number: CA0132690
Outer Diameter: 272 mm
Inner Diameter: 71.1 mm
Thickness: 4.9 mm
Tooth Count: 36 (Internal)
Friction Material: Graphite
Groove Pattern: Sunburst

FEROSTEM products are characterized by precise friction compound selection. The use of graphite ensures a stable friction coefficient and quiet operation (no squeaking), which is crucial for operator comfort and safety.

Features of FEROSTEM 237017A1 Disc

Graphite Technology: This material features excellent thermal resistance and ensures smooth braking characteristics without jerking.
Sunburst Grooving: A special radial groove pattern facilitates rapid oil evacuation from the contact surface, preventing fading and overheating.
Internal Spline: 36 precisely cut teeth guarantee secure torque transmission from the shaft to the disc.
Service Life: Resistance to abrasive wear in an oil environment ensures long intervals between replacements.

Application in machinery

Brand Machine Type
CASE Backhoe Loaders (e.g., 580L, 580M, 580N, 590, 695)
New Holland Backhoe Loaders (LB, B, NH series)
Komatsu Backhoe Loaders (WB series, e.g., WB93, WB97)
Fiat-Kobelco / Hitachi Select backhoe loader models

The list above is for reference. We recommend verifying dimensions (272mm x 71.1mm x 36 teeth) before purchasing.

Related Parts and Hardware

Friction discs work in a set with steel counter-plates. When replacing linings, it is also recommended to inspect or replace the steel plates and fill the axle with fresh UTTO/WB 101 oil.

⚠️ Safety Warning

Driving with worn brake discs drastically increases braking distance. Furthermore, complete wear of the friction material leads to "metal-on-metal" friction, contaminating the oil with filings and potentially causing permanent damage to expensive drive axle components.

Part Role in the Machine and Failure Diagnostics

The 237017A1 friction disc is the actuating element of the axle braking system, generating resistance by rubbing against steel plates.

  • › Grinding noise from axle when braking (worn to metal).
  • › Decreased braking power (glazing, overheating).
  • › Presence of black sludge or metal filings in axle oil.
  • › Brake pedal "sinking" (excessive gap between discs).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Soaking: Before installation, new graphite discs must be soaked in clean transmission oil (for min. 30 minutes) to prevent burning during first use.
  2. Oil: Use only oils dedicated to wet brakes (with anti-foam and LS additives). Wrong oil will destroy the discs.
  3. Plate Verification: Check that steel counter-plates are not warped or overheated (purple discoloration).

Frequently Asked Questions (FAQ)

What is "Sunburst" grooving?

It is a specific pattern of cuts on the lining, radiating outwards (like sun rays). It allows efficient flow of cooling oil across the disc during braking.

Are graphite discs better than paper ones?

Graphite material is more resistant to high temperatures and provides smoother operation than traditional paper or sintered linings, which is preferred in modern machines.

How many discs are needed per axle?

This depends on the specific axle model. Usually, it's packs of 3-5 discs per side. Please check the parts diagram for your machine.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX193629FM
237017A1
1.00 kg

Data sheet

SUITABLE FOR
CASE
KOMATSU
NEW HOLLAND
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
237017A1 / CA0132690
OUTER DIAMETER (MM)
272
INNER DIAMETER (MM)
71,1
THICKNESS (MM)
4,9
NUMBER OF TEETH
36

Specific References

MPN
237017A1
