Plate brake counter suitable for VOLVO - 11716580
FEROSTEM

Plate brake counter suitable for VOLVO - 11716580

Catalog number:SKX217537FM Nr OEM:11716580 Manufacturer:FEROSTEM
Add a review

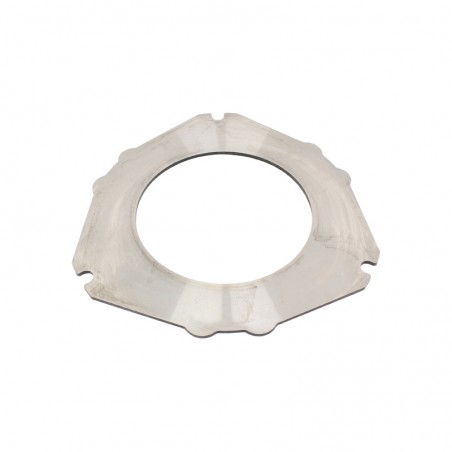

Steel Brake Counterplate (335.5mm / 3 Teeth) suitable for Volvo - 11716580

Technical Specification and Compatibility

Precisely manufactured 11716580 steel separator plate (counterplate) by FEROSTEM. This is a "stationary" element of the wet brake system, working together with friction discs. Designed for drive axles used in Volvo backhoe loaders. It features a large outer diameter of 335.5 mm and mounting via 3 external lugs (teeth), which lock it into the axle housing.

Part Number: 11716580
Component Type: Steel Separator Plate / Counterplate
Outer Diameter: 335.5 mm
Inner Diameter: 188.4 mm
Thickness: 5 mm
Tooth Count: 3 (External / EXT SL)
Material: Steel

FEROSTEM brake system parts are manufactured in accordance with strict OEM standards. Perfect surface flatness and appropriate steel hardness ensure effective heat dissipation and lack of vibration during braking.

Features of FEROSTEM 11716580 Plate

High-Grade Steel: Material resistant to thermal deformation (warping), which is crucial for maintaining braking efficiency under load.
Precise Cut: Perfectly dimensioned external lugs ensure the disc slides freely within the axle housing without jamming.
Surface Smoothness: Appropriate surface structure works with friction linings, ensuring optimal friction coefficient without excessive wear.
5mm Thickness: Massive construction allows for the absorption of a large amount of heat generated during braking of a heavy machine.

Application in Volvo machinery

Brand Machine Type
Volvo Backhoe Loaders (e.g., BL60, BL61, BL70, BL71)

The list is for reference. Please verify dimensions (335.5 mm OD and 3 teeth) before purchasing.

Related Parts and Hardware

The steel plate works in a stack with friction discs. When repairing the axle, it is recommended to replace the entire stack (steel + friction), piston seals, and fill the system with fresh UTTO oil.

⚠️ Safety Warning

Reinstalling overheated (purple discolored) or warped steel plates is unacceptable. This leads to brake dragging, overheating of the axle oil, and rapid burning of new friction discs.

Part Role in the Machine and Failure Diagnostics

The 11716580 steel plate is a stationary element (locked in the housing) against which the friction discs rub, creating the braking effect.

  • › Axle overheating (residual friction due to warped plates).
  • › Poor braking performance (surface too smooth/glazed).
  • › Noise during braking ("squealing").
  • › Deep scratches on the surface (visible after disassembly).

📞 Can't find the part you're looking for?

No worries. Our website features only a few thousand of the over 60,000 parts we have in stock. Contact us – we likely have what you need readily available!

🔧 Expert Guide: Key Installation Tips

  1. Flatness Check: Lay the new plate on a flat surface plate or glass to ensure it is perfectly straight.
  2. Housing Check: Inspect the grooves in the axle housing where the plate teeth fit. Indented grooves will prevent free plate movement, leading to brake binding.
  3. Cleanliness: Assemble components in sterile clean conditions. Even the smallest debris in the brake system can cause failure.

Frequently Asked Questions (FAQ)

Is this a friction disc?

No. This is a steel separator plate (counterplate). It does not have friction lining. Friction discs are mounted alternately with steel plates.

Why does it have 3 teeth?

The three external teeth serve to lock the disc in the axle housing so it doesn't rotate. It is a stationary element of the braking system.

How many pieces are needed?

The quantity depends on the specific axle model. Usually, there are several such plates per side in one axle. Check the parts catalog for your machine.

Question mark

Do you have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you select the right part to get your equipment back to work as quickly as possible.

SKX217537FM
11716580
0.10 kg

Data sheet

SUITABLE FOR
VOLVO
MACHINE TYPE
BACKHOE LOADER
OEM NUMBERS
VOE11716580 / 11716580
OUTER DIAMETER (MM)
335,5
INNER DIAMETER (MM)
188,4
THICKNESS (MM)
5
NUMBER OF TEETH
3

Specific References

MPN
11716580
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Plate brake counter suitable for VOLVO - 11716580

Catalog number: SKX217537FM
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

110.09 zł

net price
89,50 zł
Available in large quantity Temporarily unavailable
89,50 zł
net price

110.09 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 9 points, it gives you 3.60 zł
  • Lowest price from 30 days before the discount: 110.09 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    VOLVO
    MACHINE TYPE
    BACKHOE LOADER
    OEM NUMBERS
    VOE11716580 / 11716580
    OUTER DIAMETER (MM)
    335,5
    INNER DIAMETER (MM)
    188,4
    THICKNESS (MM)
    5
    NUMBER OF TEETH
    3
