Bucket 60cm suitable for JCB 8025/803/8035 mini excavator
HIMACORE

Bucket 60cm suitable for JCB 8025/803/8035, 1CX mini excavators

Catalog number:SKX825225HM Nr OEM:980/90471 Manufacturer:HIMACORE
Add a review

HIMACORE 60CM DIGGING BUCKET (S355) SUITABLE FOR JCB - 980/90471

Technical Specification and Compatibility

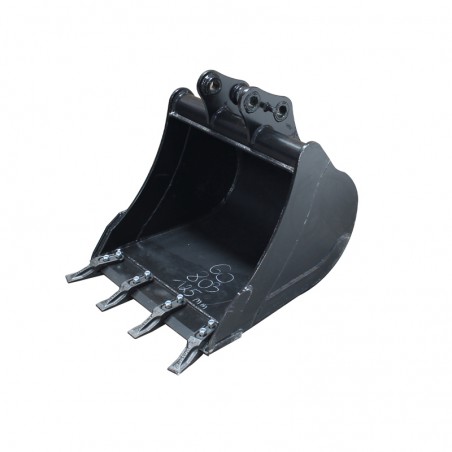

A robust, brand new 60 cm digging bucket, designed for JCB mini excavators (e.g., 8025, 8030, 8035) and the 1CX backhoe loader. The body is made from high-quality 5mm steel, and the cutting edge from S355 high-strength steel. The bucket features additional reinforcements: side cutters, side protectors (cheek plates), and bottom strengthening strips. It also has an elongated bottom profile for easier digging. The bucket is complete (with teeth and bushings, pins not included) and ready to work, manufactured in accordance with the ISO 7451 standard.

Part number: 980/90471
Width: 600 mm
Capacity: 112 L
Cutting Edge: S355 High-Strength Steel
Reinforcements: Bottom strips, side protectors, side cutters
Hitch Dimensions: Pin diameter 35 mm, Dipper width 135 mm, Pin centers 130 mm

HIMACORE specializes in providing the highest quality hydraulic parts for construction machinery. Our products, such as hydraulic pumps, motors, and valves, are designed for maximum performance and reliability in the toughest working conditions. By choosing HIMACORE, you are investing in the precision, durability, and operational certainty of your machine's hydraulic system.

Essential for Assembly

  • › Mounting pins (35 mm): The bucket does not include pins. They must be purchased separately.

Application in machines

Brand Type / Series / Model
JCB Backhoe Loaders: 1CX
Mini Excavators: 8025, 8026 CTS, 8027, 8030, 8032, 8035 ZTS

The list above is for reference. You must verify your dipper arm dimensions: 35 mm pin diameter, 135 mm arm width, and 130 mm pin centers.

⚠️ Safety Warning

Before mounting or dismounting the bucket, ensure the machine is on stable, level ground and the attachment is lowered to the ground. Always use certified lifting slings and ensure no one is in the working area of the attachment.

Part's Role in the Machine and Failure Diagnostics

The bucket is the primary working tool of a mini excavator. Its technical condition directly affects performance and operating costs. A worn or damaged bucket can lead to reduced efficiency and increased strain on the machine.

  • › Cracks in welds or plating, especially near reinforcements.
  • › Complete wear of the cutting edge and teeth.
  • › Ovalization (egging) of the pin holes, causing play.
  • › Deformation of the side plates or bottom of the bucket.

📞 Can't find the part you're looking for?

No problem. Our website shows only a few thousand of the over 60,000 parts we have in stock. Contact us – we probably have what you need on the shelf!

🔧 Expert's Guide: Key Installation Tips

  1. Check pins and bushings on the arm: Before mounting the new bucket, check the condition of the pins and bushings on the excavator arm. Any play in these areas will be transferred to the new bucket.
  2. Grease thoroughly: Before installation, generously grease the pins and bushings in the bucket with a suitable grease, such as HYPTRON.
  3. Secure pins correctly: Make sure the pins are properly secured against sliding out, according to the mounting system on your machine.
  4. Check movement: After installation, perform several full cycles of bucket movement to ensure there are no collisions with the arm or cylinder.

Frequently Asked Questions (FAQ)

1. What are "side cutters" and "bottom strengthening strips"?

These are additional reinforcements. Side cutters protect the side plates of the bucket from wear. Bottom strengthening strips are extra steel plates welded to the bottom of the bucket, which increase its rigidity and protect the main shell from wear.

2. What is the difference between an S355 and HB400 cutting edge?

S355 (or G2) is a high-strength structural steel, suitable for light-duty work. HB400 is a wear-resistant steel (approx. 400 Brinell hardness), which is significantly harder and more resistant to abrasion. This bucket features an S355 cutting edge.

3. Will this bucket fit a standard JCB 3CX?

Absolutely not. This bucket is for mini excavators and the 1CX (35 mm pins, 135 mm arm width). A standard JCB 3CX backhoe uses a much larger standard (45 mm pins, 175 mm arm width). The two systems are not compatible.

Znak zapytania

Have doubts or need confirmation to avoid costly downtime? Call us. Our experts will help you choose the right part to get your equipment back to work as soon as possible.

SKX825225HM
980/90471
75.00 kg

Data sheet

SUITABLE FOR
JCB
MACHINE TYPE
MINIEXCAVATOR
OEM NUMBERS
980/90471
WIDTH (MM)
600
NUMBER OF TEETH
4
PINS (MM)
35
ARM WIDTH (MM)
135
SPACING OF THE PINS (MM)
130

Specific References

MPN
980/90471
Łączna ocena:
0,0
Kupiłeś ten produkt? Napisz recenzję dla innych!
Be the first to write your review !
Opinion:
(0 opinions)

Write a review

Bucket 60cm suitable for JCB 8025/803/8035, 1CX mini excavators

Catalog number: SKX825225HM
Title for your review*
Your review*
Your name*
Your email*

Manufacturer

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100

Responsible person

  • Serwis Kop Sp. z o.o. Sp. K.
  • Podkarpacka 57A
  • 35-082 Rzeszów
  • Poland
  • [email protected]
  • +48178643100
gross price

1,494.45 zł

net price
1215,00 zł
Available in large quantity Temporarily unavailable
1215,00 zł
net price

1,494.45 zł

gross price
Nie możesz dodać więcej produktów
  • You will receive 122 points, it gives you 48.80 zł
  • Lowest price from 30 days before the discount: 1,494.45 zł
    PRODUCT SPECIFICATION
    SUITABLE FOR
    JCB
    MACHINE TYPE
    MINIEXCAVATOR
    OEM NUMBERS
    980/90471
    WIDTH (MM)
    600
    NUMBER OF TEETH
    4
    PINS (MM)
    35
    ARM WIDTH (MM)
    135
    SPACING OF THE PINS (MM)
    130
